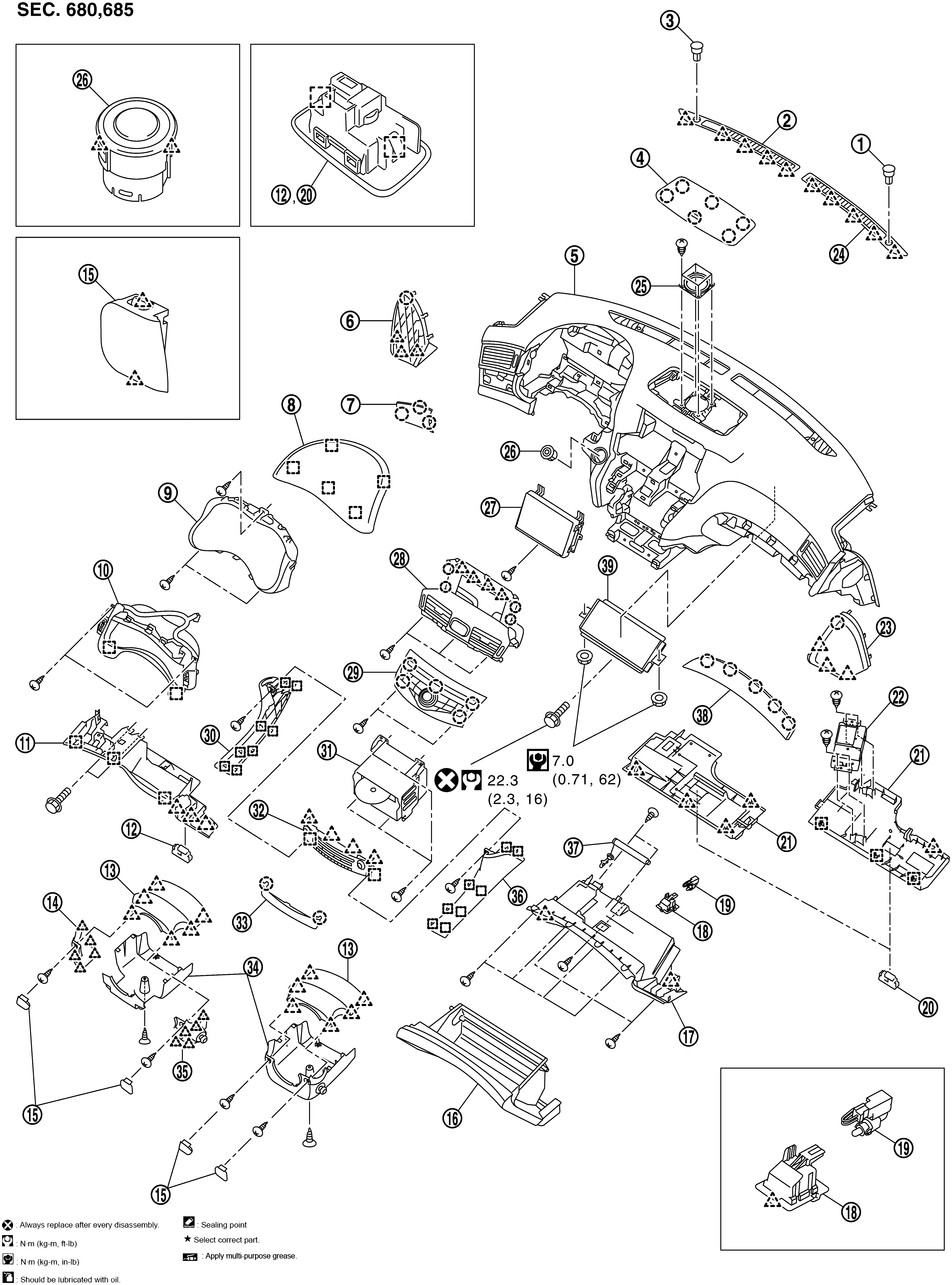

Exploded View
|
1. |
Optical sensor |
2. |
Front defroster grille LH |
3. |
Sunload sensor |
|
4. |
Upper ventilator grille |
5. |
Instrument panel assembly |
6. |
Instrument side finisher LH |
|
7. |
Instrument finisher A |
8. |
Cluster lid A (upper) |
9. |
Combination meter |
|
10. |
Cluster lid A |
11. |
Instrument lower panel LH |
12. |
Foot lamp LH |
|
13. |
Steering column upper cover |
14. |
Steering column side cover LH |
15. |
Steering column mask |
|
16. |
Glove box assembly |
17. |
Instrument lower panel RH |
18. |
Glove box lamp |
|
19. |
Socket and bulb |
20. |
Foot lamp RH |
21. |
Instrument lower cover |
|
22. |
TCU |
23. |
Instrument side finisher RH |
24. |
Front defroster grille RH |
|
25. |
Center speaker |
26. |
Push-button ignition switch |
27. |
Display unit |
|
28. |
Center ventilator assembly |
29. |
Cluster lid D |
30. |
Instrument side panel LH |
|
31. |
AV control unit |
32. |
Preset switch |
33. |
Cluster lid C |
|
34. |
Steering column lower cover |
35. |
Steering column side cover RH |
36. |
Instrument side panel RH |
|
37. |
Glove box dumper |
38. |
Instrument finisher B |
39. |
Passenger air bag module |
|
|
: Clip |
||||
|
|
: Pawl |
||||
|
|
: Metal clip |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: N.m (kg-m, in-lb) |
||||
