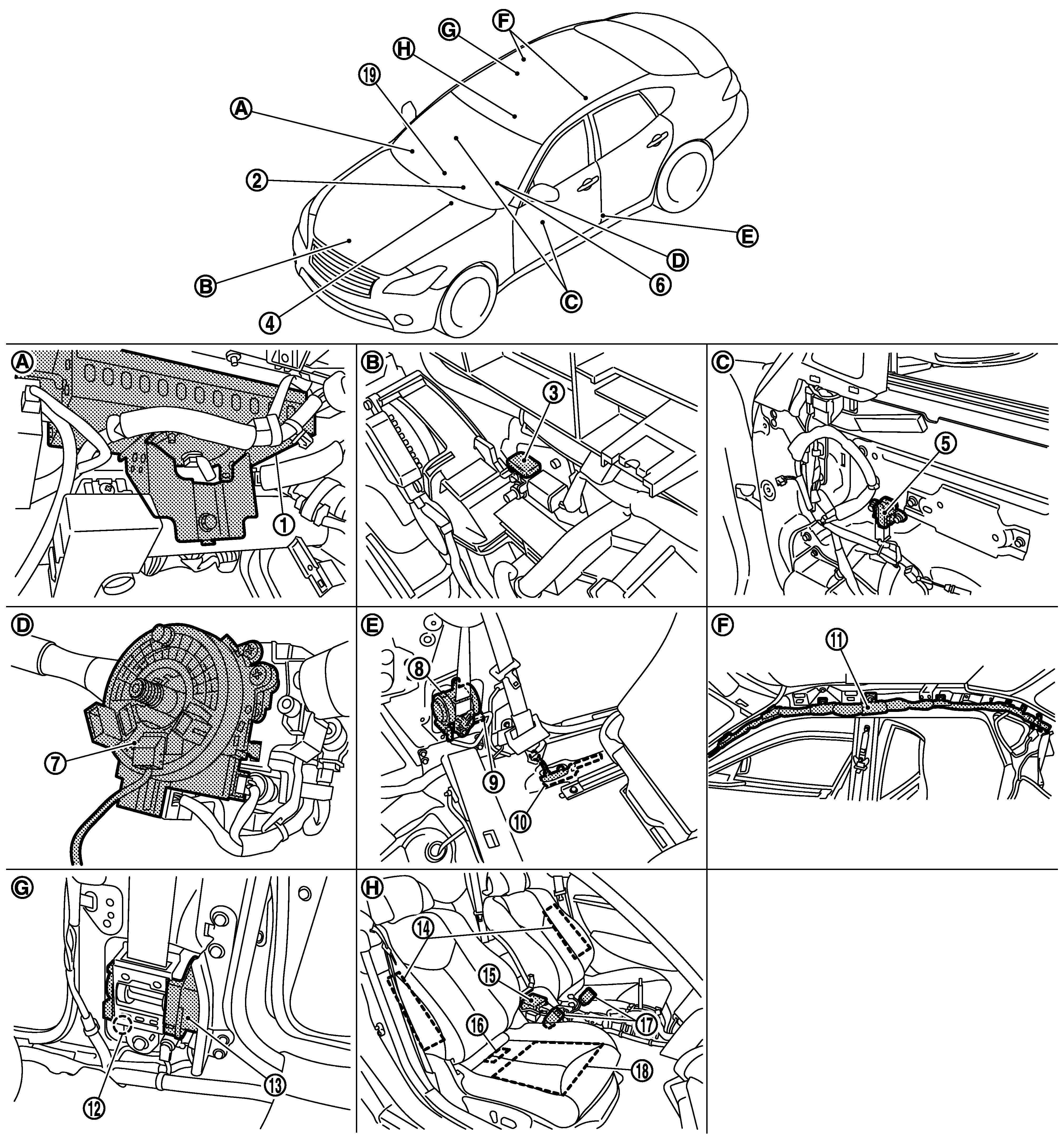

Component Parts Location
|
1. |
Passenger air bag module |
2. |
Combination meter |
3. |
Crash zone sensor |
|
4. |
BCM Refer to Component Parts Location . |
5. |
Front door satellite sensor LH/RH |
6. |
Driver air bag module |
|
7. |
Combination switch (spiral cable) |
8. |
Seat belt pre-tensioner LH |
9. |
Satellite sensor LH |
|
10. |
Lap pre-tensioner LH |
11. |
Curtain air bag module LH/RH |
12. |
Satellite sensor RH |
|
13. |
Seat belt pre-tensioner RH |
14. |
Side air bag module LH/RH |
15. |
Air bag diagnosis sensor unit |
|
16. |
Occupant classification system control unit |
17. |
Seat belt buckle switch LH/RH |
18. |
Occupant classification system sensor |
|
19. |
Multifunction switch (passenger air bag off indicator) |
||||
|
A. |
View with glove box removed |
B. |
Radiator core support assembly |
C. |
View with door finisher removed |
|
D. |
View with steering wheel removed |
E. |
Behind rear side finisher |
F. |
View with headlining assembly removed |
|
G. |
Behind rear side finisher |
H. |
View with center console assembly removed |
