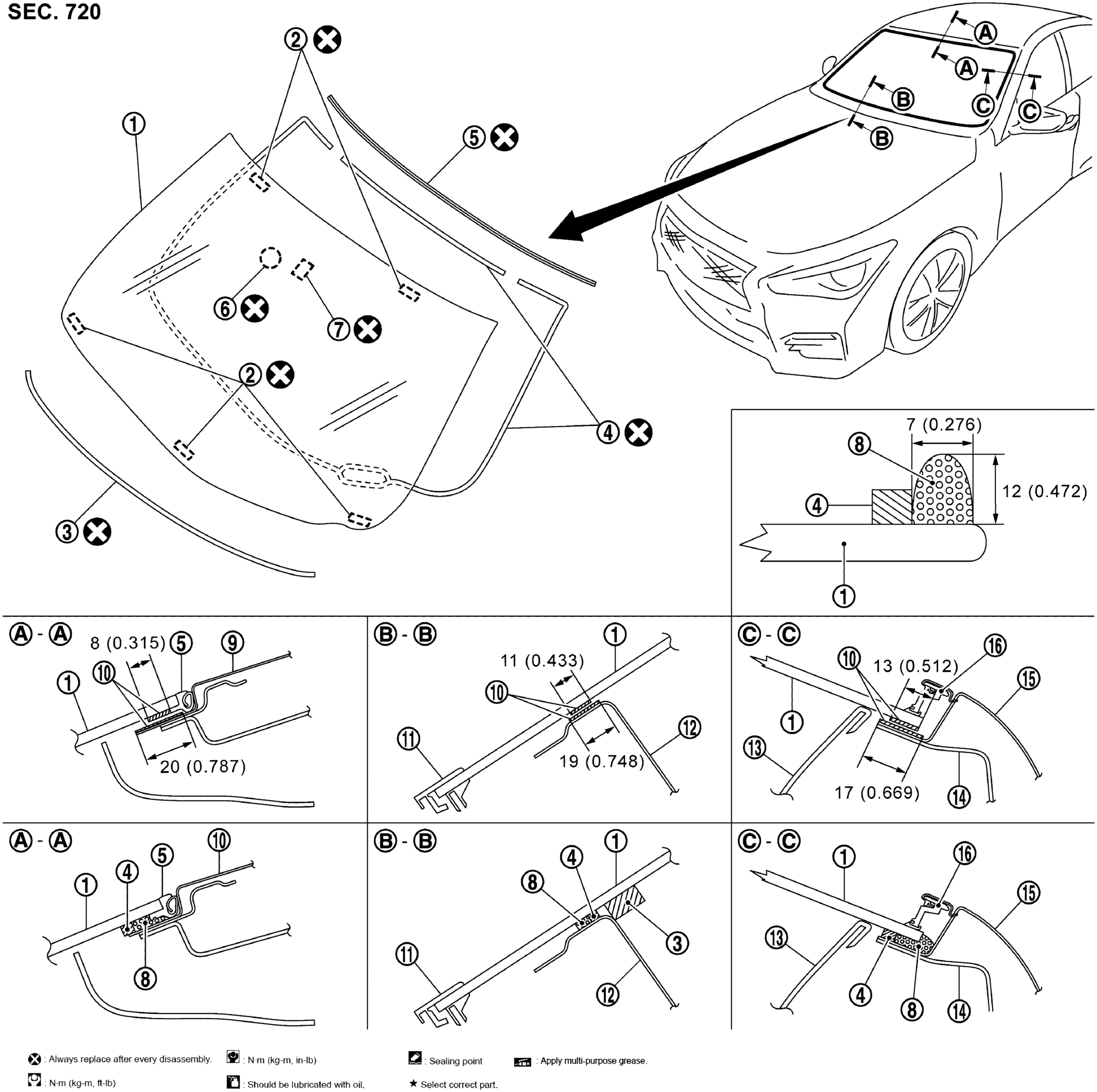

Exploded View
|
1. |
Windshield glass |
2. |
Clip |
3. |
Insulator |
|
4. |
Dam rubber |
5. |
Windshield molding |
6. |
Rain sensor bracket |
|
7. |
Mirror base |
8. |
Adhesive |
9. |
Roof panel |
|
10. |
Primer |
11. |
Cowl top cover |
12. |
Dash upper cross-member |
|
13. |
Front pillar garnish |
14. |
Front pillar outer upper |
15. |
Body side outer |
|
16. |
Roof side molding |
||||
|
Unit : mm (in) |
|||||
|
|
: Always replace after every disassembly. |
||||
