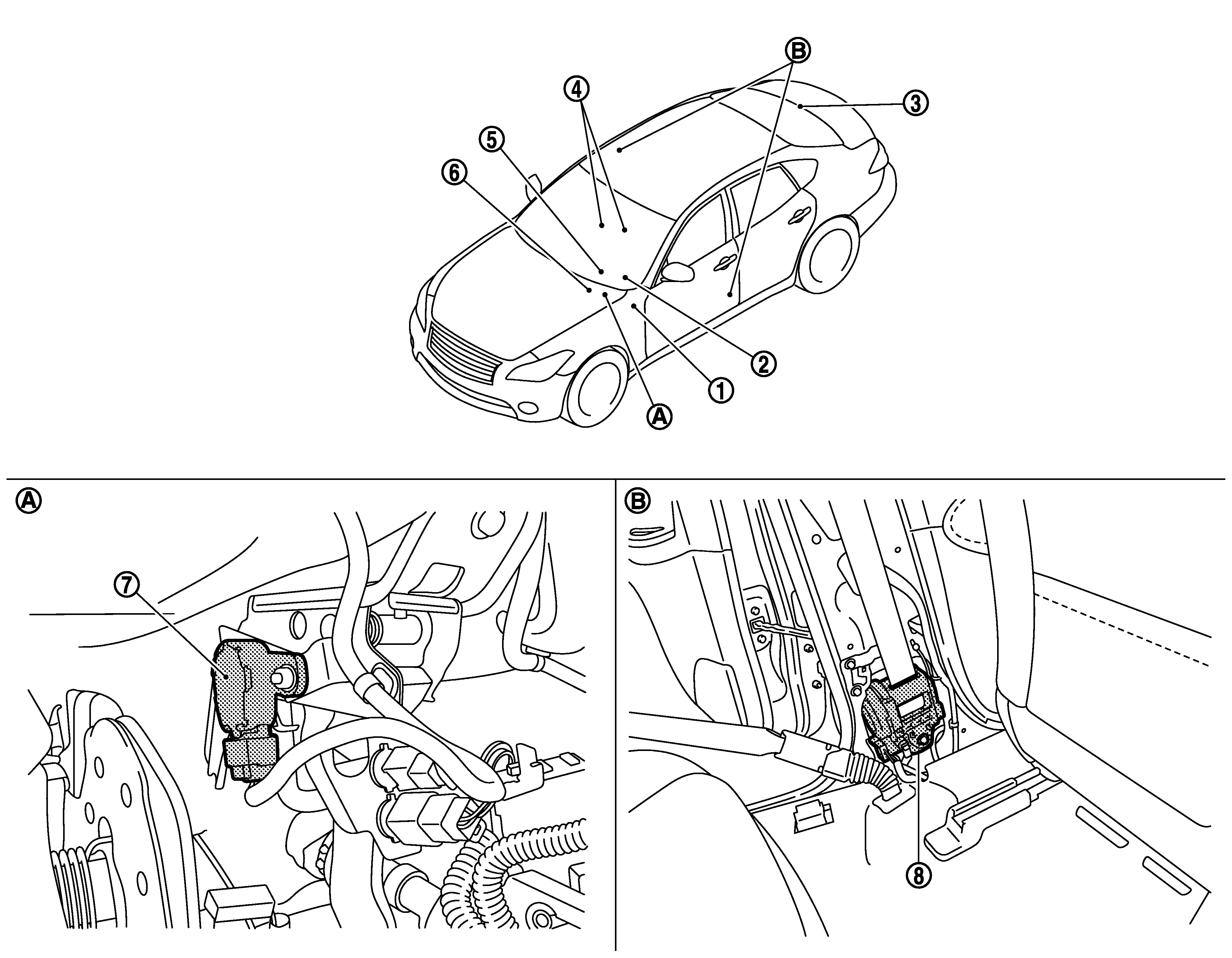

Component Parts Location

1.

BCM

2.

Combination meter

3.

ADAS control unit

4.

Seat belt buckle switch

5.

Steering angle sensor

6.

ABS actuator and electric unit (control unit)

7.

Brake pedal stroke sensor

8.

Pre-crash seat belt control unit (driver side)

A.

View with instrument driver lower cover removed

B.

View with center pillar lower garnish removed (driver side)
