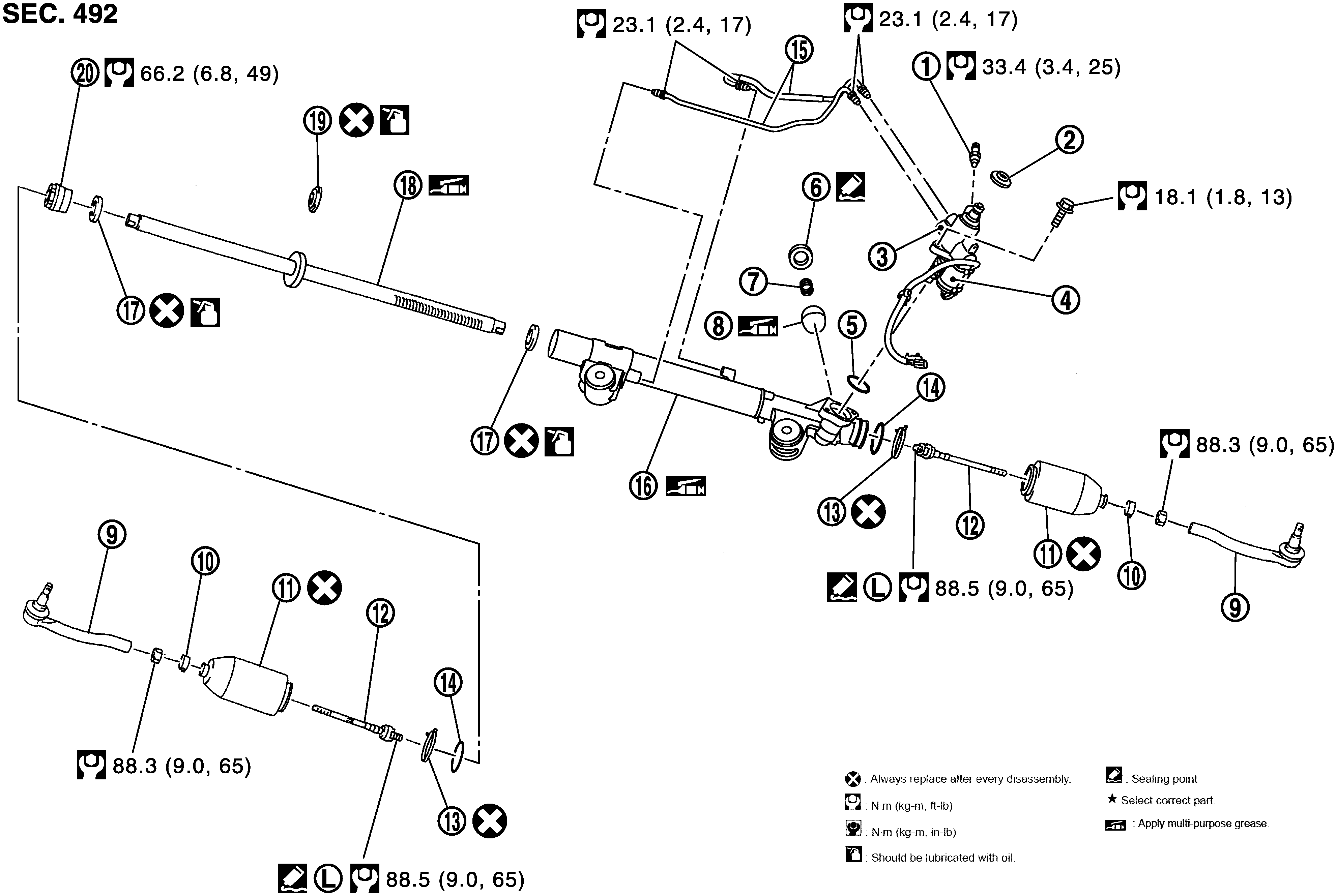

Exploded View: Disassembly

1.

Low pressure piping

2.

Rear cover cap

3.

Gear-sub assembly

4.

Power steering solenoid valve

5.

O-ring

6.

Adjusting screw

7.

Spring

8.

Retainer

9.

Outer socket

10.

Boot clamp

11.

Boot

12.

Inner socket

13.

Boot clamp (stainless wire)

14.

Spacer

15.

Cylinder tubes

16.

Gear housing assembly

17.

Rack oil seal

18.

Rack assembly

19.

Rack Teflon ring

20.

End cover assembly

: Always replace after every disassembly.

:N.m (kg-m, ft-lb)

: Apply power steering fluid.

: Apply Genuine High Performance Thread Sealant or equivalent. Refer to Recommended Chemical Products and Sealants

: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to Recommended Chemical Products and Sealants .

: Apply multi-purpose grease.
