Exploded View

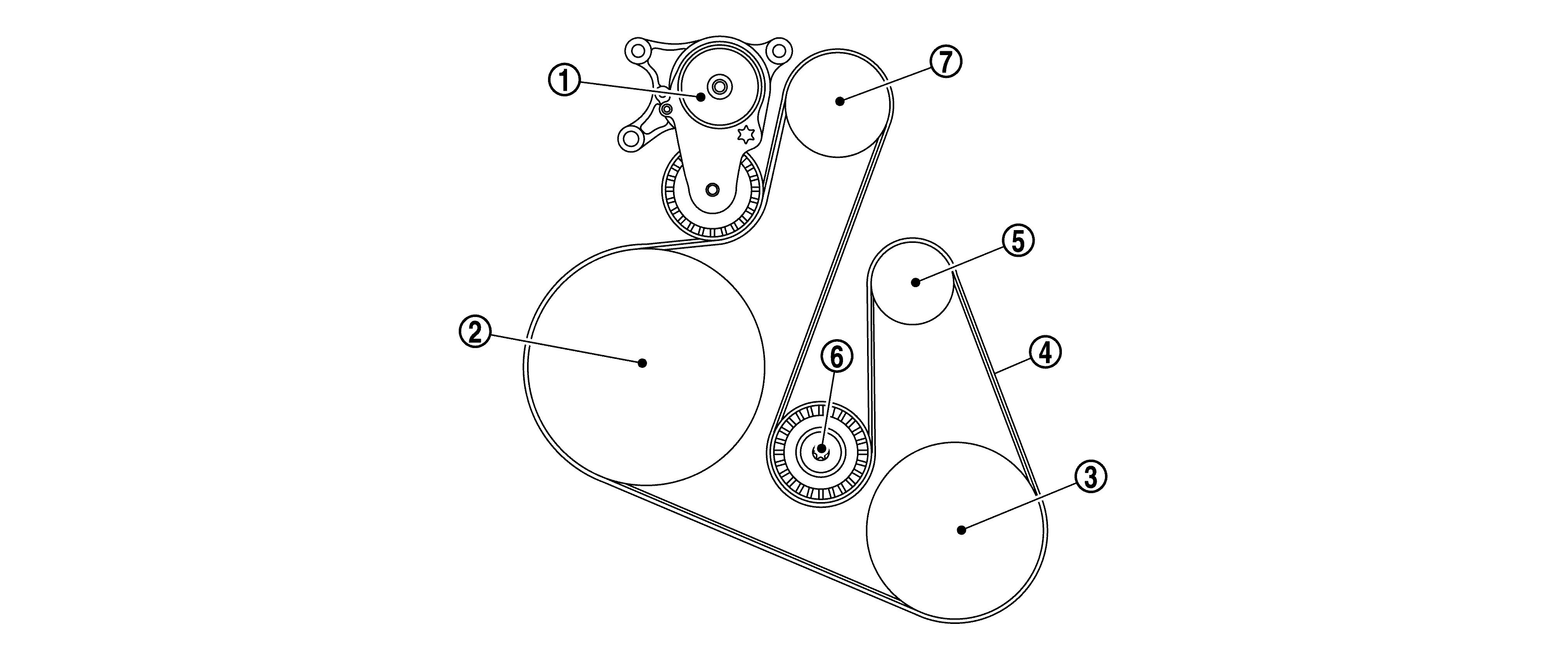

Fig 1: Drive Belt Routing

GNSJSBIA8188Z-188

Courtesy of NISSAN NORTH AMERICA, INC.

	Drive belt auto-tensioner		Crankshaft pulley		A/C compressor
	Drive belt		Alternator		Idler pulley
	Water pump
