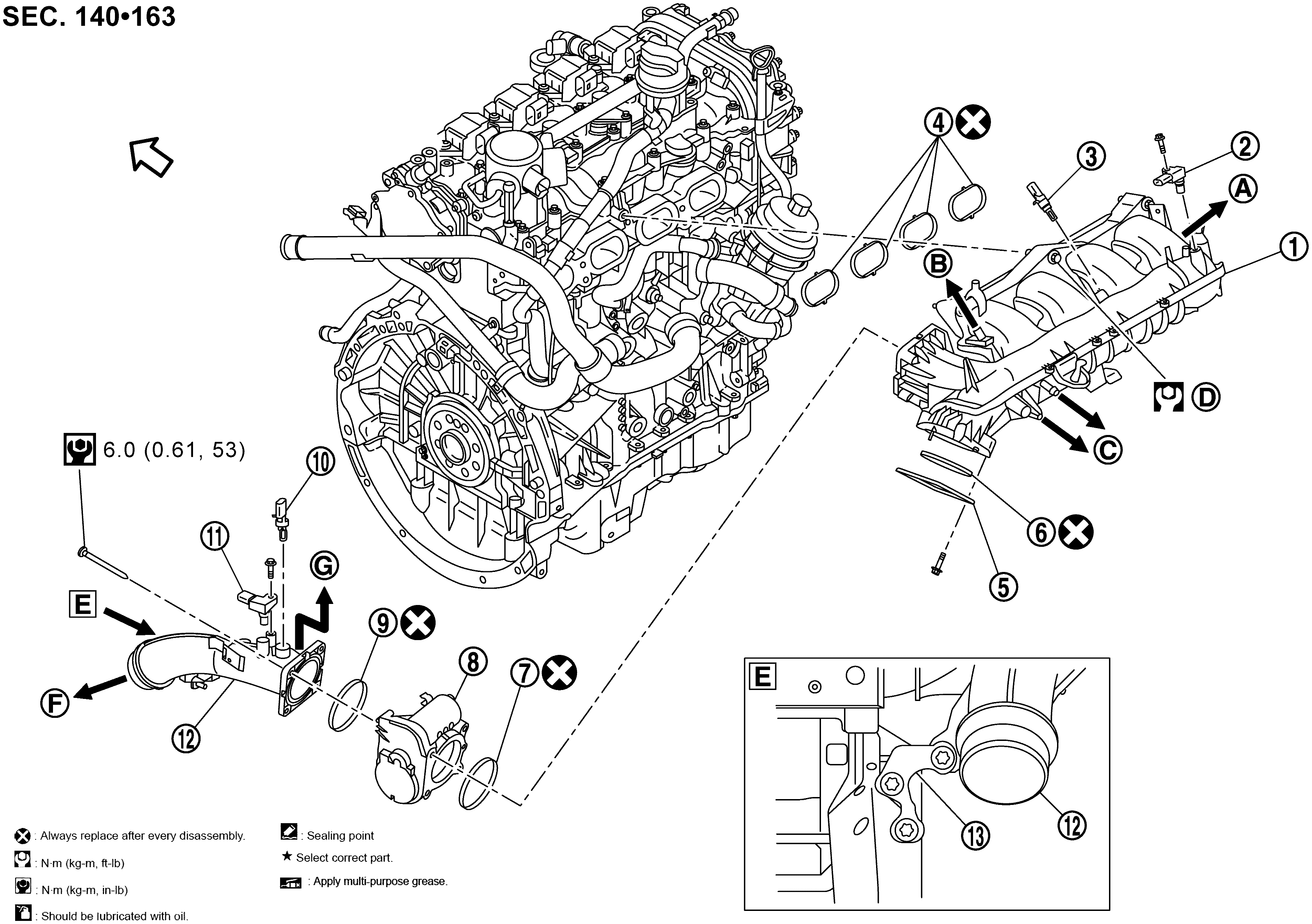

Exploded View
|
|
Charge air manifold |
|
Pressure sensor downstream of throttle valve |
|
Charge air temperature sensor downstream of throttle valve |
|
|
Gasket |
|
Charge air manifold cover |
|
Gasket |
|
|
Gasket |
|
Throttle valve actuator |
|
Gasket |
|
|
Charge air temperature sensor upstream of throttle valve |
|
Pressure sensor upstream of throttle valve |
|
Intake pipe |
|
|
Bracket |
||||
|
|
To boost pressure control vacuum transducer |
|
To vacuum pump |
|
To ventilation system |
|
|
Comply with the installation procedure when tightening. Refer to Removal and Installation . |
|
View |
|
To charge air cooler |
|
|
To ventilation system |
||||
|
|
: Vehicle front |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: N.m (kg-m, in-lb) |
||||
