Engine Control System (1 Of 2)
›
System Description
›
System
›

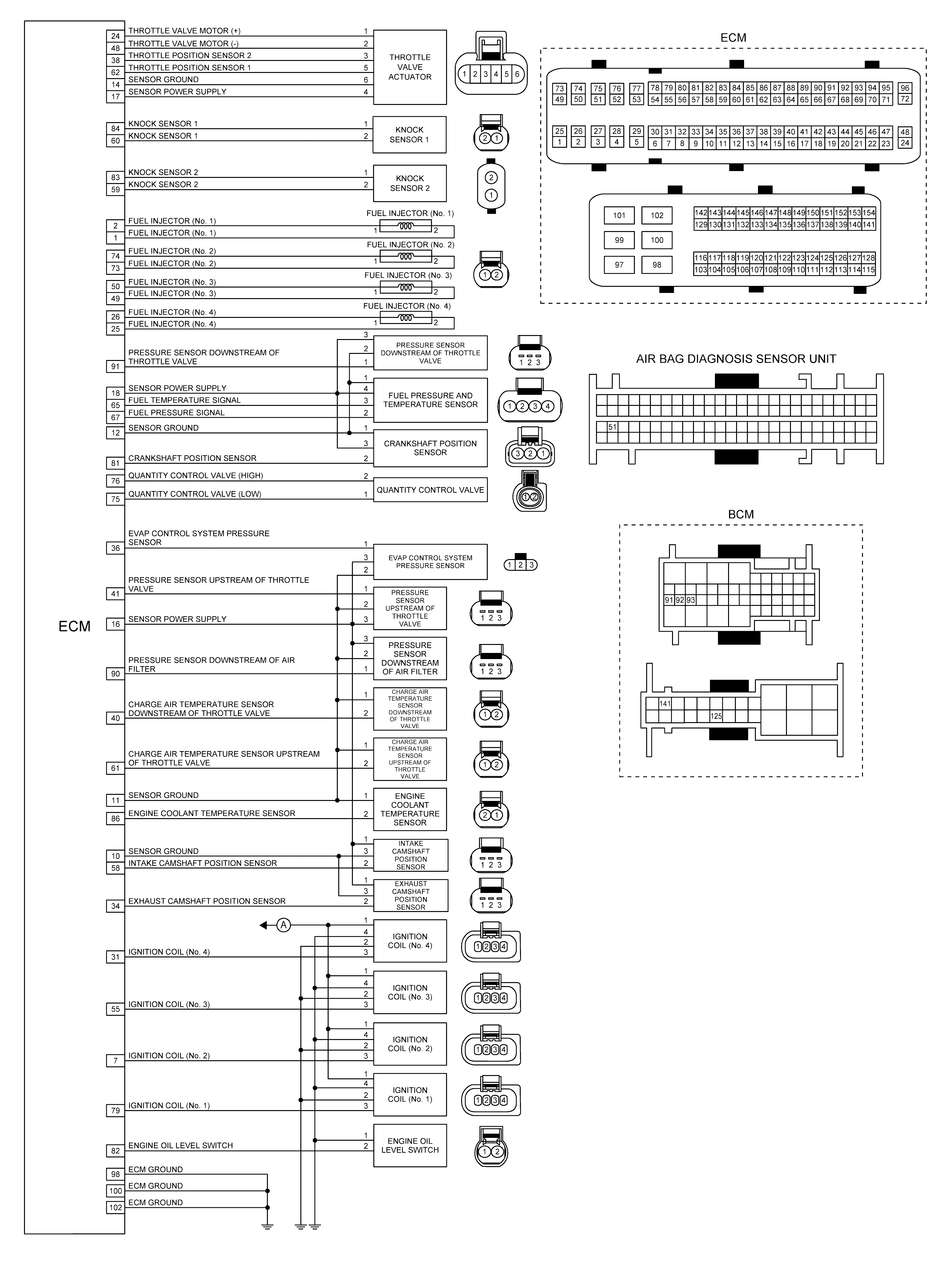

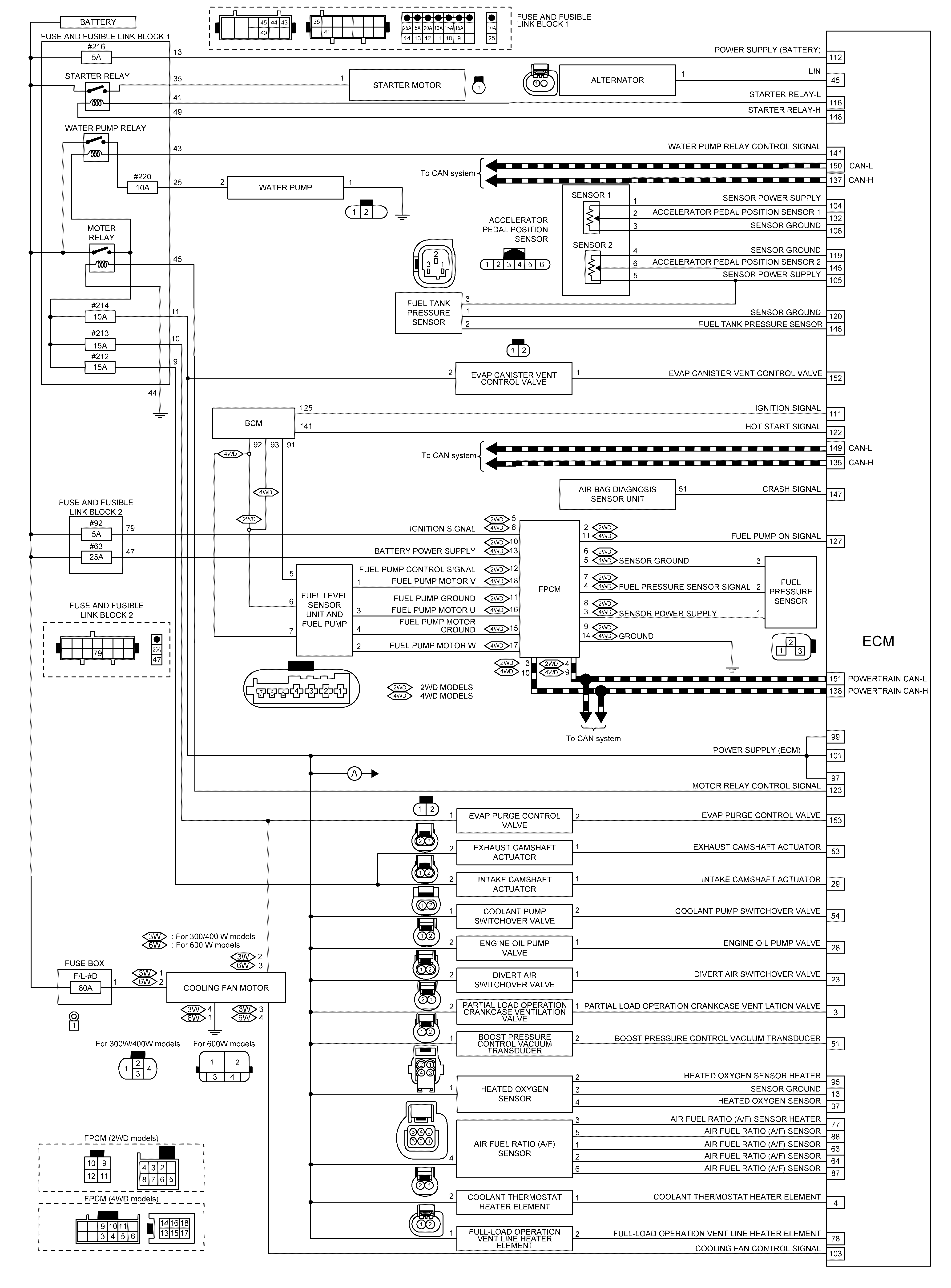

Circuit Diagram
Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*: Cooling fun motor of 600 W models is not applicable.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
