Removal and Installation: Disassembly

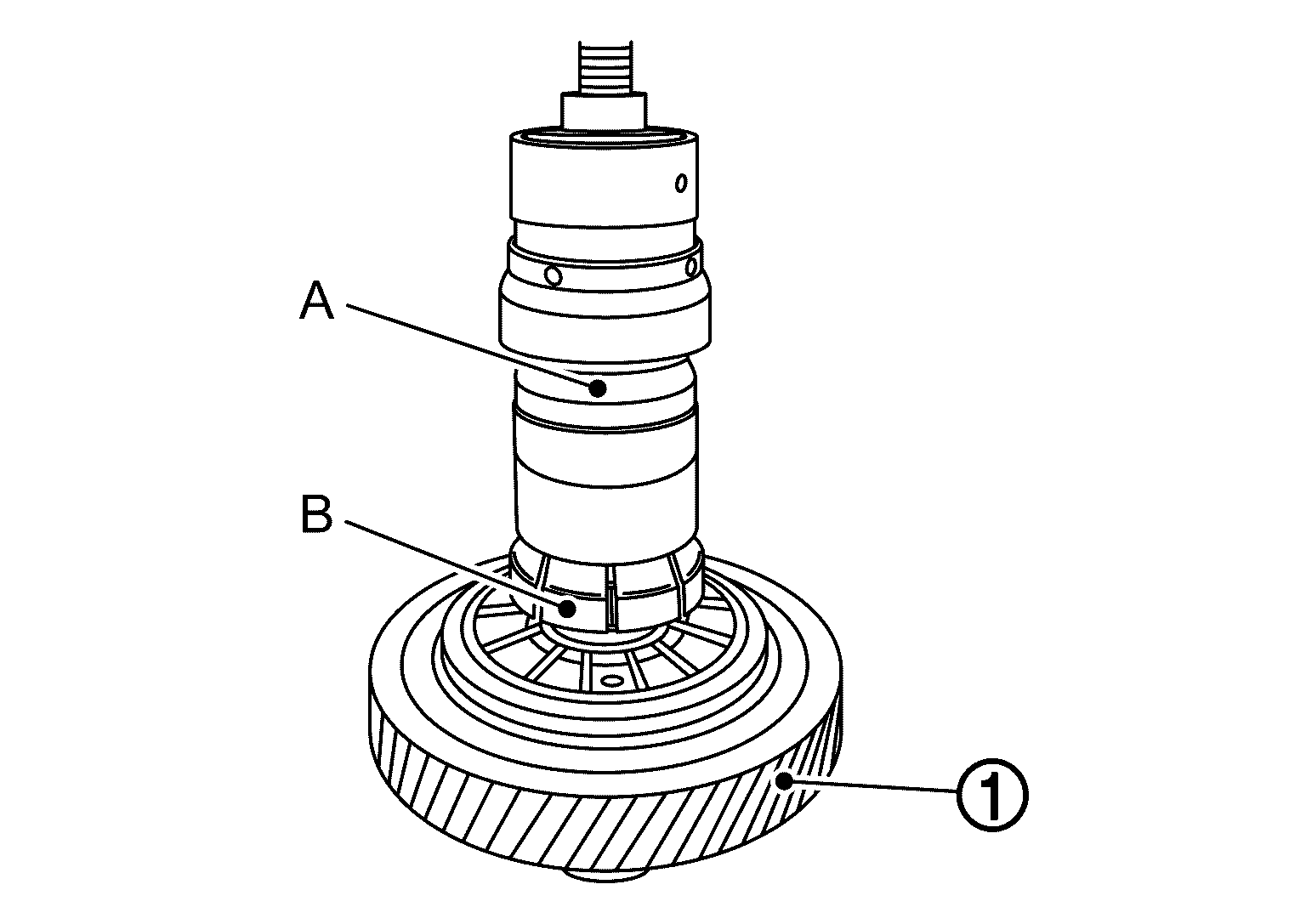

  1. Install chuck (B) [SST: KV325H0660 (TechMate No. -) (DAIMLER tool No. 000 589 60 34 00)] to puller (A) [SST: KV325H0060 (TechMate No. -) (DAIMLER tool No. 001 589 50 33 00)].
    GNSJSDIA8868Z-868Courtesy of NISSAN NORTH AMERICA, INC.
  2. Install chuck and puller to differential side bearing.
  3. Remove differential side bearing from final drive assembly SYMBOL .
