Transaxle Fluid Level

Remove air duct (dust side). Refer to Removal and Installation .
Connect CONSULT. Refer to Description .
Apply the parking brake and start the engine.
Select "TRANSMISSION", "Work Support", "Oil level check" in this order.
Proceed to "Oil level check", according to instructions shown on the CONSULT screen.

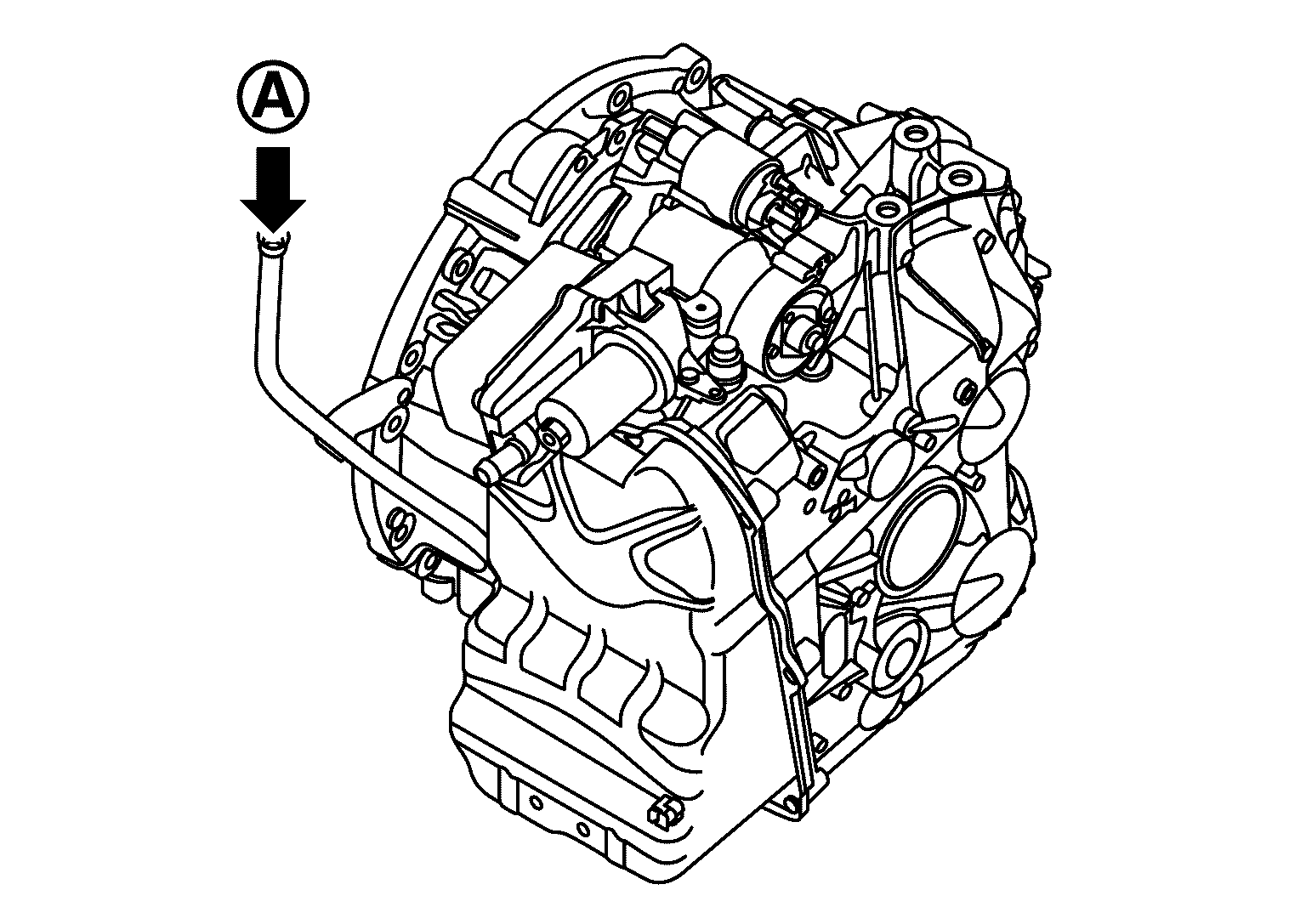

Remove locking pin and remove cap from transaxle fluid charging pipe.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Never reuse locking pin.

NOTE: Locking pin can be removable by pressing lock plate of cap in the direction shown by arrow.

Courtesy of NISSAN NORTH AMERICA, INC.
Insert dipstick [SST: KV315H0340 (TechMate No. -) (DAIMLER tool No. 168 589 012 100)] into hole of transaxle fluid charging pipe.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Inset dipstick all the way to the base.

Measure transaxle fluid level three times with a dipstick.

Transaxle fluid level	Transaxle fluid temperature	40 deg.C (104 deg.F)	4 scales
		70 deg.C (158 deg.F)	5 scales

NOTE:

Wipe out transaxle fluid contacts dipstick each time by using a lint-free waste.

How to read scales.

If there are variations in the measurement results:

Courtesy of NISSAN NORTH AMERICA, INC.

If the measurement results show that oil level is slanted:

Courtesy of NISSAN NORTH AMERICA, INC.

	: 3 - 4 scales
	: Actual scale (3.5 scales)

Adjust transaxle fluid level, if necessary. Refer to Adjustment .
Complete "Oil level check", according to instructions shown on the CONSULT screen.
Stop the engine.
