Exploded View

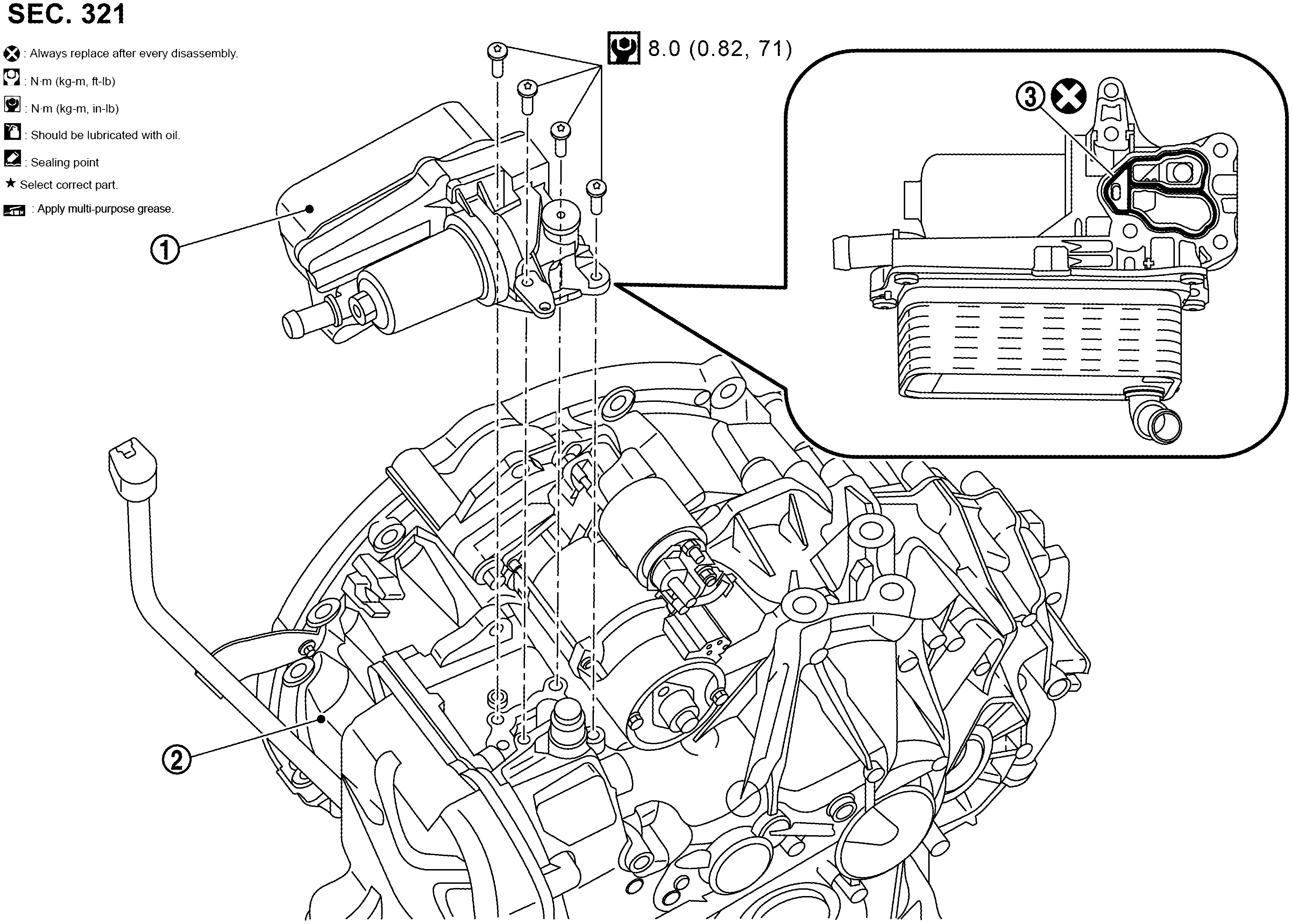

Fig 1: Transaxle Cooling Module Components Location With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

Transaxle cooling module	Transaxle assembly	Seal
: Always replace after every disassembly.
: N.m (kg-m, in-lb)
