Exploded View

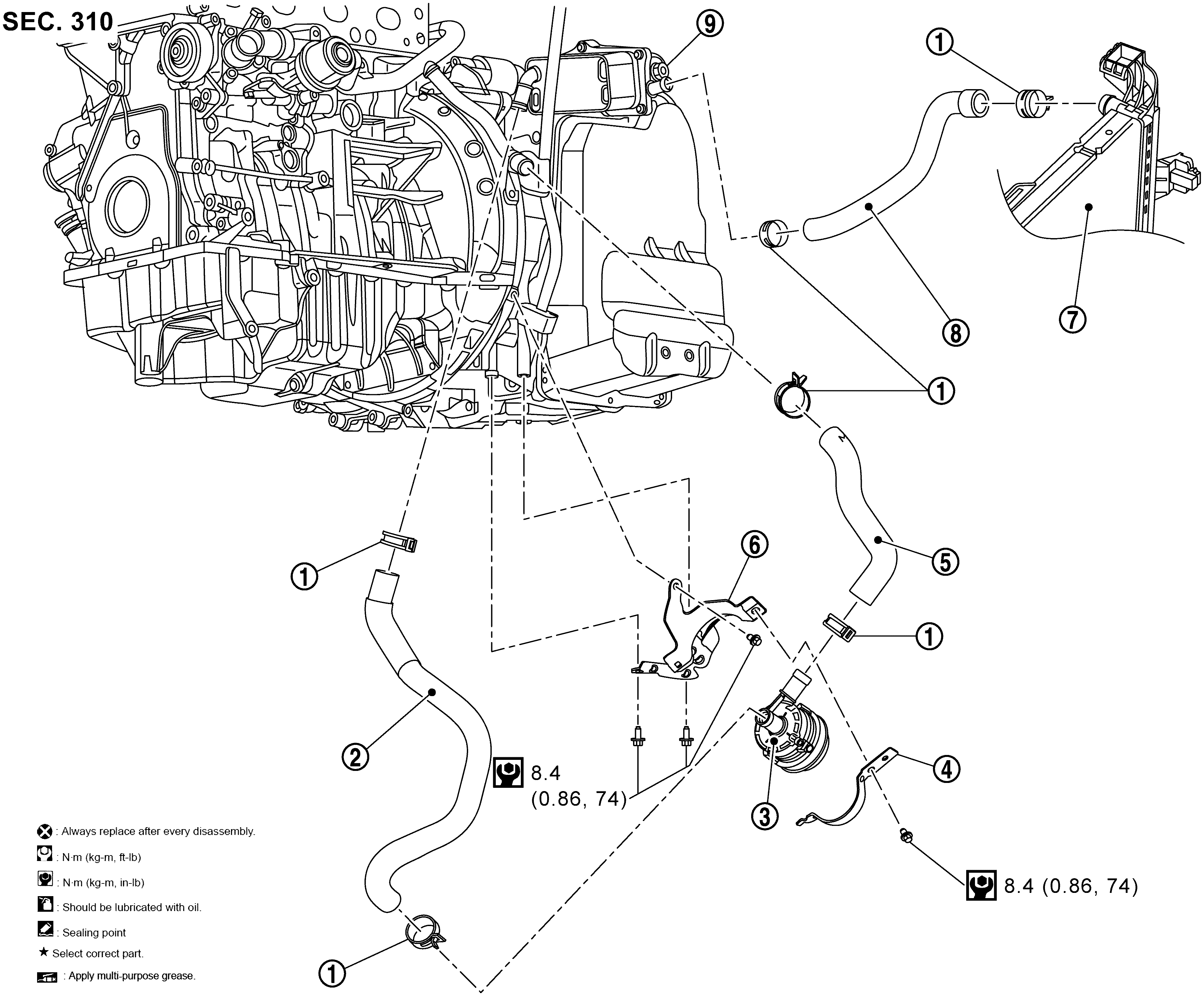

Fig 1: Transaxle Fluid Cooler System With Torque Specification

GNSJSDIA8961GB-961

Courtesy of NISSAN NORTH AMERICA, INC.

	Hose clamp		Water hose A		Water pump
	Bracket		Water hose B		Bracket
	Radiator		Water hose C		Transaxle assembly
	: N.m (kg-m, in-lb)
