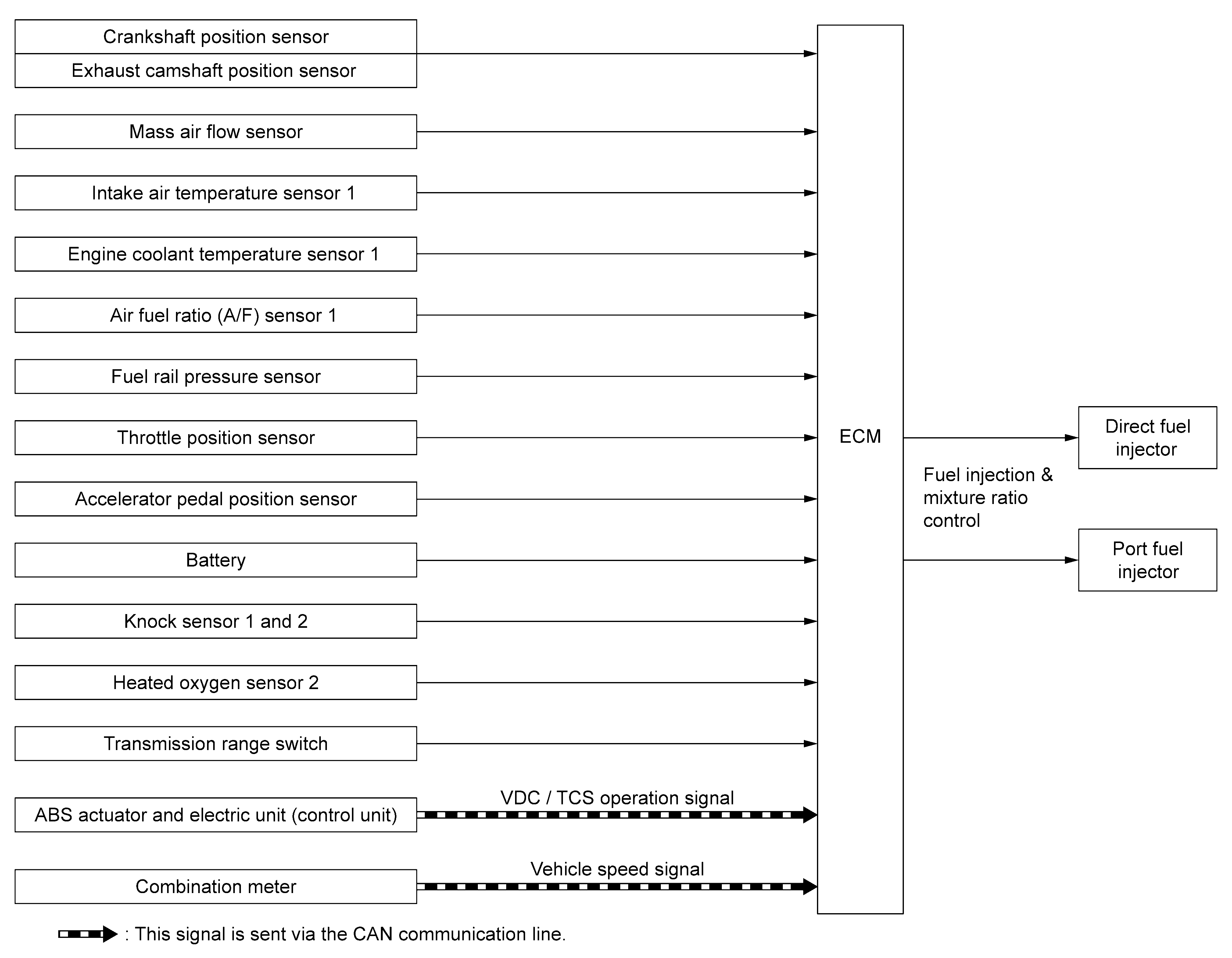

Home › Infiniti › 2019 › QX50 Pure, 4WD › Repair and Diagnosis › Engine Performance › System › Engine Control System (2 Of 6) › System › Direct And Port Fuel Injection System › System Description › System Diagram
