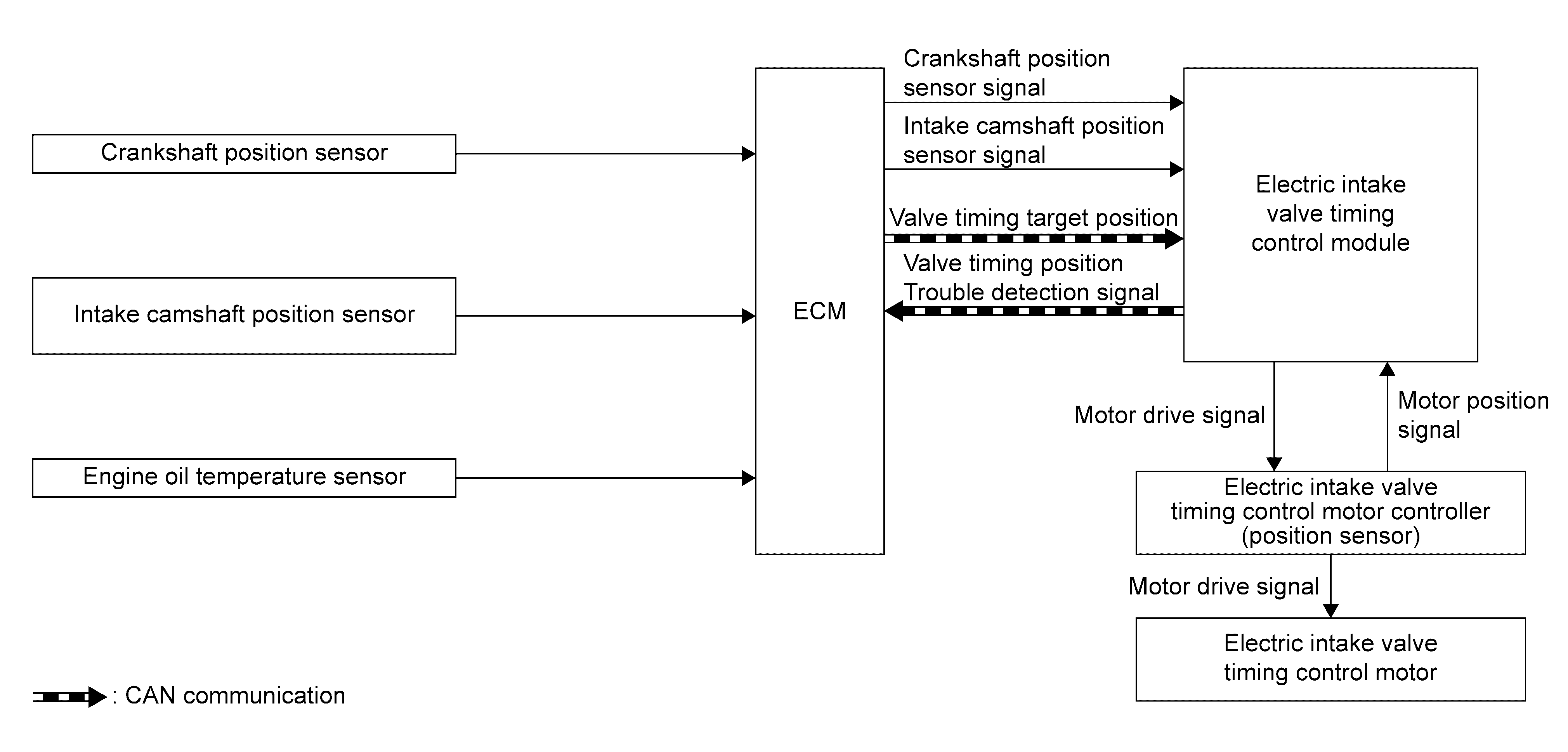

System Diagram
|
Component parts |
Function |
|
Crankshaft position sensor |
|
|
Intake camshaft position sensor |
|
|
Engine oil temperature sensor |
|
|
ECM |
|
|
Electric intake valve timing control module |
|
|
Electric intake valve timing control actuator |
|
|
Electric intake valve timing control motor* |
*: Electric intake valve timing control motor is built in to the cam sprocket (INT).
