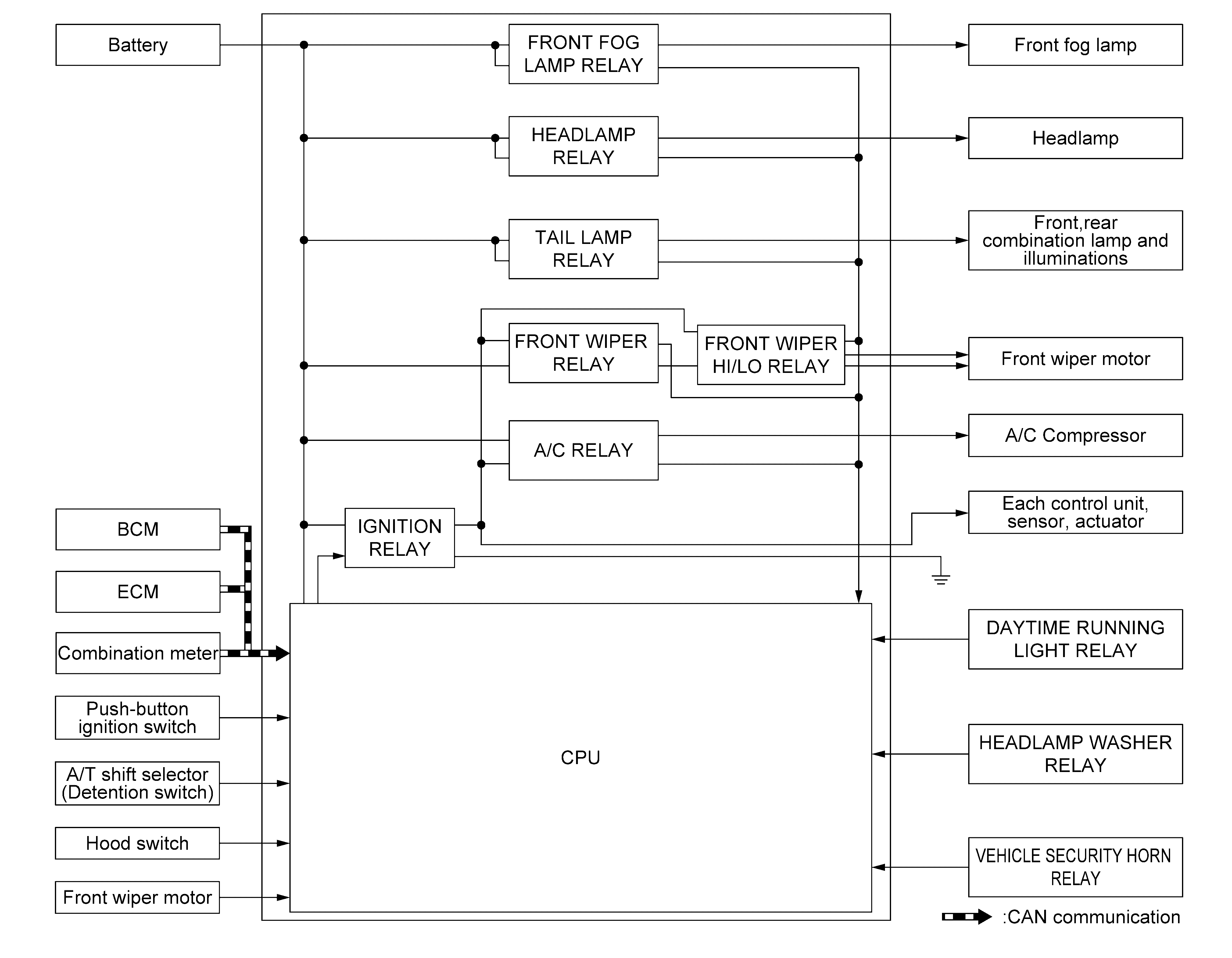

System Diagram

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

VR Engine Models

Courtesy of NISSAN NORTH AMERICA, INC.

2.0L Turbo Gasoline Engine Models

Courtesy of NISSAN NORTH AMERICA, INC.
