Power Control System (Diagnostics)
›
Description
›
System
›
Relay Control System
›
System Description
›
System Diagram
System Diagram

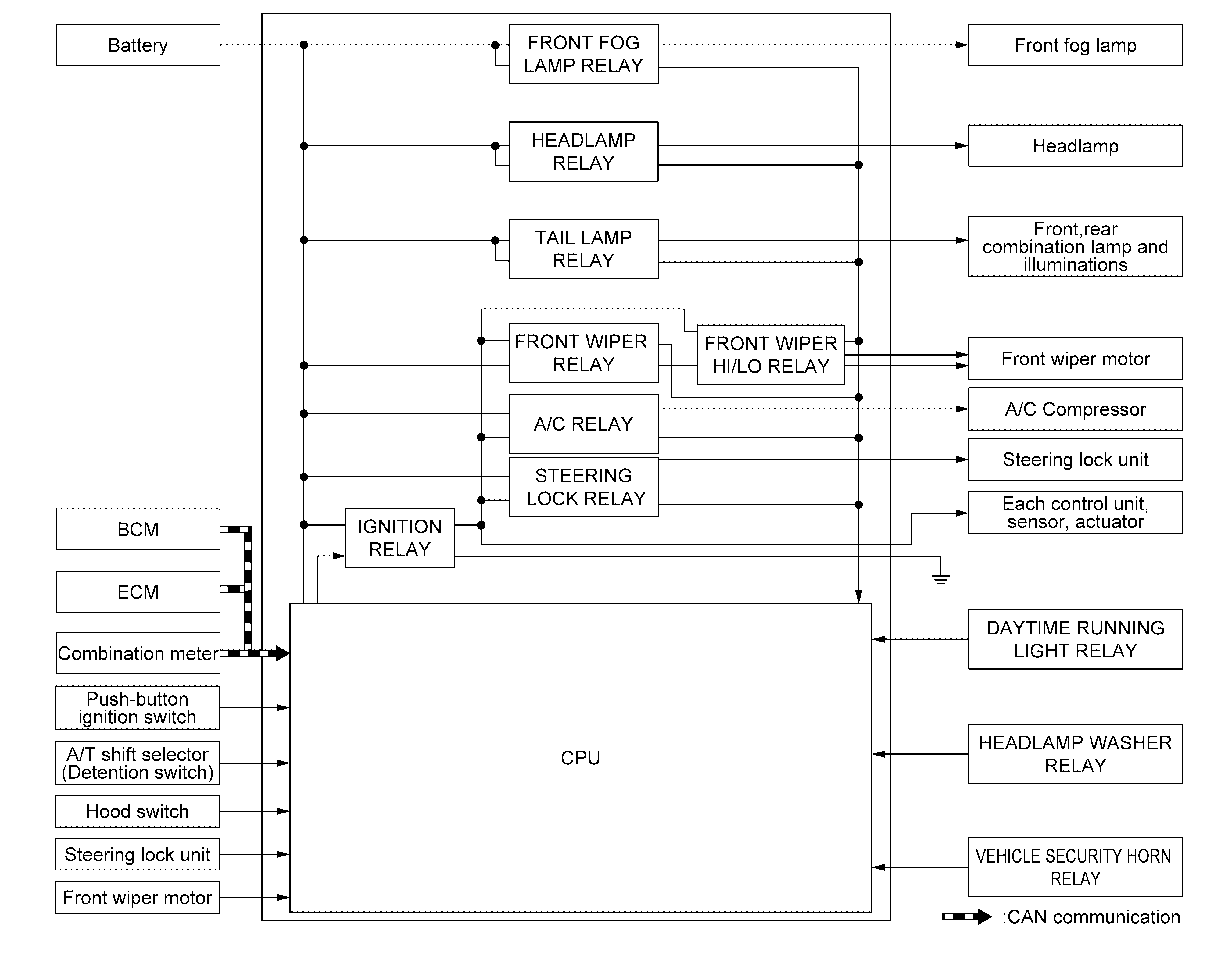

VR30DDTT Engine Models
Courtesy of NISSAN NORTH AMERICA, INC.

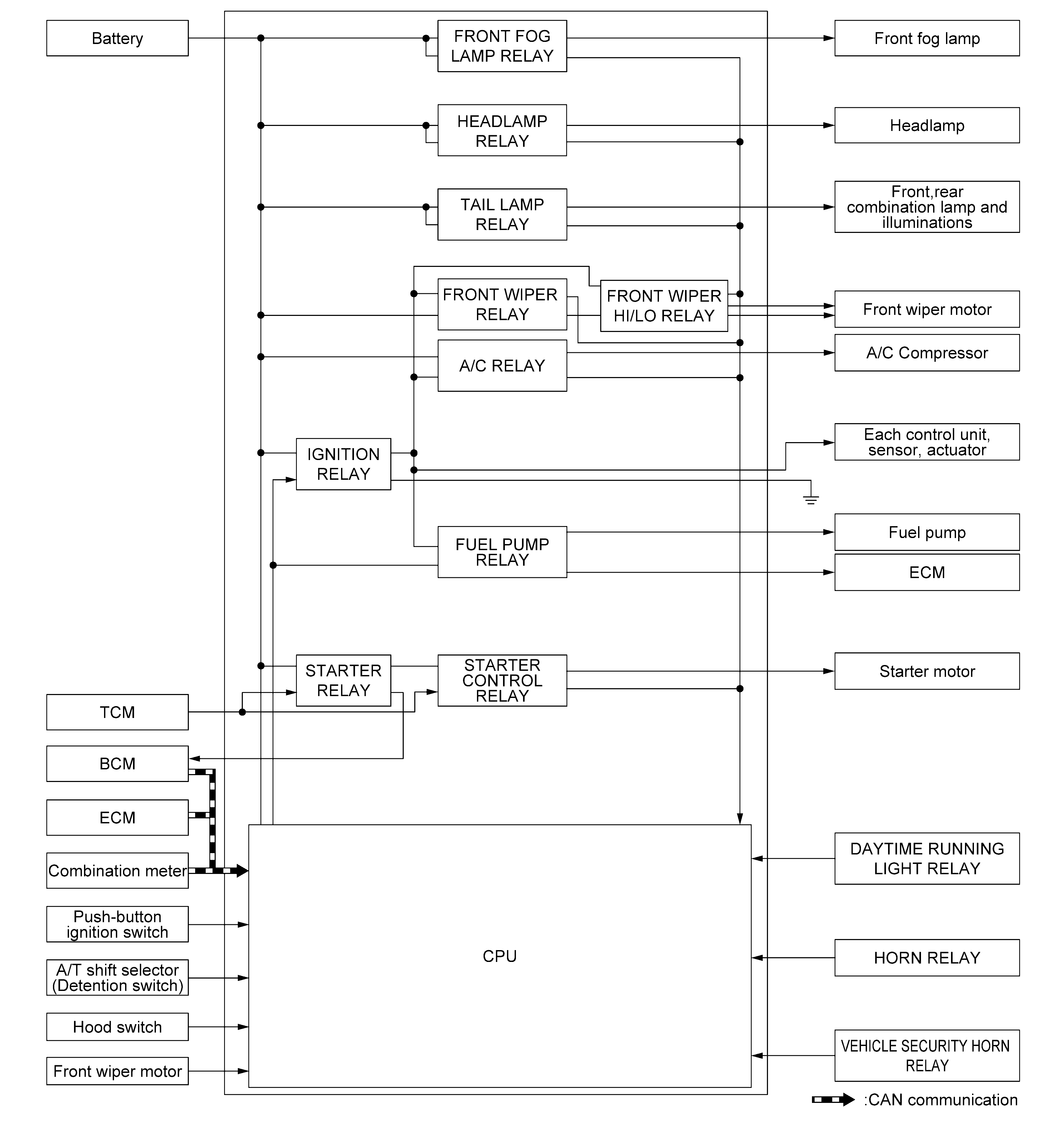

2.0L Turbo Gasoline Engine Models
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
