System Diagram

WARNING: This page is about a different car, the 2019 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

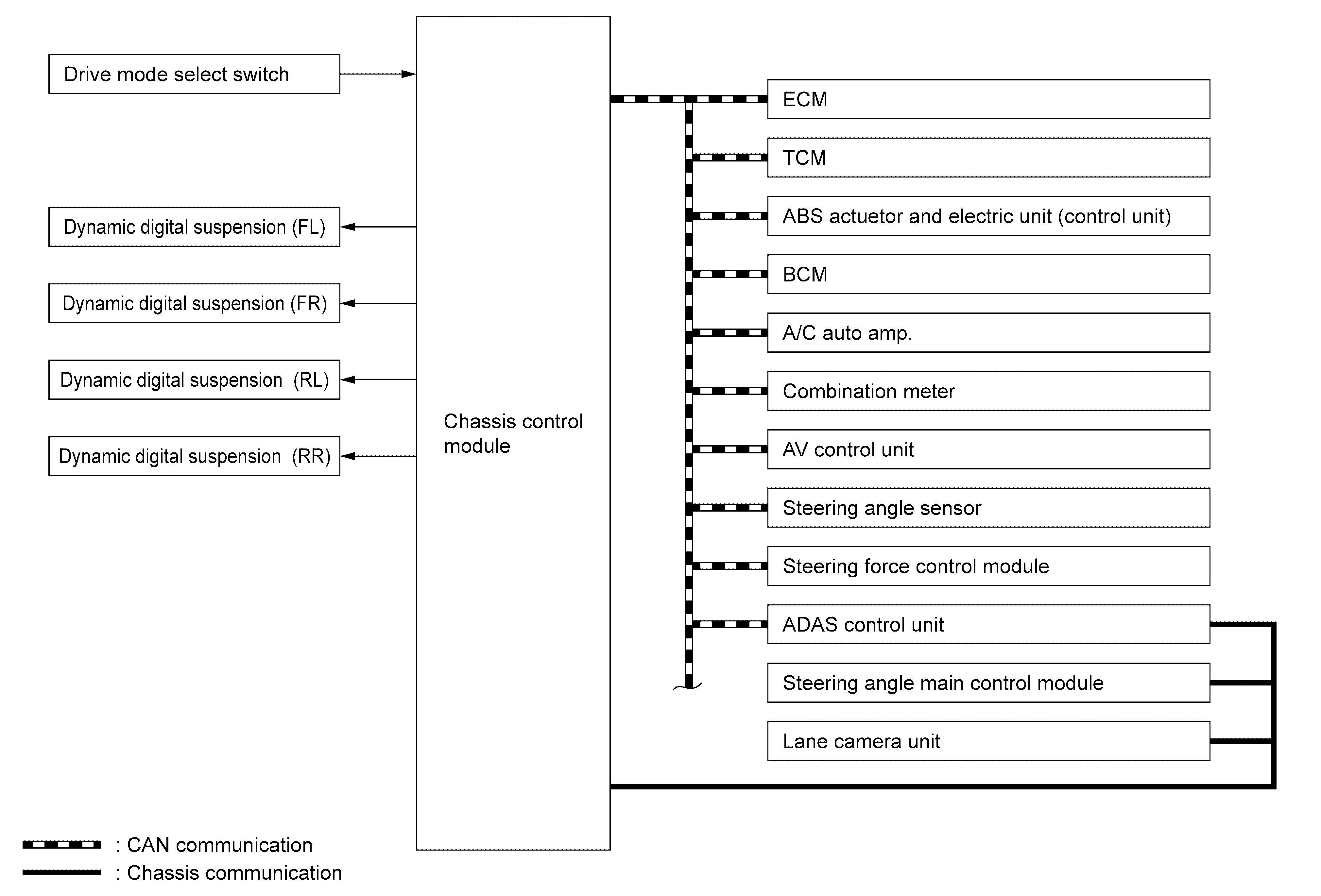

Models With Digital Motion Control

GNSJSOIA2393GB-393Courtesy of NISSAN NORTH AMERICA, INC.

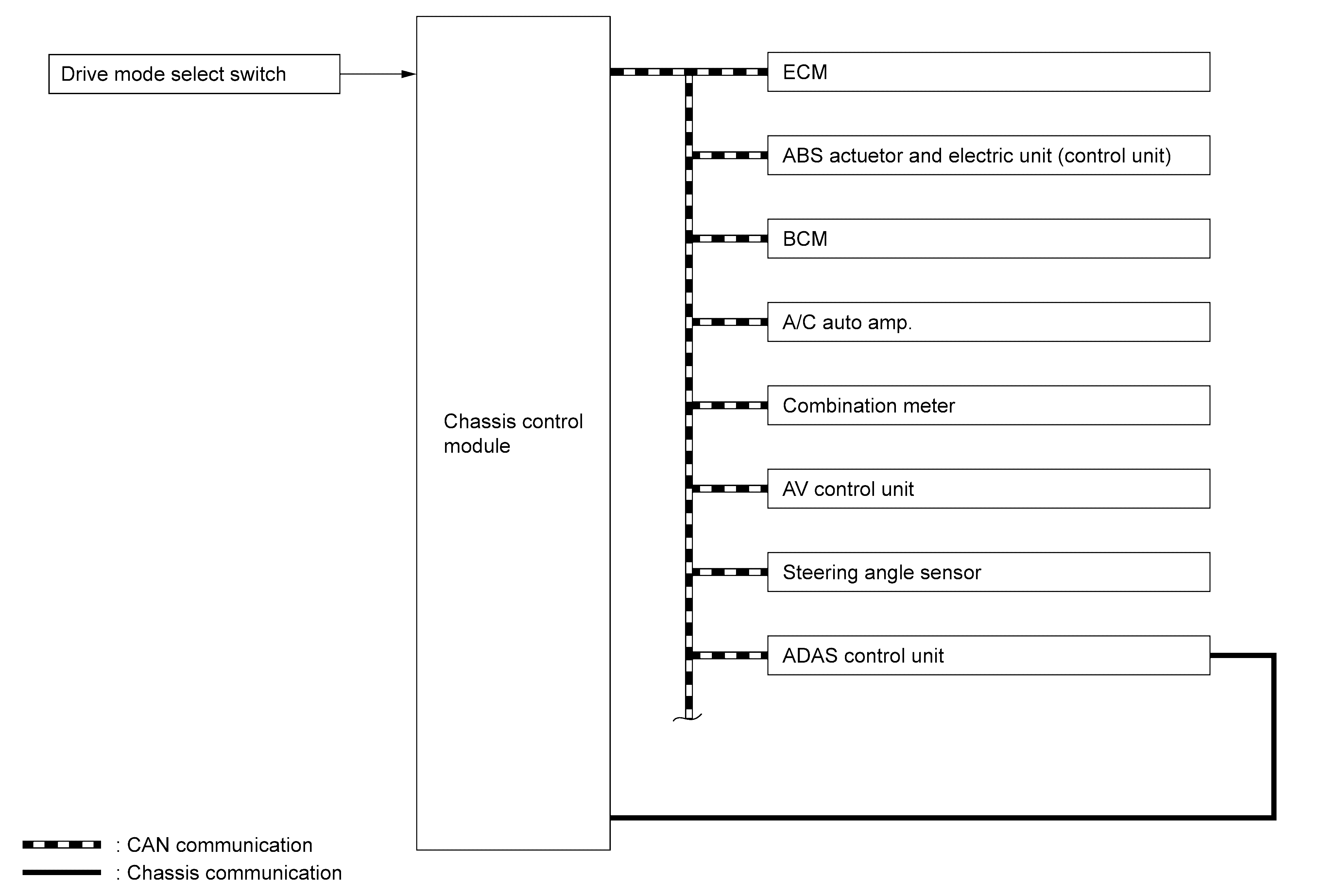

Models Without Digital Motion Control

GNSJSOIA2394GB-394Courtesy of NISSAN NORTH AMERICA, INC.
