For VR30DDTT Engine Models

WARNING: This page is about a different car, the 2019 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

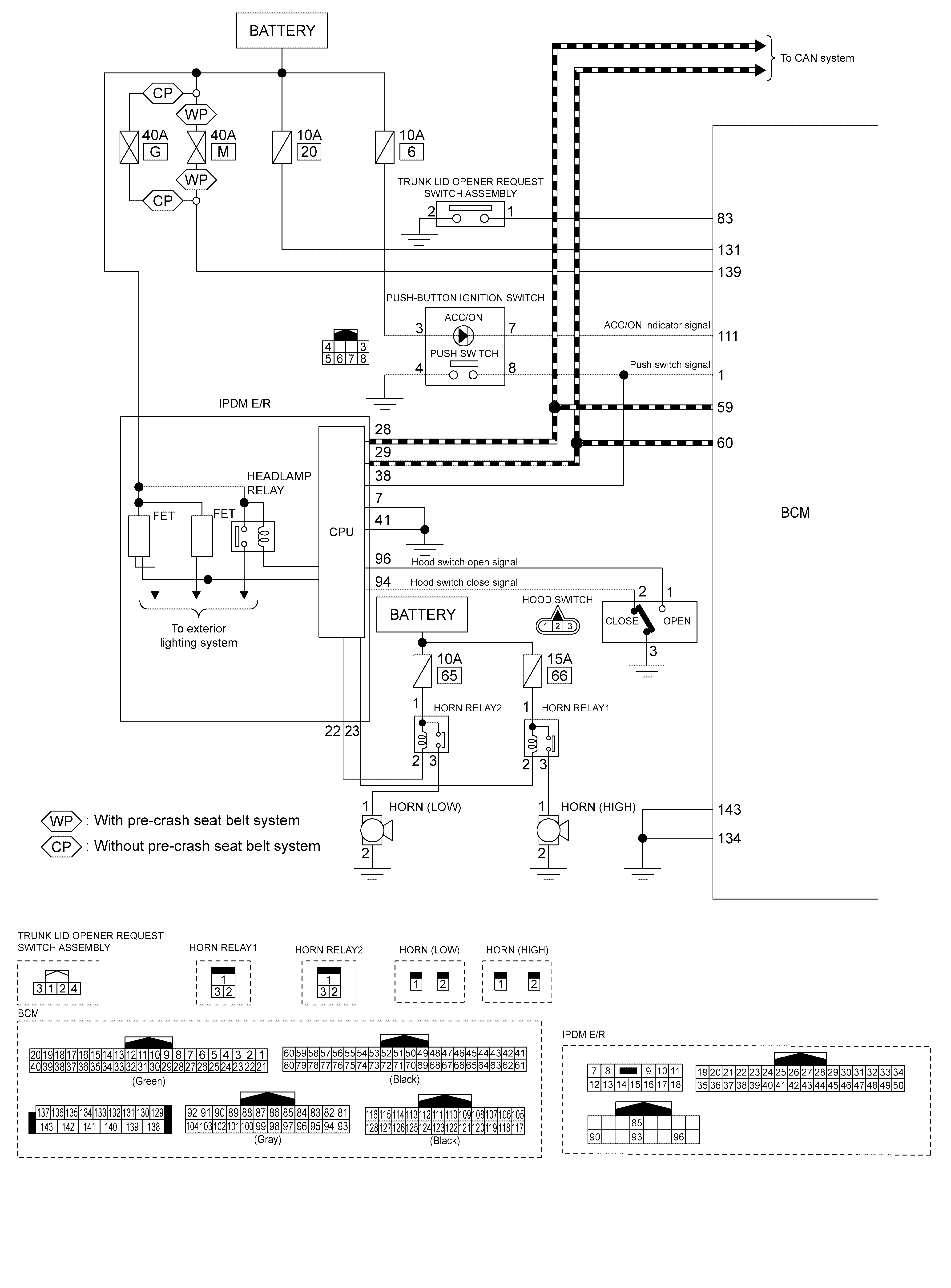

GNSILL0217838-838Courtesy of NISSAN NORTH AMERICA, INC.
GNSJMKIB8730GB-730Courtesy of NISSAN NORTH AMERICA, INC.
