Steering Control System (Diagnostics)
›
Description
›
System
›
Direct Adaptive Steering
›

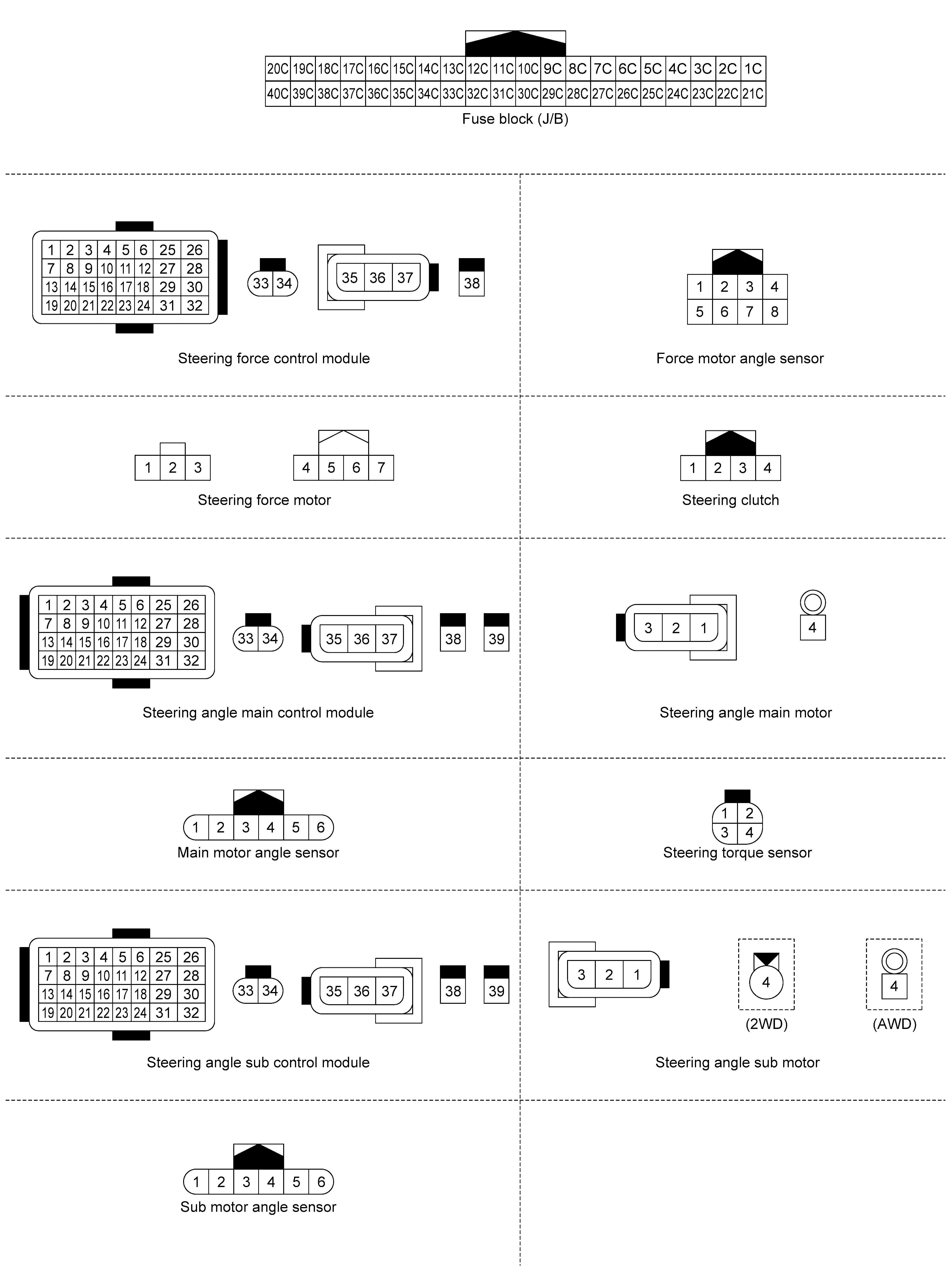

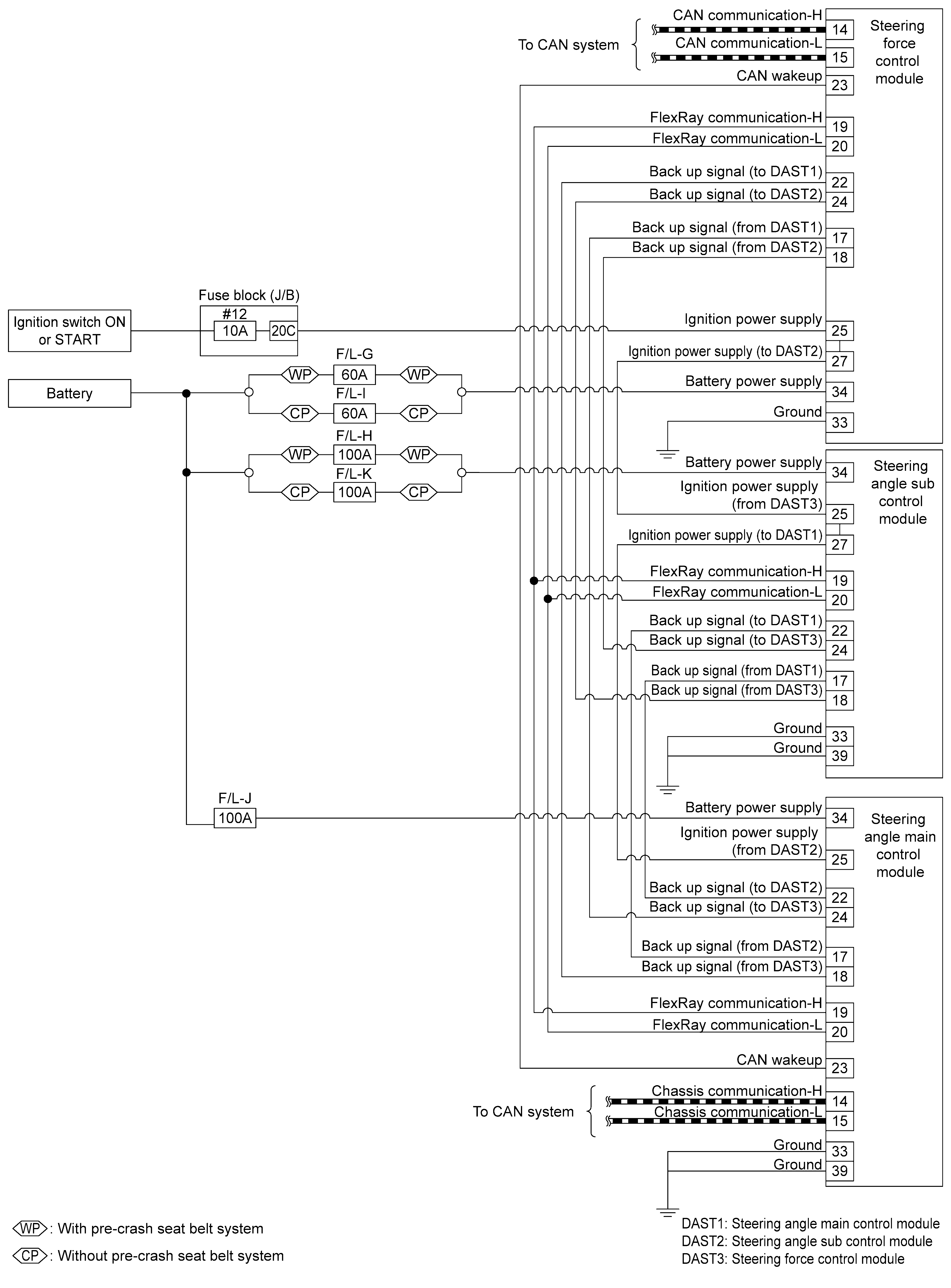

Circuit Diagram

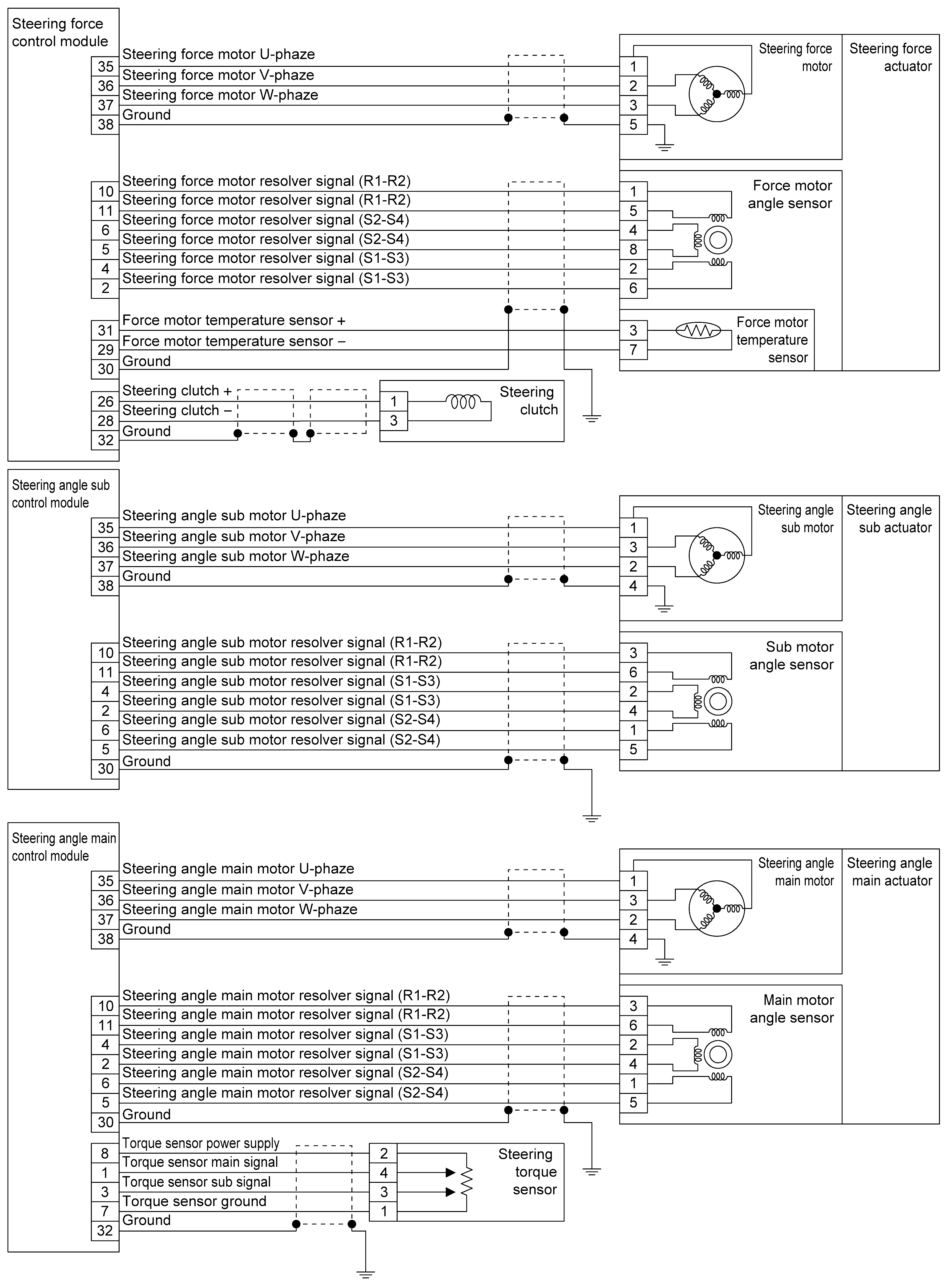

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
