Exploded View

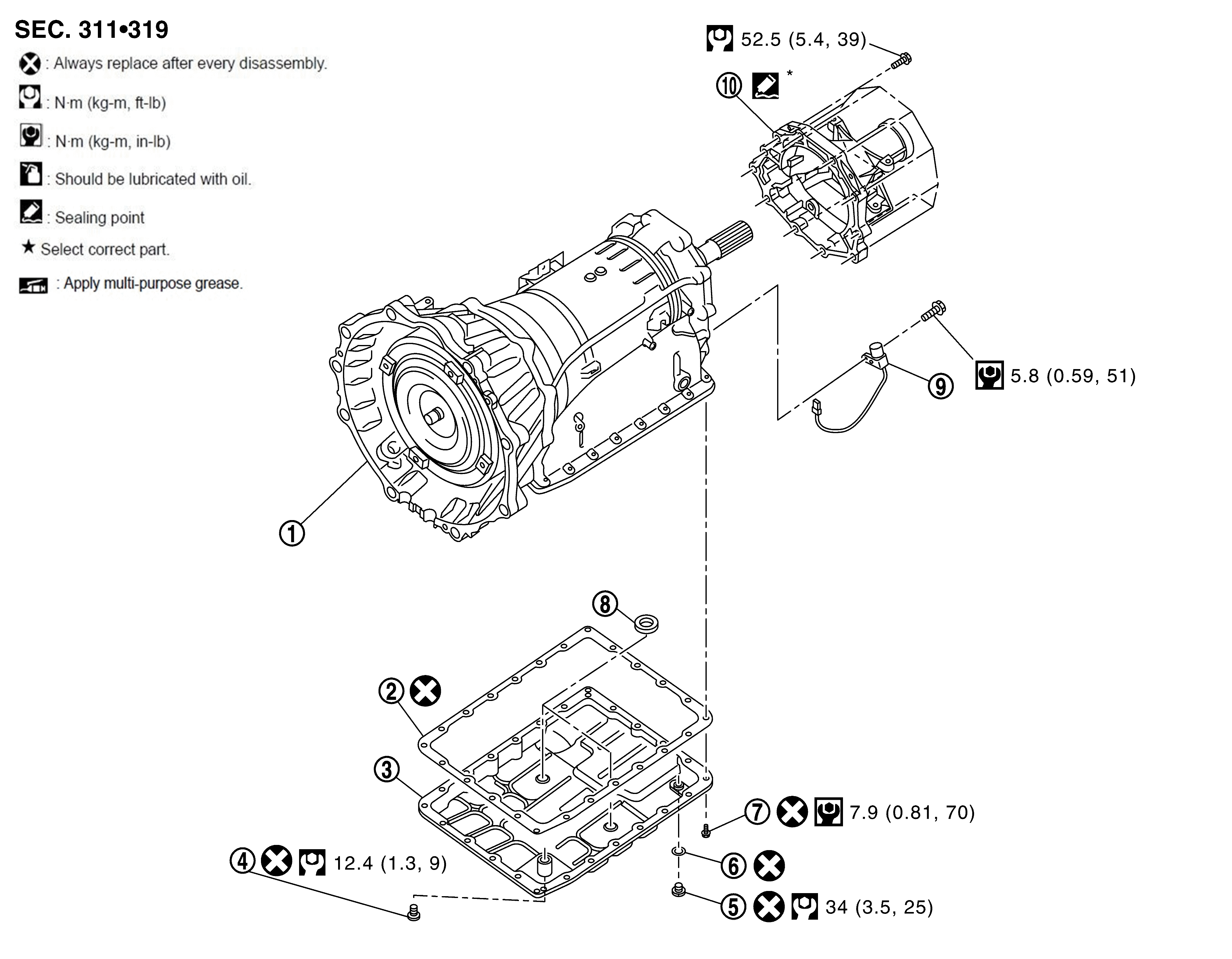

Fig 1: Output Speed Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Transmission assembly	Oil pan gasket	Oil pan
	Overflow plug	Drain plug	Drain plug gasket
	Oil pan mounting bolt	Magnet	Output speed sensor
	Rear extension
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
*: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS : Commercial Service Tools or/and Repair Part .
