Automatic Transmission
›
Removal And Installation
›
Input Speed Sensor
›

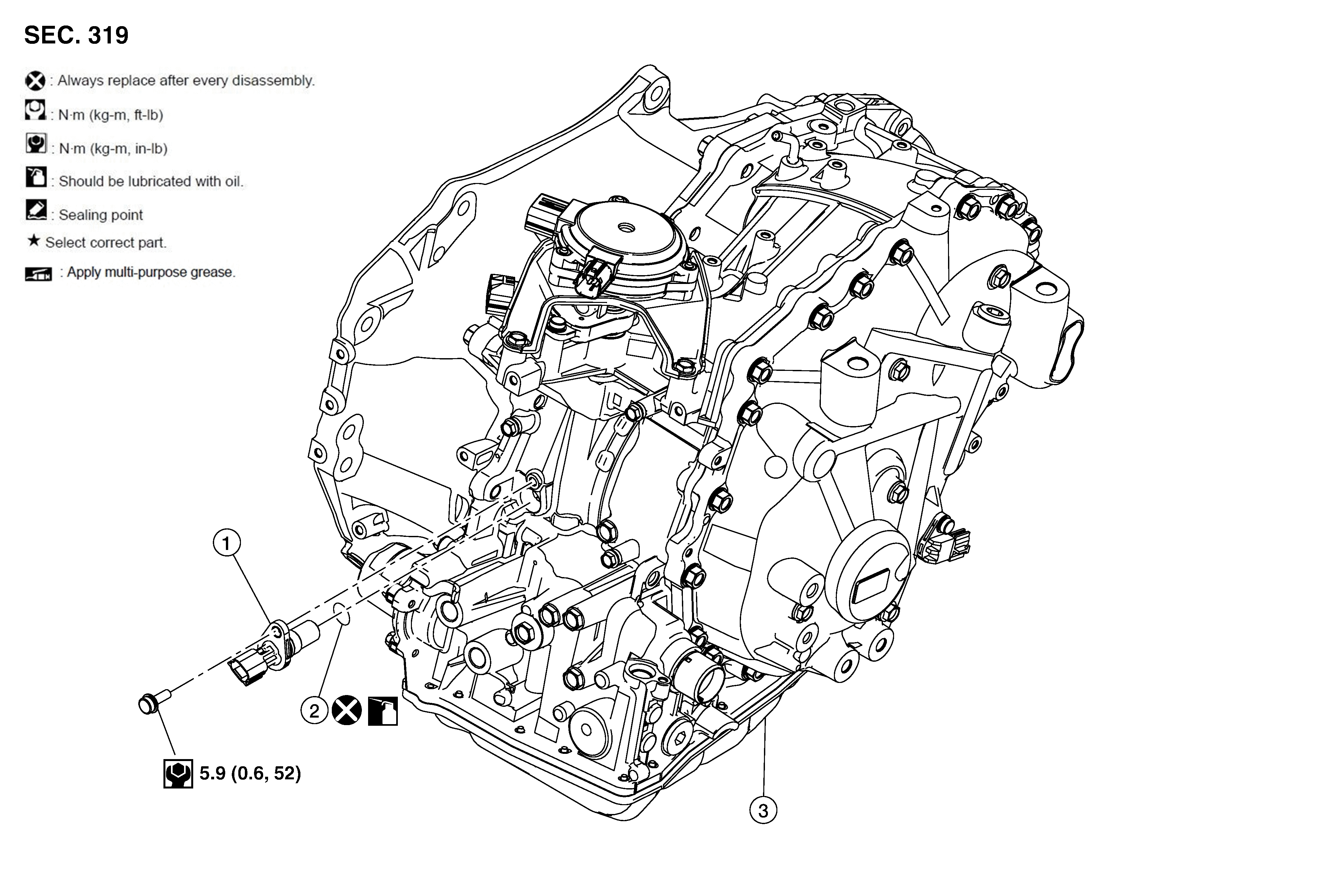

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Input speed sensor
2.
O-ring
3.
Transaxle assembly
Courtesy of NISSAN NORTH AMERICA, INC.
