Transmission
›
Automatic Trans
›
Automatic Transmission
›
Removal And Installation
›
Output Speed Sensor
›

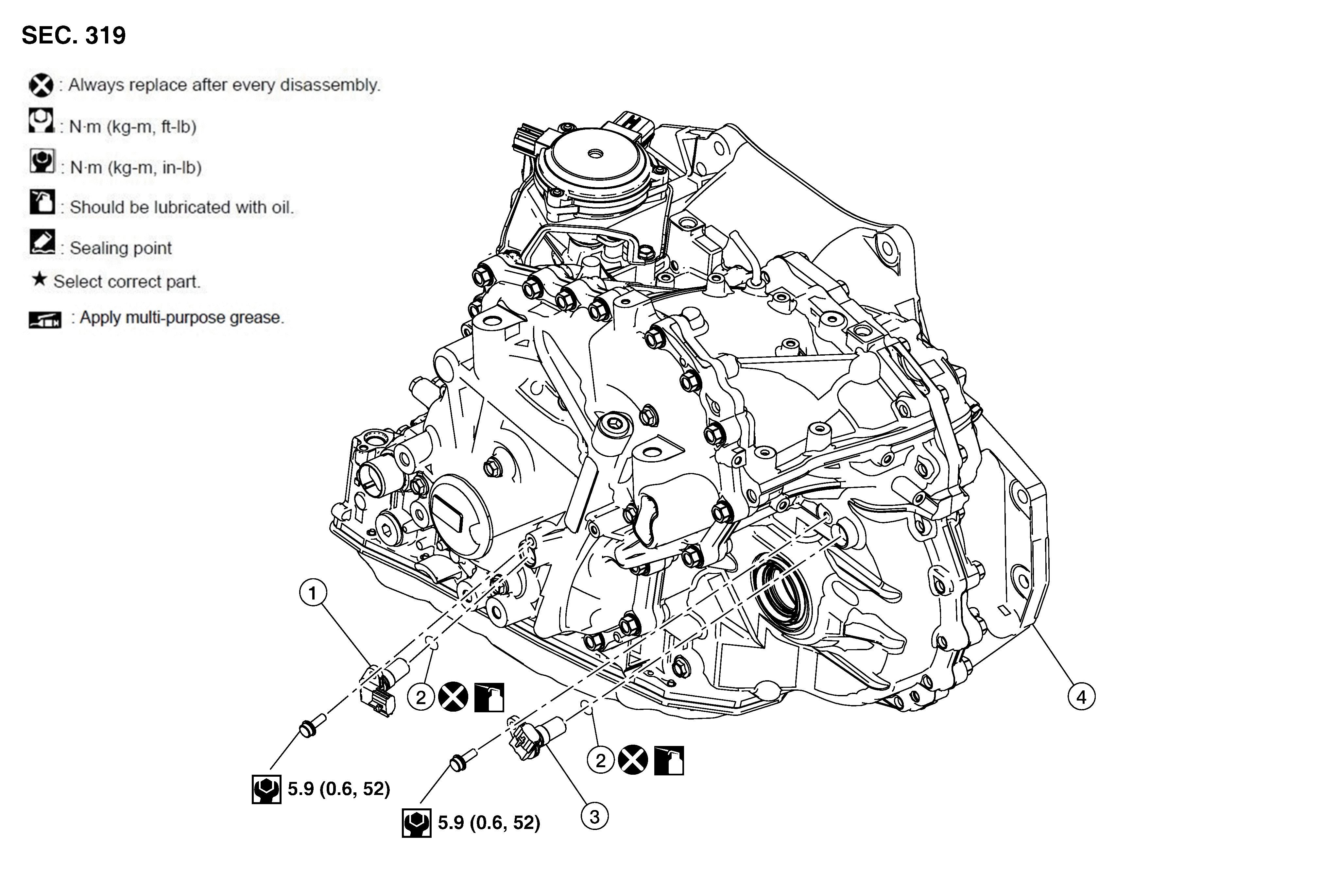

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Primary speed sensor
2.
O-ring
3.
Output speed sensor
4.
Transaxle assembly
Courtesy of NISSAN NORTH AMERICA, INC.
