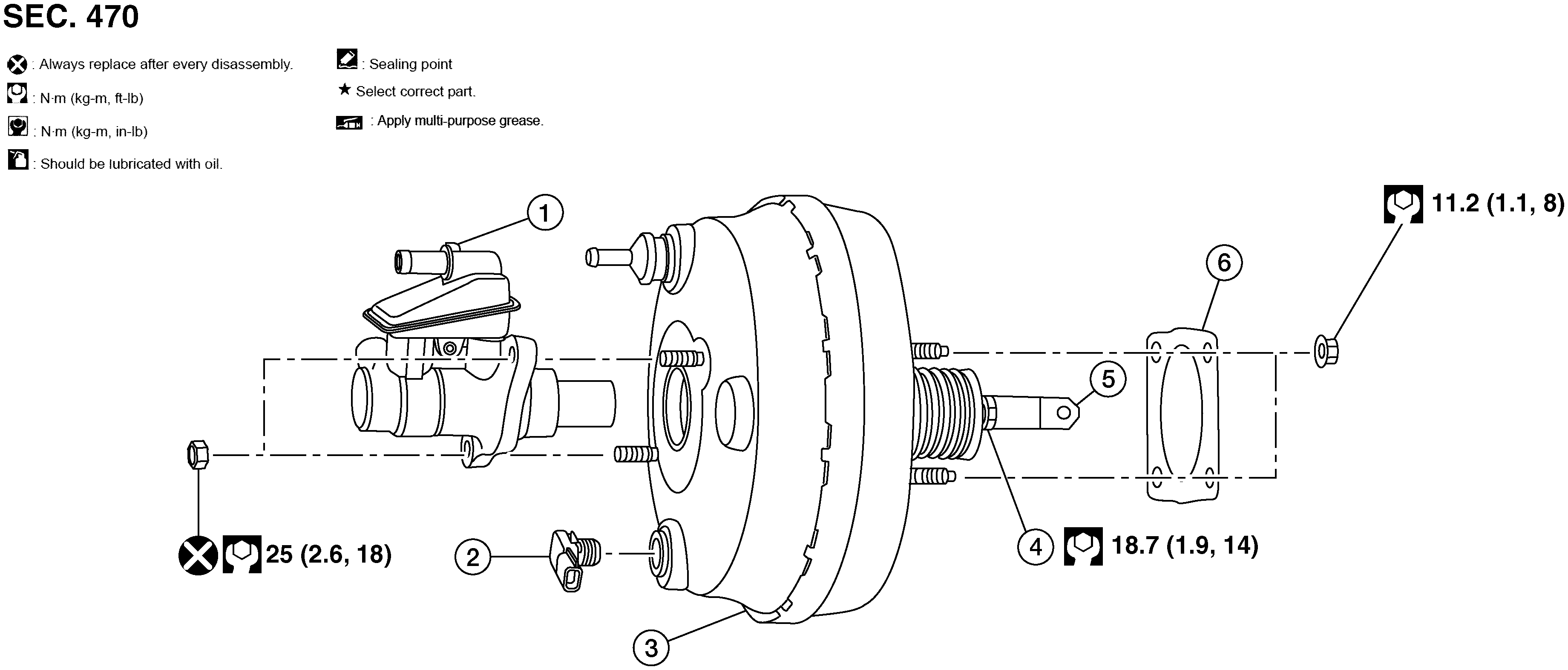

Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Master cylinder assembly	2.	Brake booster pressure sensor	3.	Brake booster
4.	Lock nut	5.	Clevis	6.	Gasket
