Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

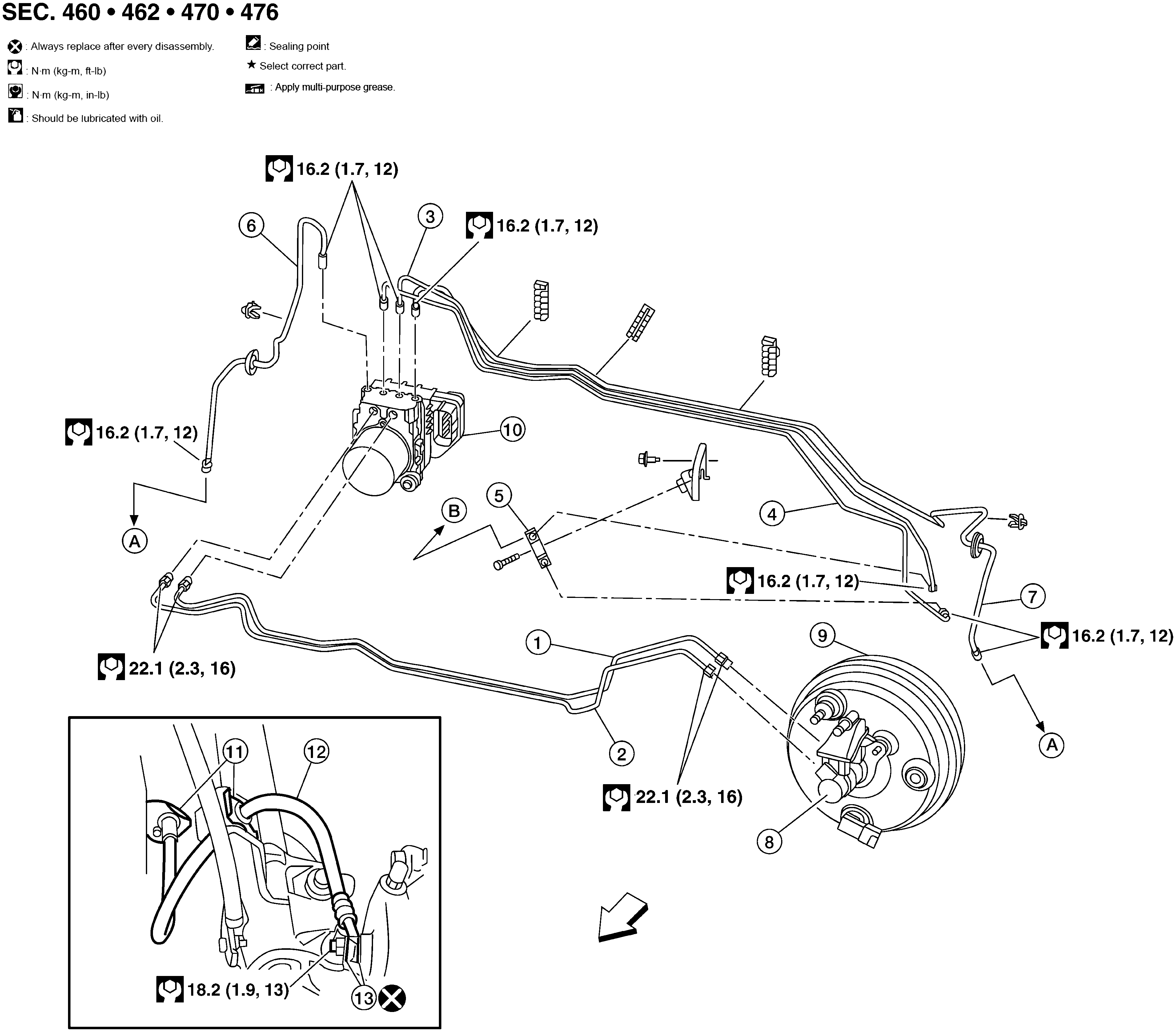

Fig 1: Front Brake Piping Components With Torque Specifications
GNSAWFIA0952Z-952SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Master cylinder brake pipe assembly (rear)

2.

Master cylinder brake pipe assembly (front)

3.

ABS actuator to connector brake pipe assembly (RH)

4.

ABS actuator to connector brake pipe assembly (LH)

5.

Brake pipe connector

6.

Brake pipe assembly (RH) (front)

7.

Brake pipe assembly (LH) (front)

8.

Master cylinder assembly

9.

Brake booster

10.

ABS actuator and electric unit (control unit)

11.

Lock plate

12.

Front brake hose

13.

Copper sealing washer

A.

To front brake hose

B.

To rear brake pipe. Refer to Exploded View .

SYMBOL

Front
