Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the storage box. Refer to Removal and Installation .

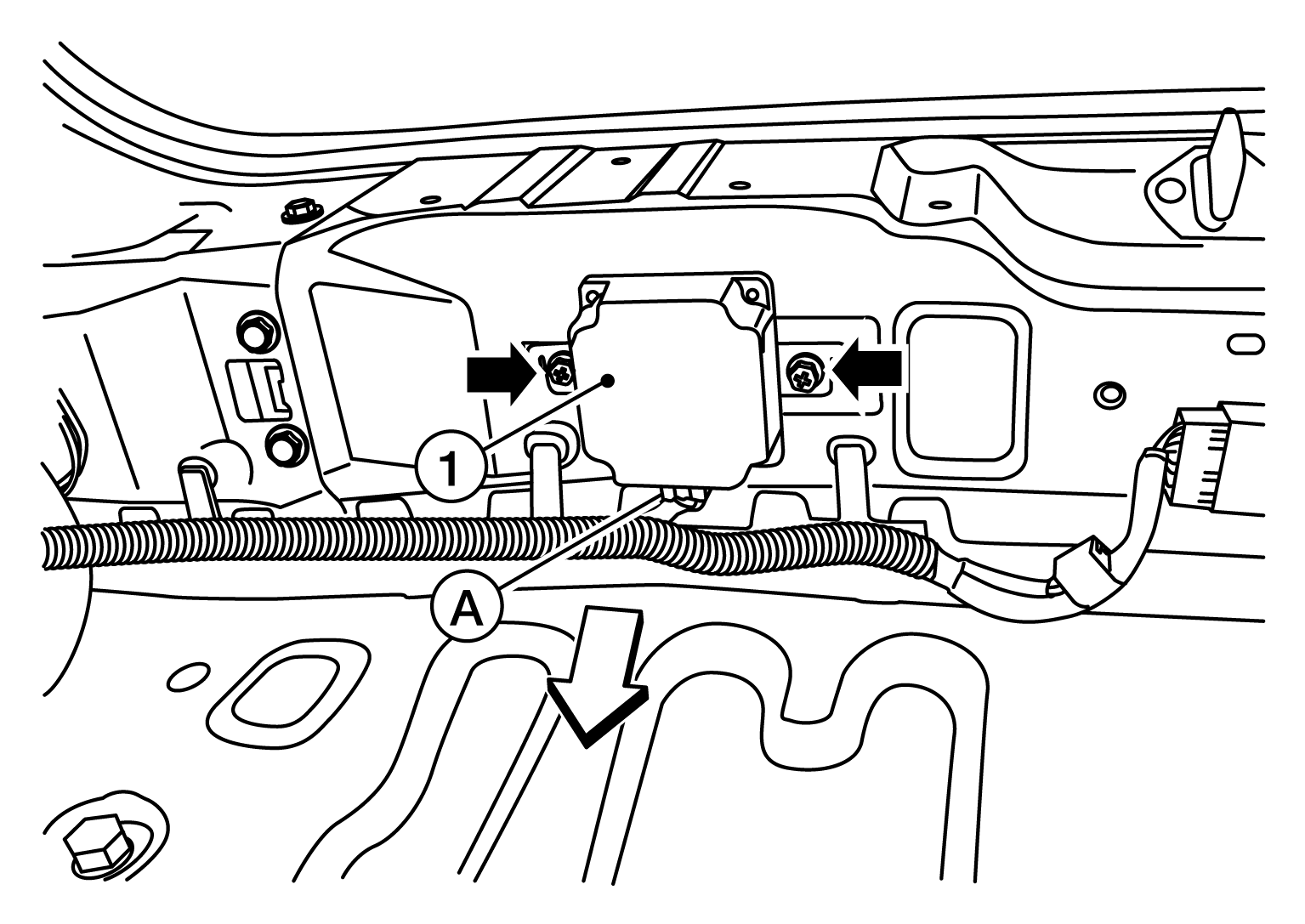

- Disconnect the harness connector (A) from the ADAS control unit (1).
- Remove the bolts (
).
- Lift upward to remove ADAS control unit (1).
