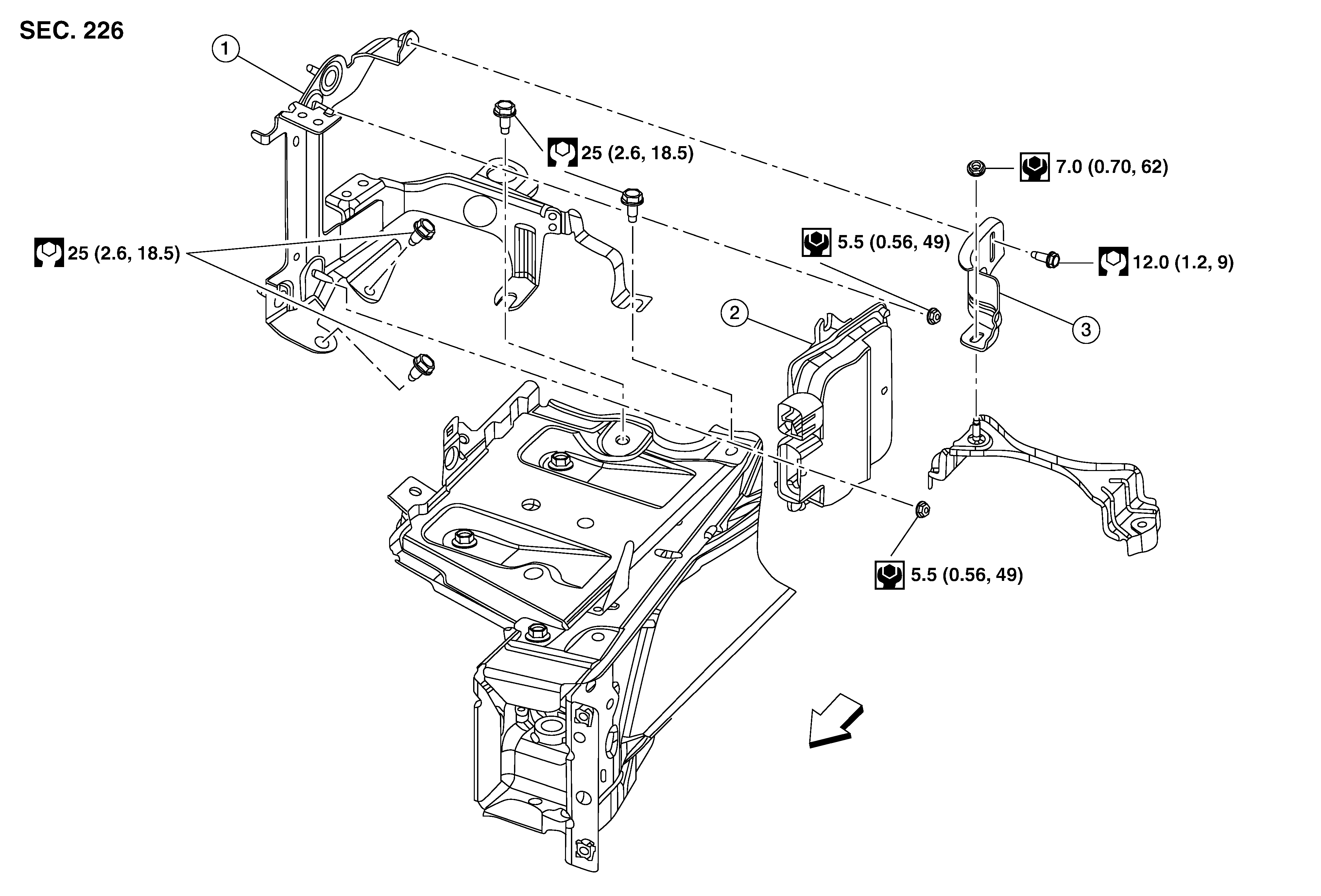

Exploded View

GNSALBIA0585Z-585

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Electric intake valve timing control module bracket	2.	Electric intake valve timing control module	3.	ECM cover
	Front
