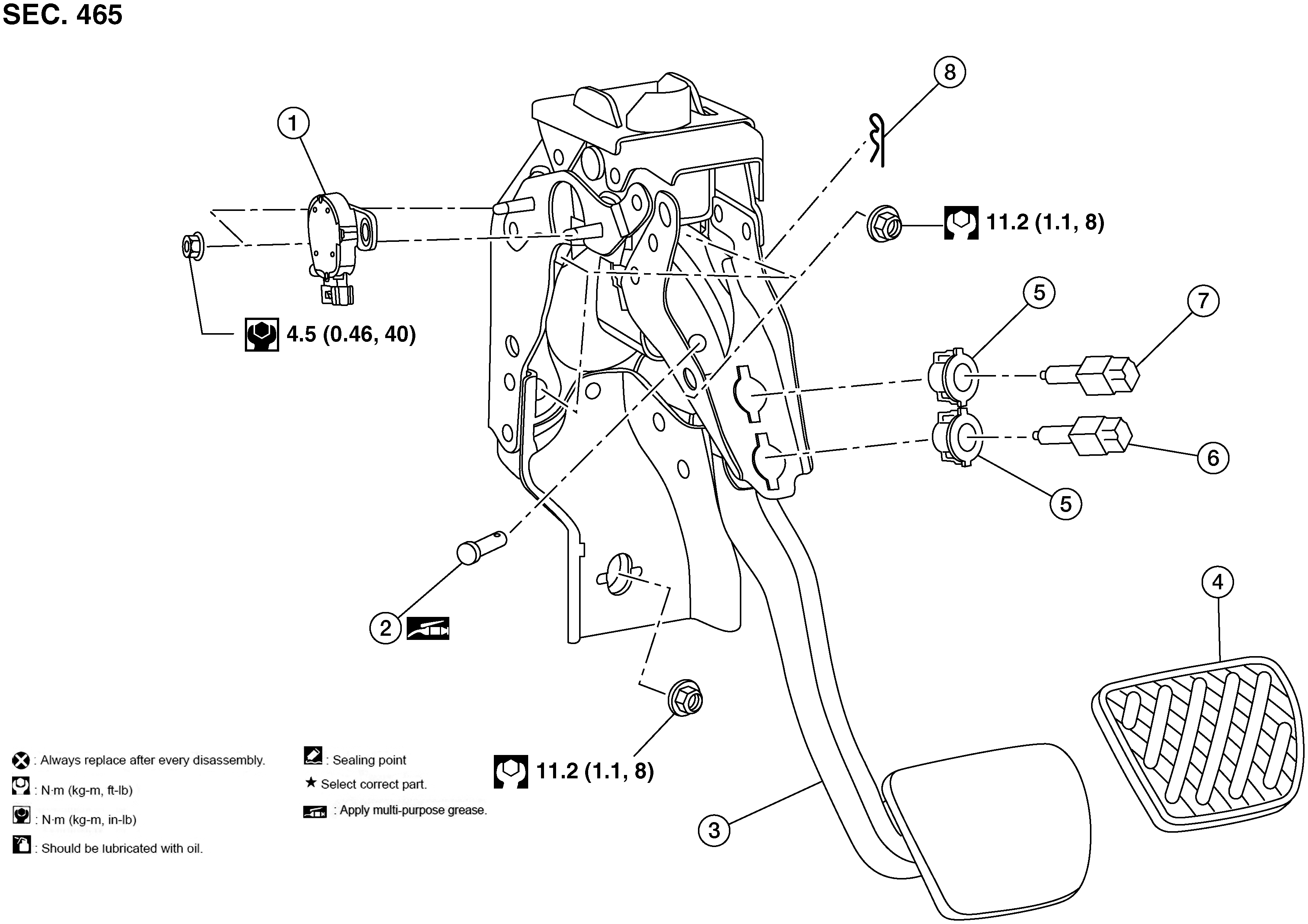

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Brake stroke sensor (if equipped)
|
2.
|
Clevis pin
|
3.
|
Brake pedal
|
|
4.
|
Brake pedal pad
|
5.
|
Clip
|
6.
|
Stop lamp switch
|
|
7.
|
Brake pedal position switch
|
8.
|
Snap pin
|
