System Diagram

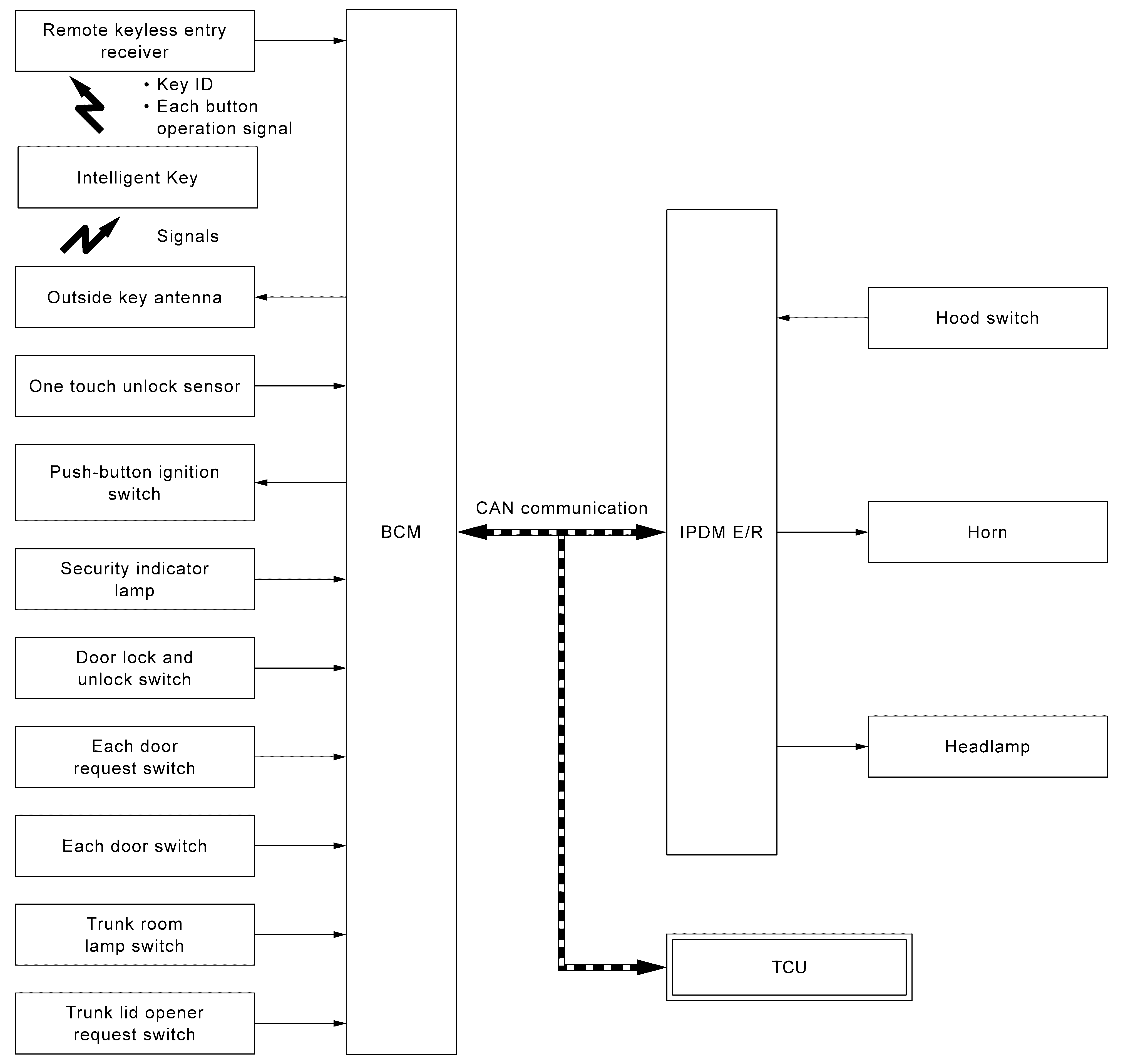

Except For Mexico

GNSILL0258201Courtesy of NISSAN NORTH AMERICA, INC.

For Mexico

GNSJMKIB6286GB-286Courtesy of NISSAN NORTH AMERICA, INC.
