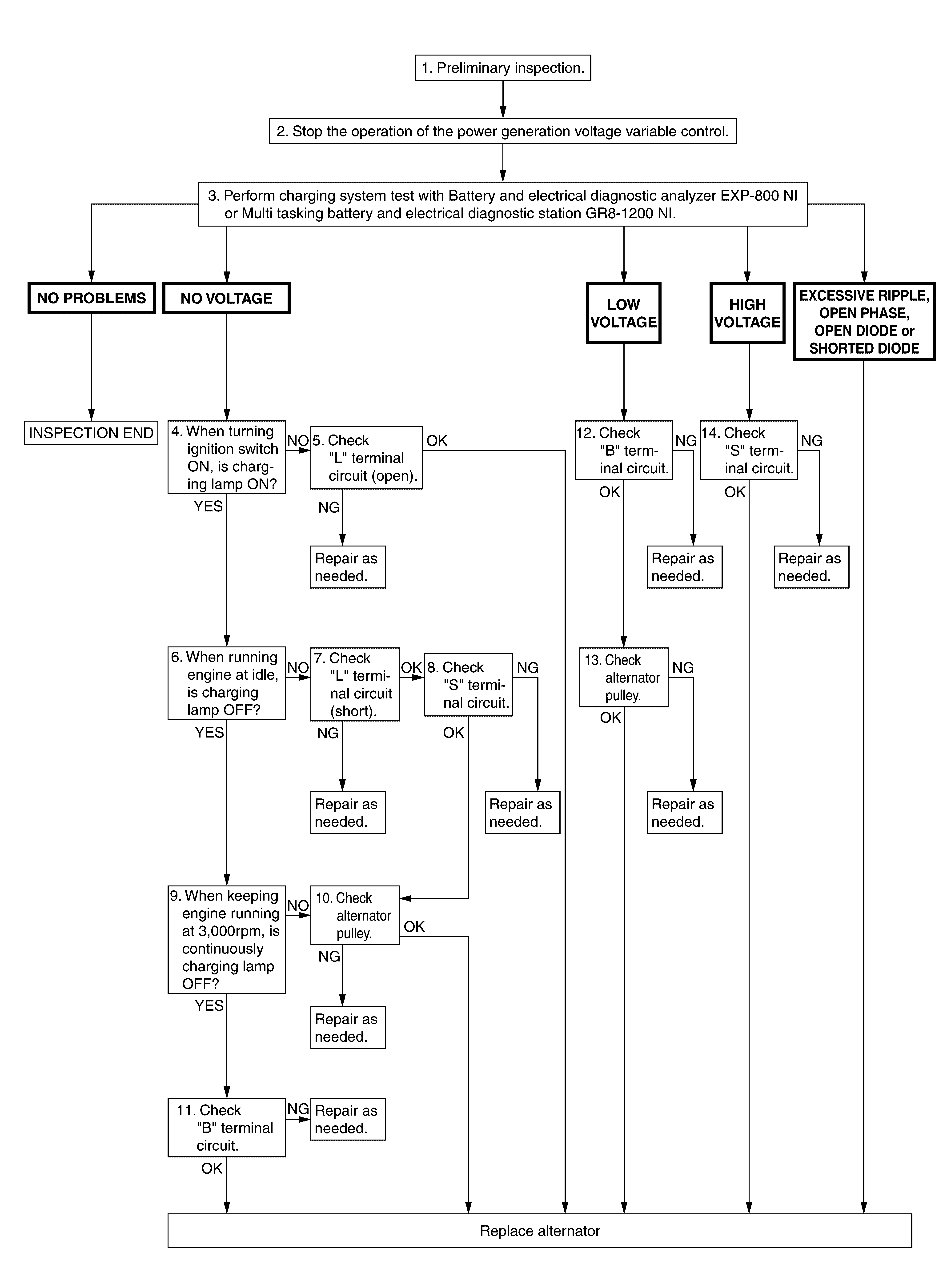

Home › Infiniti › 2021 › Q50 Pure, AWD › Repair and Diagnosis › Electrical › Charging Systems › Charging System (Diagnostics) › Basic Inspection › Charging System › Diagnosis And Repair Work Flow › Work Flow › Overall Sequence
