Direct Adaptive Steering System

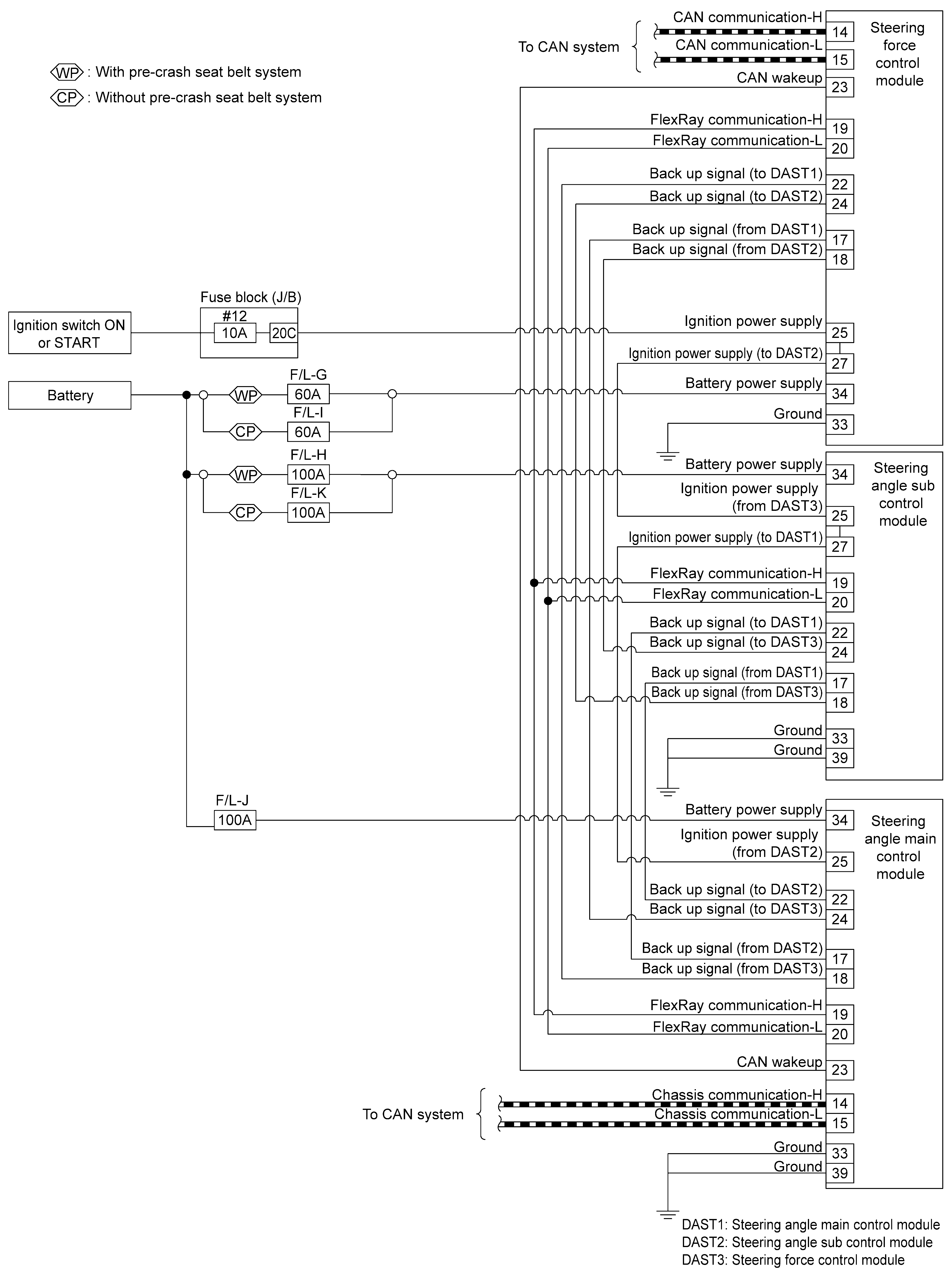

GNSILL0232533Courtesy of NISSAN NORTH AMERICA, INC.
GNSJSGIA1862GB-862Courtesy of NISSAN NORTH AMERICA, INC.

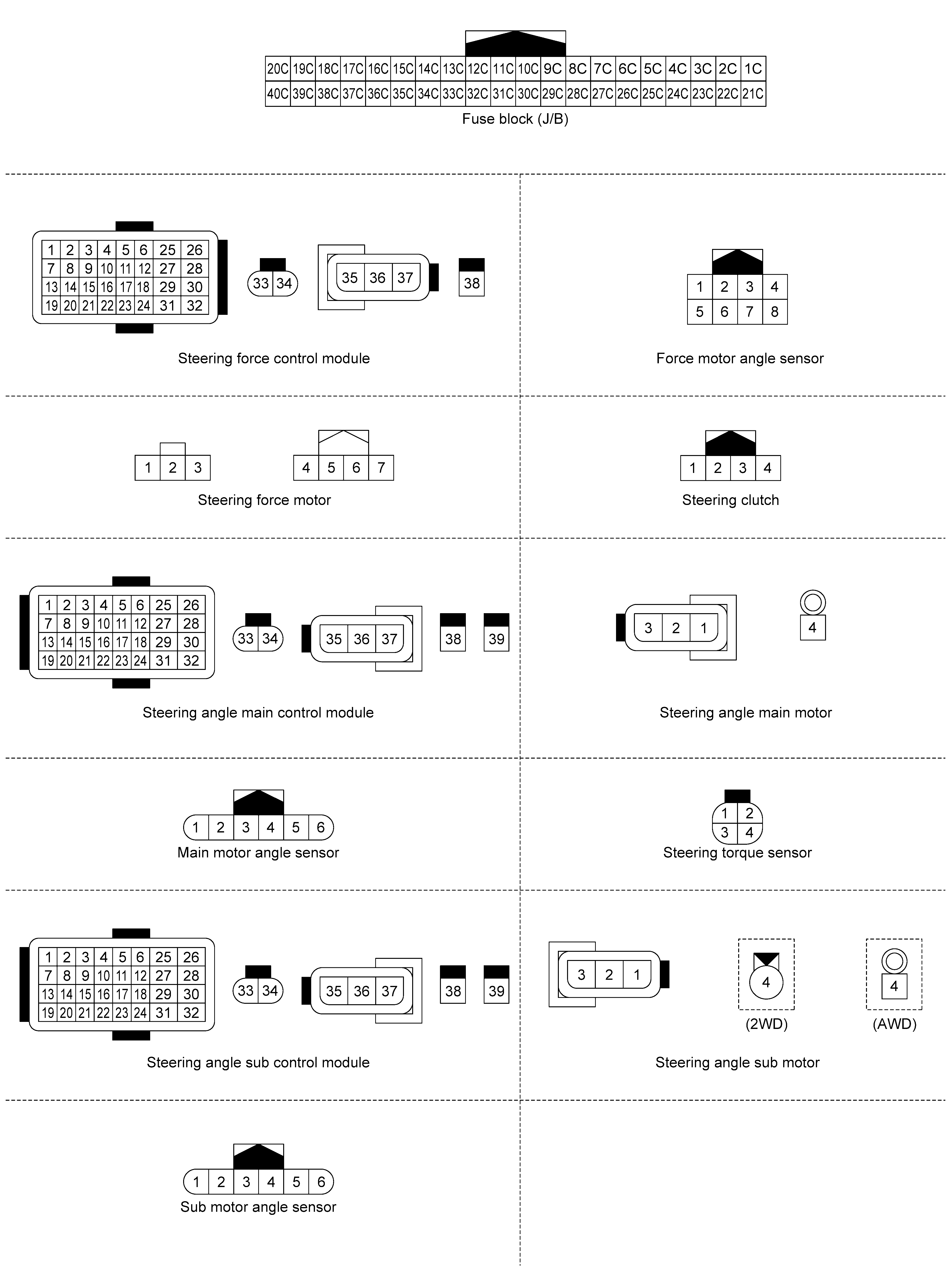

GNSILL0274847Courtesy of NISSAN NORTH AMERICA, INC.
