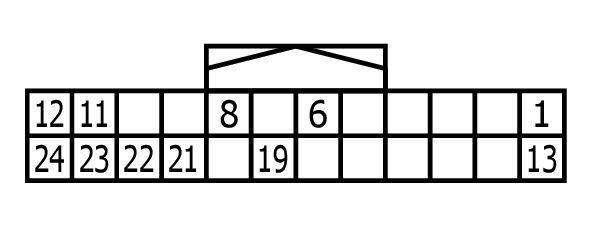

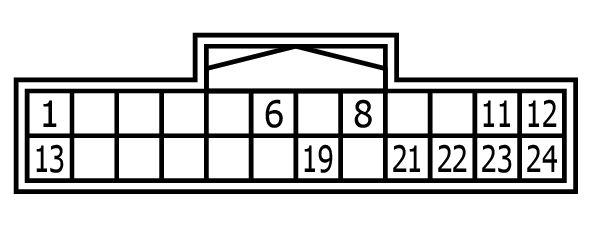

AFS Control Unit Connector End View (M4)
Connector Types: TH24FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | L | CAN-H |
| 6 | BR | HEIGHT SENSOR SIGNAL |
| 8 | GR | SWIVEL ACTUATOR LIN SIGNAL |
| 11 | B | GROUND |
| 12 | R | IGNITION POWER SUPPLY |
| 13 | P | CAN-L |
| 19 | P | SWIVEL ACTUATOR GROUND |
| 21 | LG | HEIGHT SENSOR POWER SUPPLY |
| 22 | SB | AIMING MOTOR DRIVE SIGNAL |
| 23 | GR | HEIGHT SENSOR GROUND |
| 24 | B | AIMING MOTOR GROUND |
