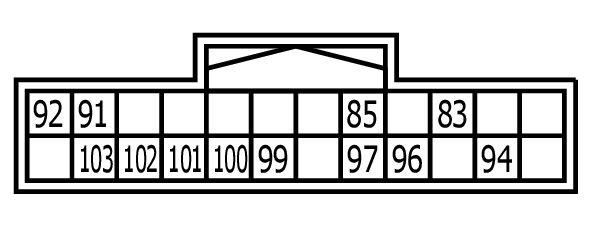

BCM (Body Control Module) Connector End View (M15)
Connector Types: TH24FGY-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 83 | L | TR LID OPEN REQ SW |
| 85 | P | TR ROOM LAMP CONT |
| 91 | GR | TRUNK LID OPEN |
| 92 | W | TURN SIG RH OUTPUT (REAR) |
| 94 | GR | PASSENGER DOOR SW |
| 96 | V | DRIVER DOOR SW |
| 97 | R | TR ROOM LAMP SW |
| 99 | GR | INSIDE KEY ANT (TRUNK) - |
| 100 | W | INSIDE KEY ANT (TRUNK) + |
| 101 | BG | REAR BMPR ANT - |
| 102 | LG | REAR BMPR ANT + |
| 103 | Y | TURN SIG LH OUTPUT (REAR) |
