AWD models

FUNCTIONS WITHIN THE SYSTEM

All Wheel Drive function.

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

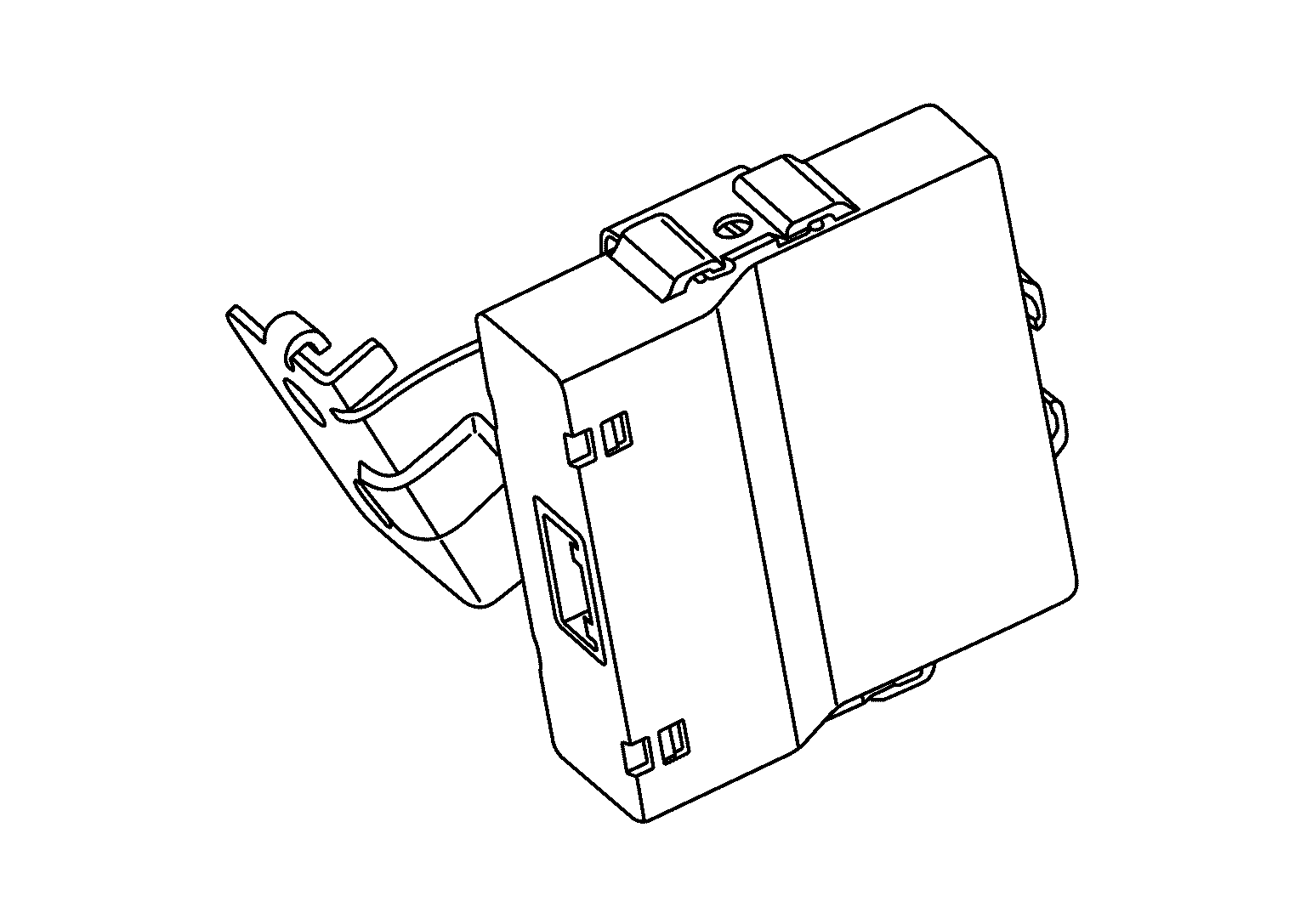

AWD Control Unit

• AWD control unit controls driving force distribution by signals from each sensor from rear wheel driving mode (0:100) to 4-wheel driving mode (50:50).

  Courtesy of NISSAN NORTH AMERICA, INC.

• Rear wheel driving conditions is available by fail-safe function if malfunction is detected in AWD system.

AWD actuator relay is integrated with AWD control unit, and supplies AWD solenoid with voltage.

Electric Controlled Coupling

Electric controlled coupling is installed in transfer and transmits driving force to front final drive. For operation, Refer to Structure and Operation .

Courtesy of NISSAN NORTH AMERICA, INC.

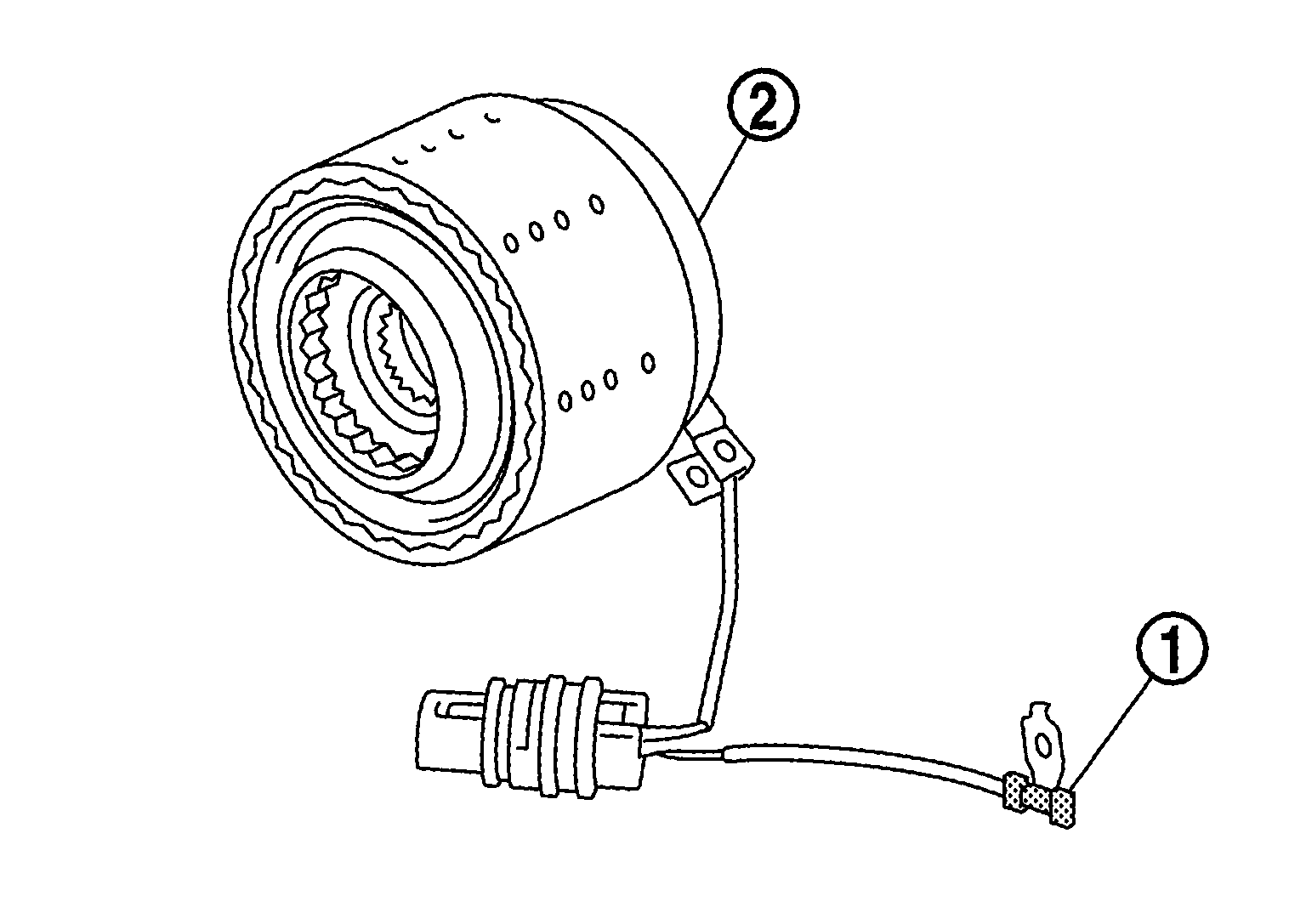

AWD Solenoid

AWD solenoid is integrated with electric controlled coupling , and controls electric controlled coupling by command current from AWD control unit.

Courtesy of NISSAN NORTH AMERICA, INC.

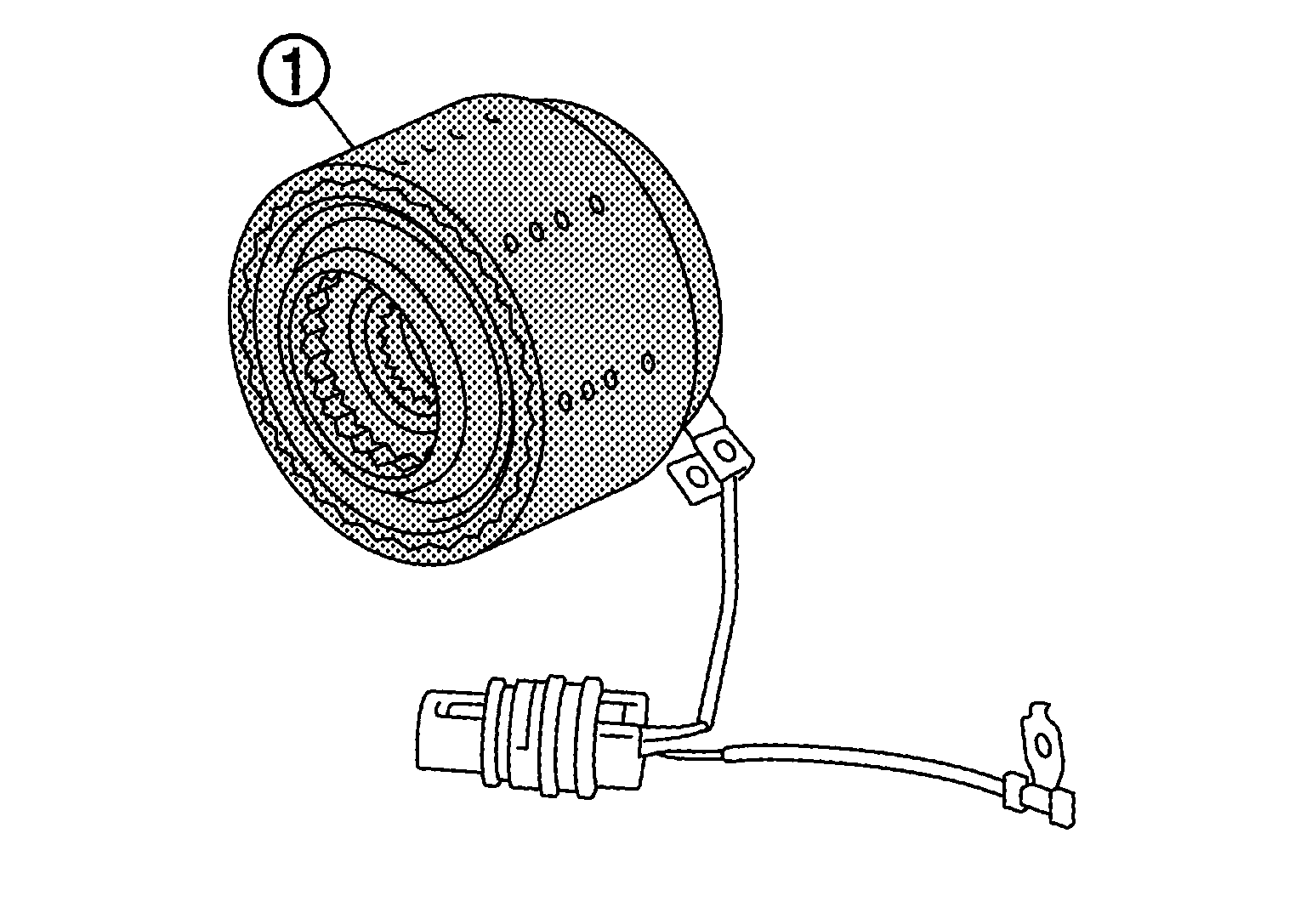

Transfer Fluid Temperature Sensor

• Transfer fluid temperature sensor is integrated with electric controlled coupling .

  Courtesy of NISSAN NORTH AMERICA, INC.

• Transfer fluid temperature sensor detects the transfer fluid temperature and transmits a signal to AWD control unit.

  Courtesy of NISSAN NORTH AMERICA, INC.

• The electrical resistance of the sensor decreases as temperature increases.

  Courtesy of NISSAN NORTH AMERICA, INC.

INDIVIDUAL OPERATION

At the start, torque distribution for front and rear wheels is fixed by electric control and stable start is achieved.

Makes possible stable driving, with no wheel spin, on snowy roads or other slippery surfaces.

PARTS LOCATION

Refer to Component Location .
