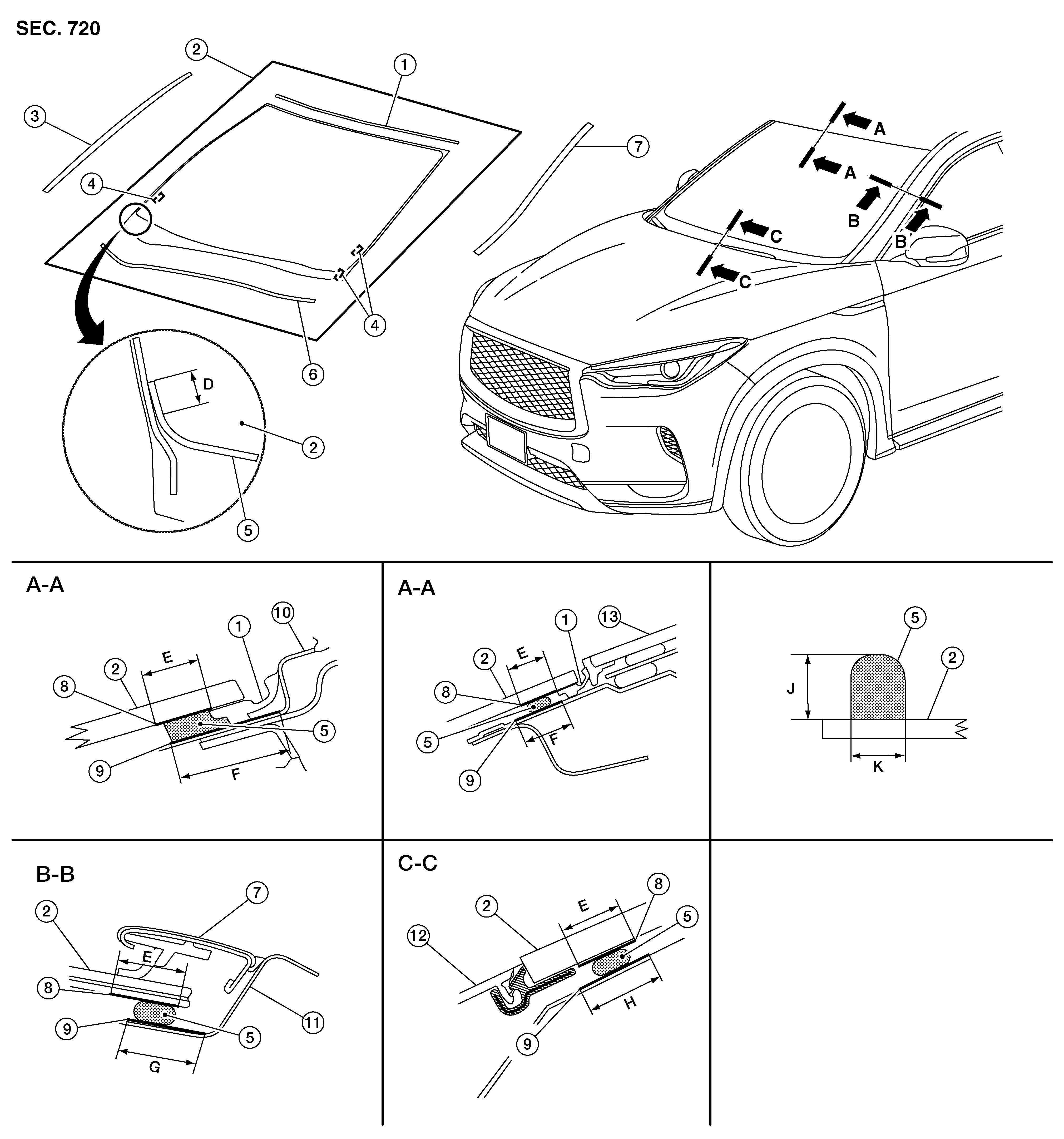

Exploded View

1.

Windshield glass molding

2.

Windshield glass

3.

Windshield glass side molding (RH)

4.

Spacer

5.

Adhesive

6.

Windshield glass lower molding

7.

Windshield glass side molding (LH)

8.

Glass primer

9.

Body primer

10.

Metal roof

11.

Body side outer

12.

Cowl top cover

13.

Front moonroof glass

D.

36.17 mm (1.46 in)

E.

15 mm (0.59 in)

F.

21 mm (0.83 in)

G.

23 mm (0.91 in)

H.

20 mm (0.79 in)

J.

12 + 2, - 0 mm (0.47 + 0.08, - 0 in)

K.

7 + 2, - 0 mm (0.28 + 0.08, - 0 in)
