Disassembly and Assembly (RH): Notes

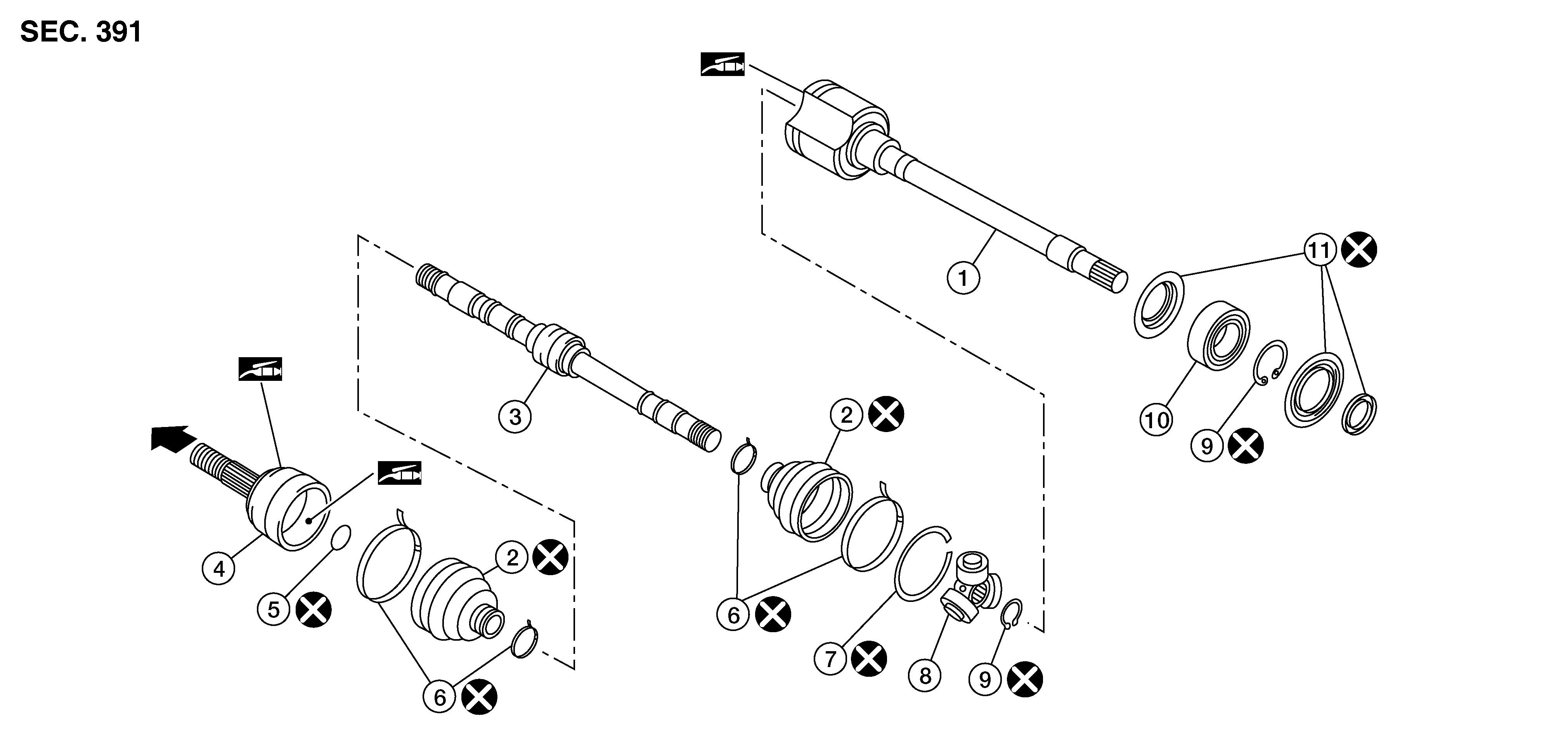

GNSALDIA0091Z-091Courtesy of NISSAN NORTH AMERICA, INC.

1.

Housing

2.

Boot

3.

Shaft with damper

4.

Joint sub - assembly

5.

Circular clip

6.

Boot band

7.

Stopper ring

8.

Spider assembly

9.

Snap ring

10.

Support bearing

11.

Dust shield

SYMBOL

Wheel side

SYMBOL

Fill NISSAN Genuine grease or equivalent.
