Exploded View

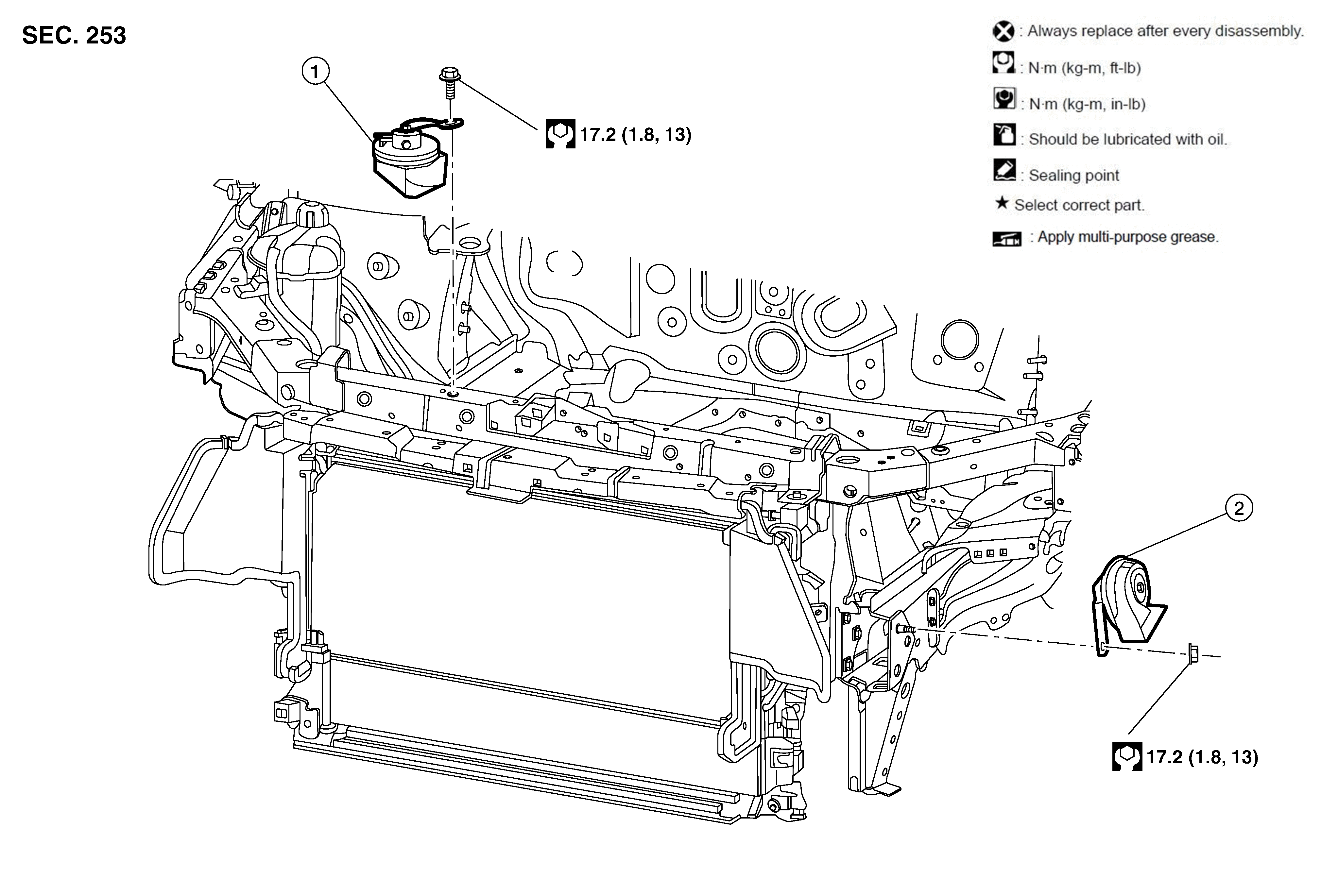

Fig 1: Horn Components With Torque Specifications

GNSALLIA0103Z-103

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Horn (LOW)

2.

Horn (HIGH)
