Exploded View

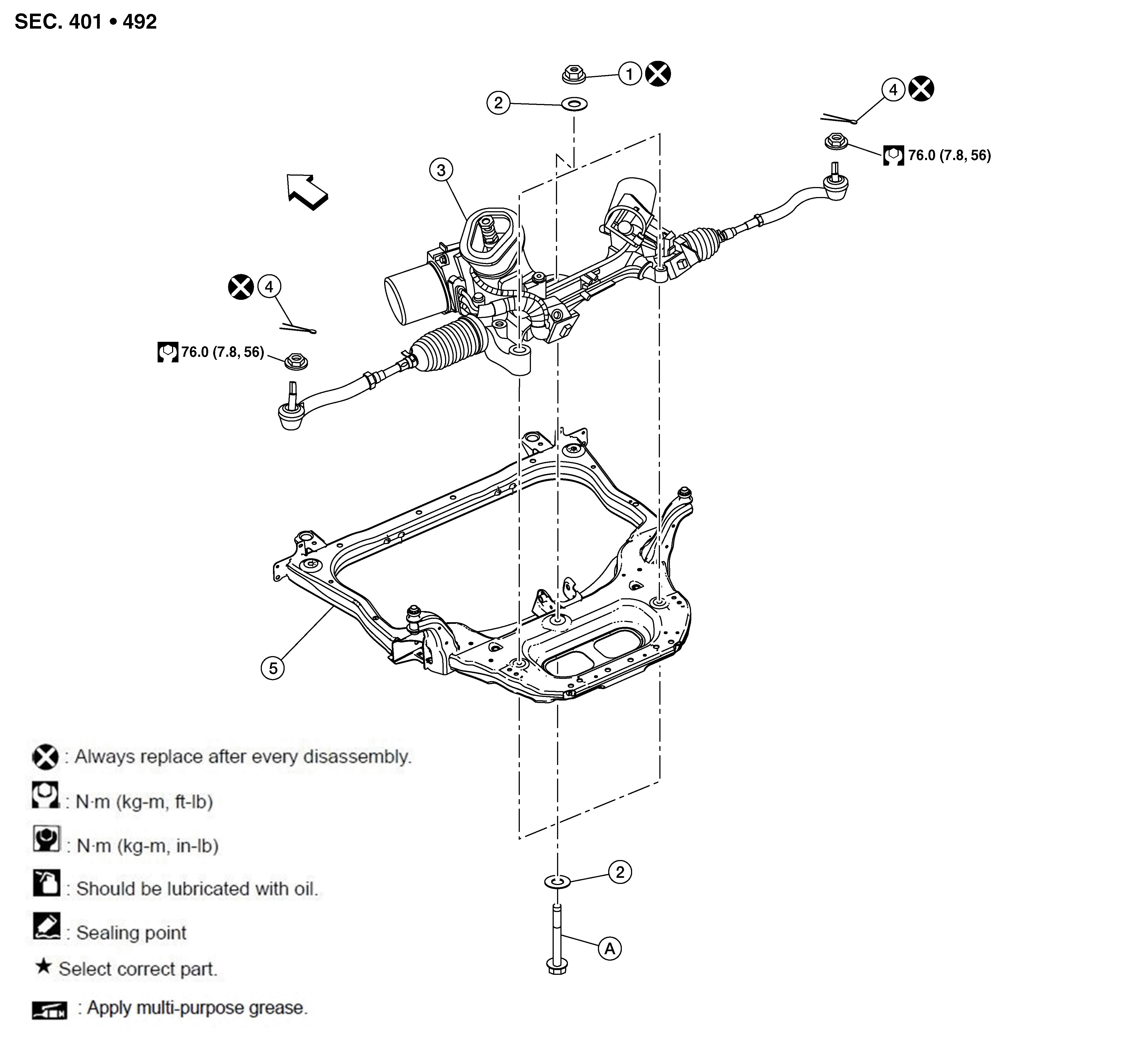

Fig 1: Steering Gear And Linkage Unit With Torque Specifications - Direct Adaptive Steering

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Nut	2.	Washer	3.	Steering gear
4.	Cotter pin	5.	Front suspension member
A.	Refer to Removal and Installation .		Front
