Exploded View

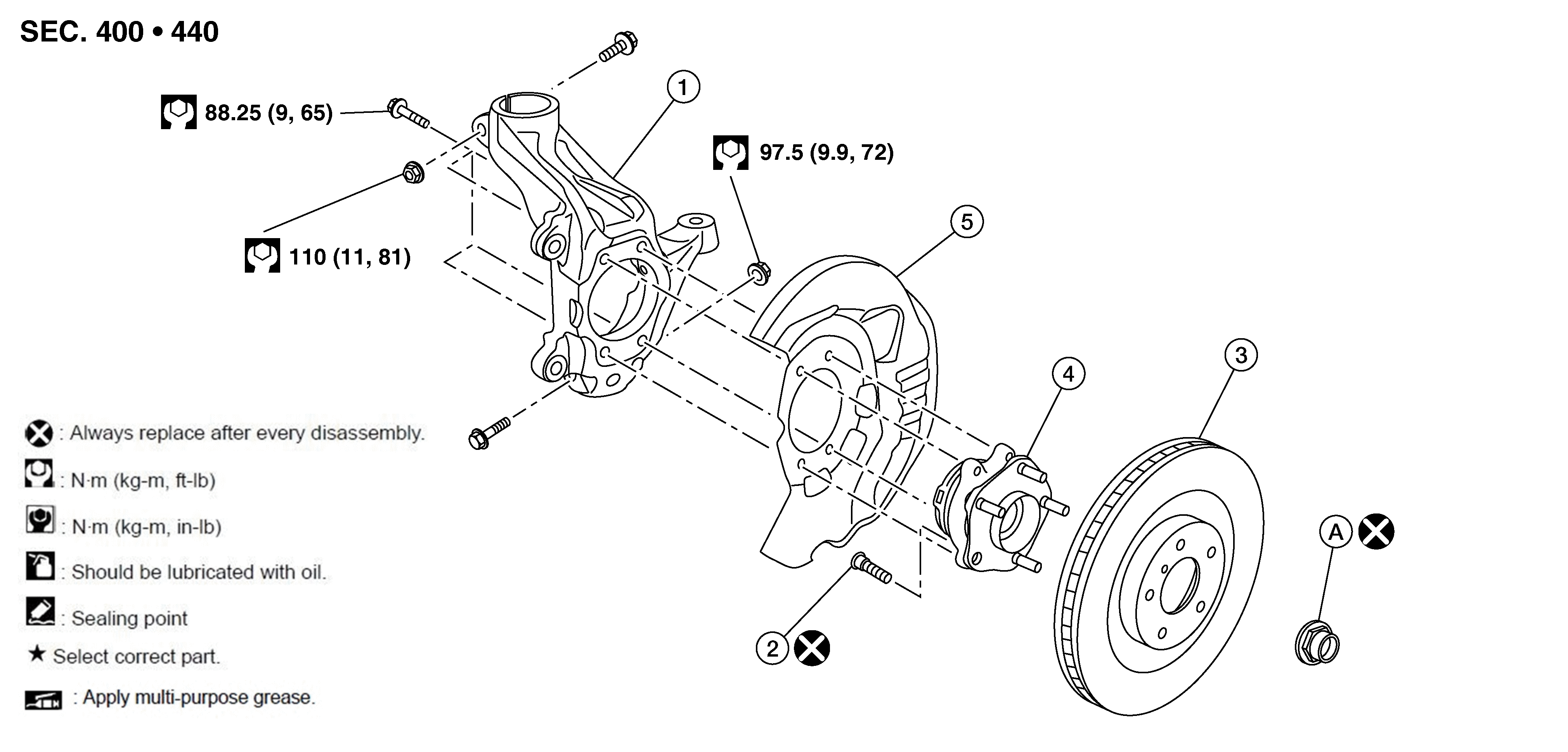

Fig 1: Steering Knuckle Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering knuckle	2.	Wheel stud	3.	Front disc brake rotor
4.	Wheel hub and bearing	5.	Splash guard	A.	Refer to Removal and Installation .
