Exploded View

MECHANICAL STEERING COLUMN

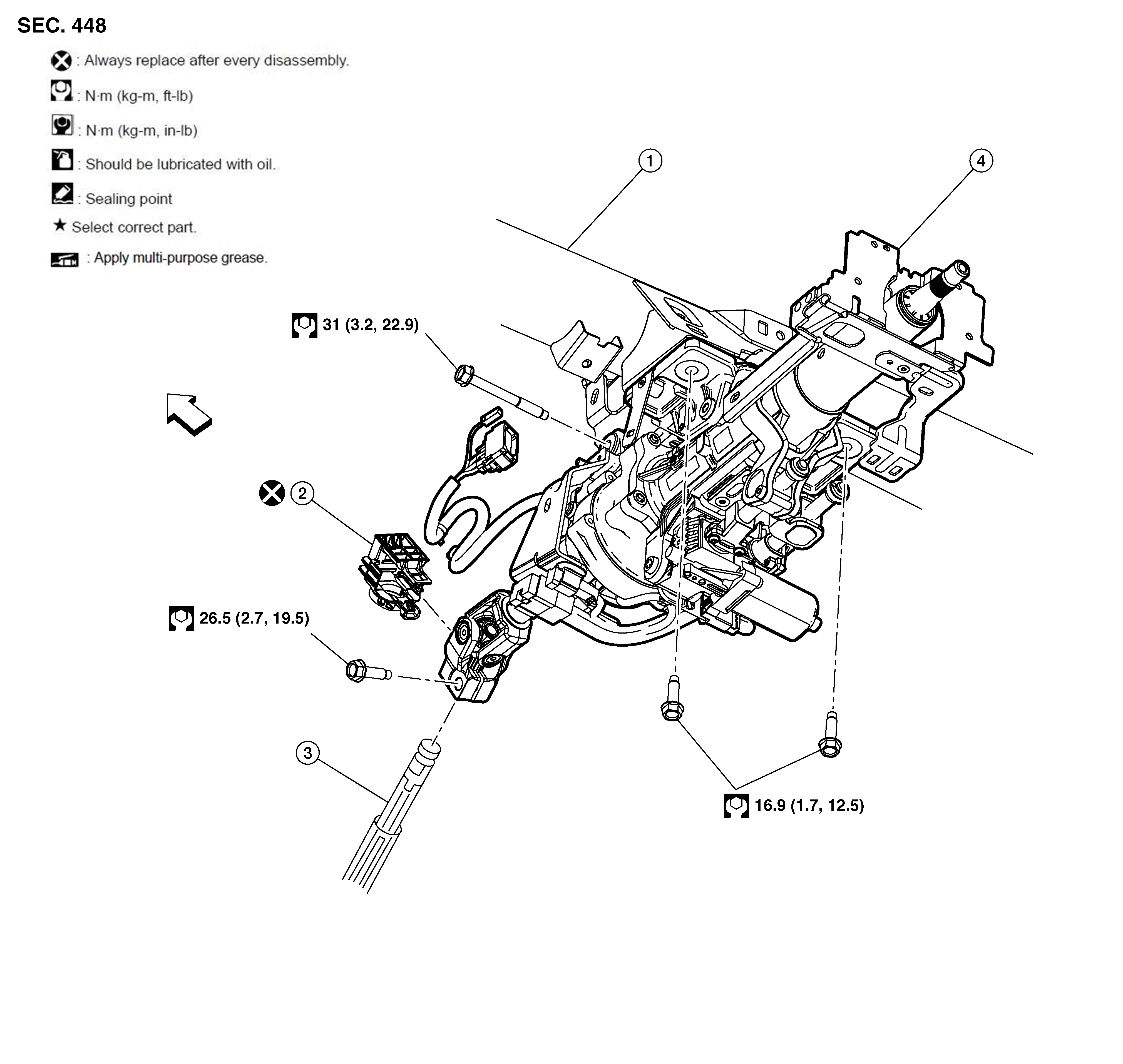

Fig 1: Steering Column With Torque Specifications - Mechanical Steering Column

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Collar	2.	Lower joint	3.	Steering member
4.	Steering column		Front

ELECTRIC STEERING COLUMN

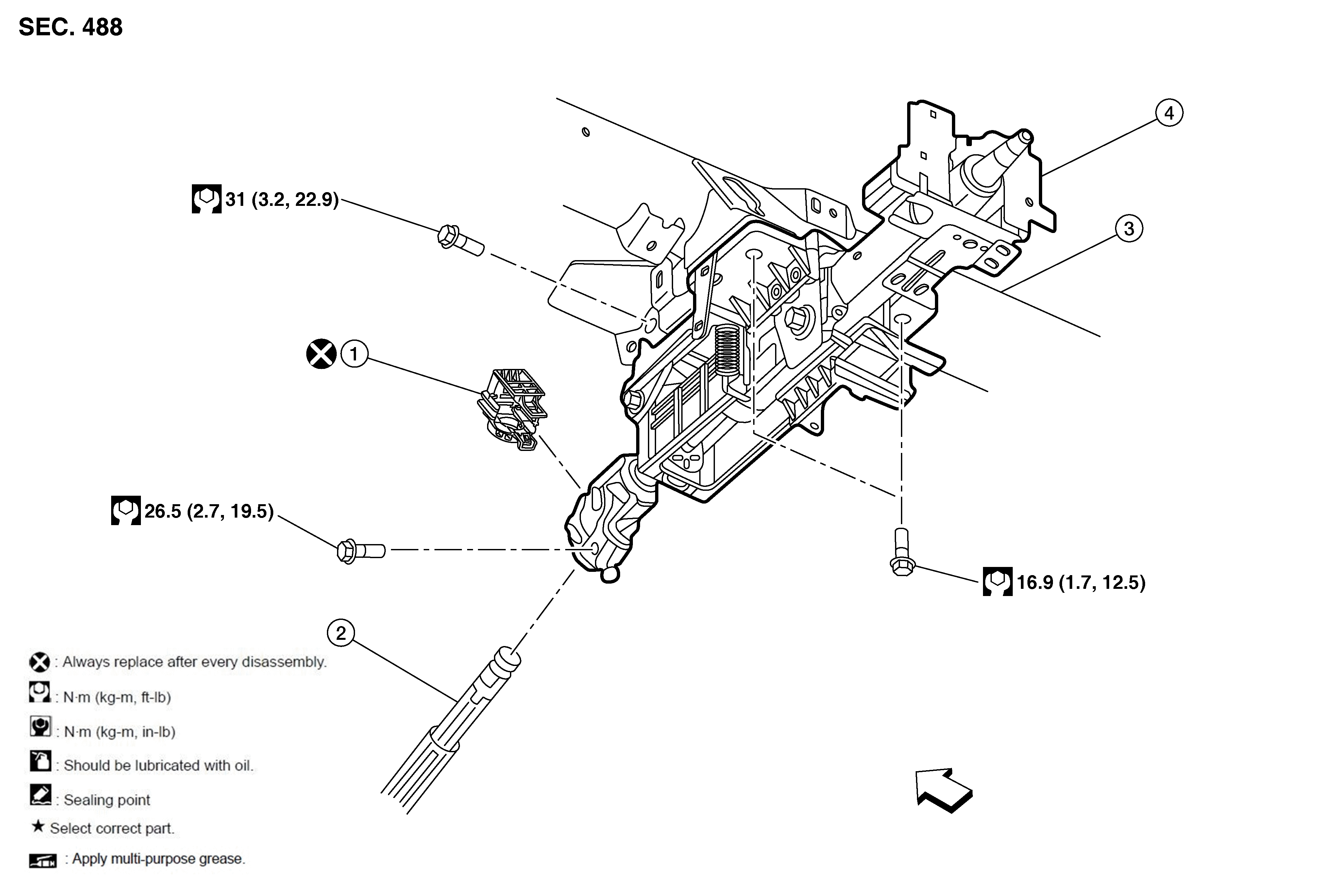

Fig 2: Steering Column Components With Torque Specifications - Electric Steering Column

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering member	2.	Collar	3.	Lower joint
4.	Steering column		Front
