Circuit Diagram

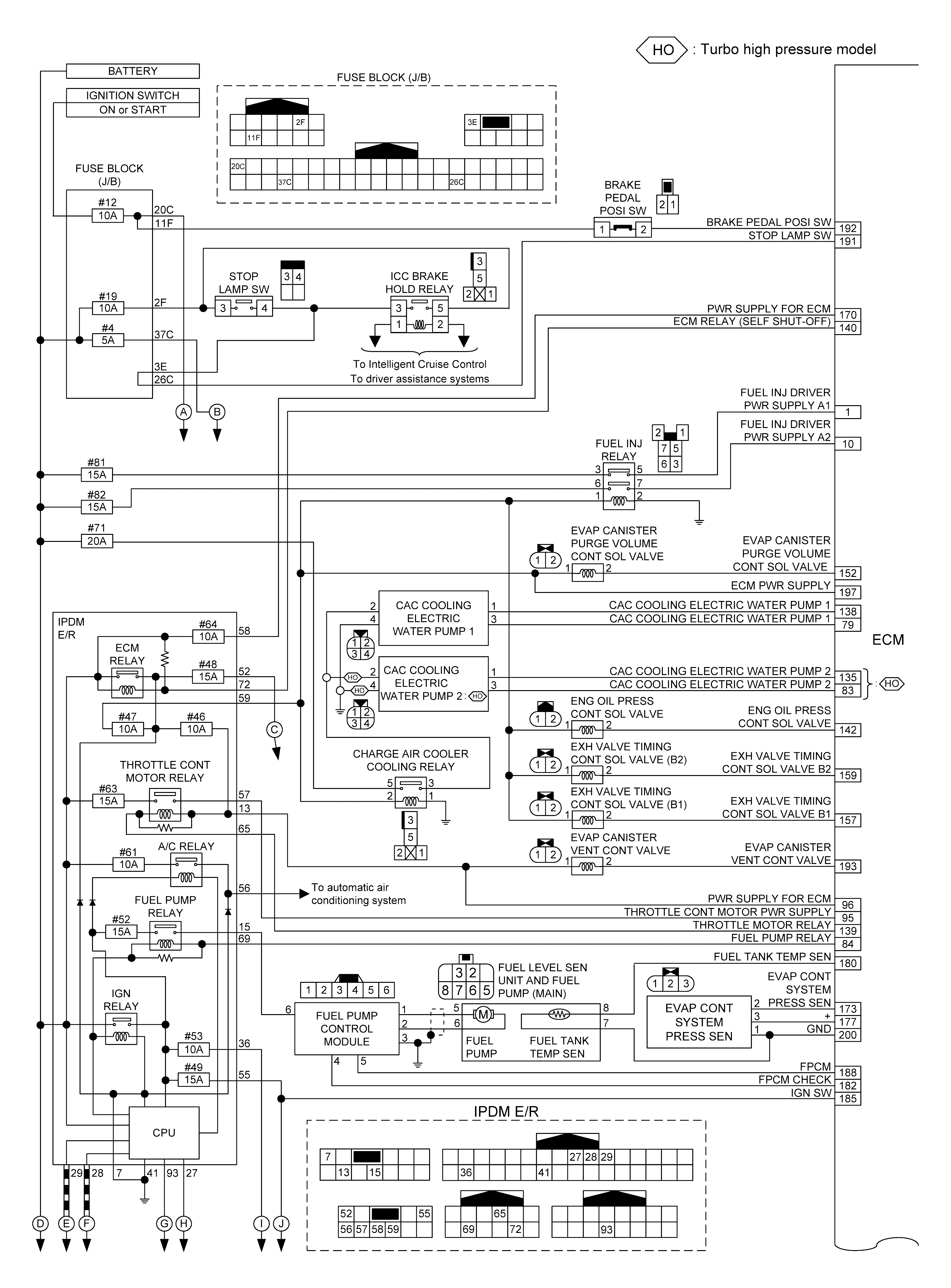

GNSILL0316690Courtesy of NISSAN NORTH AMERICA, INC.

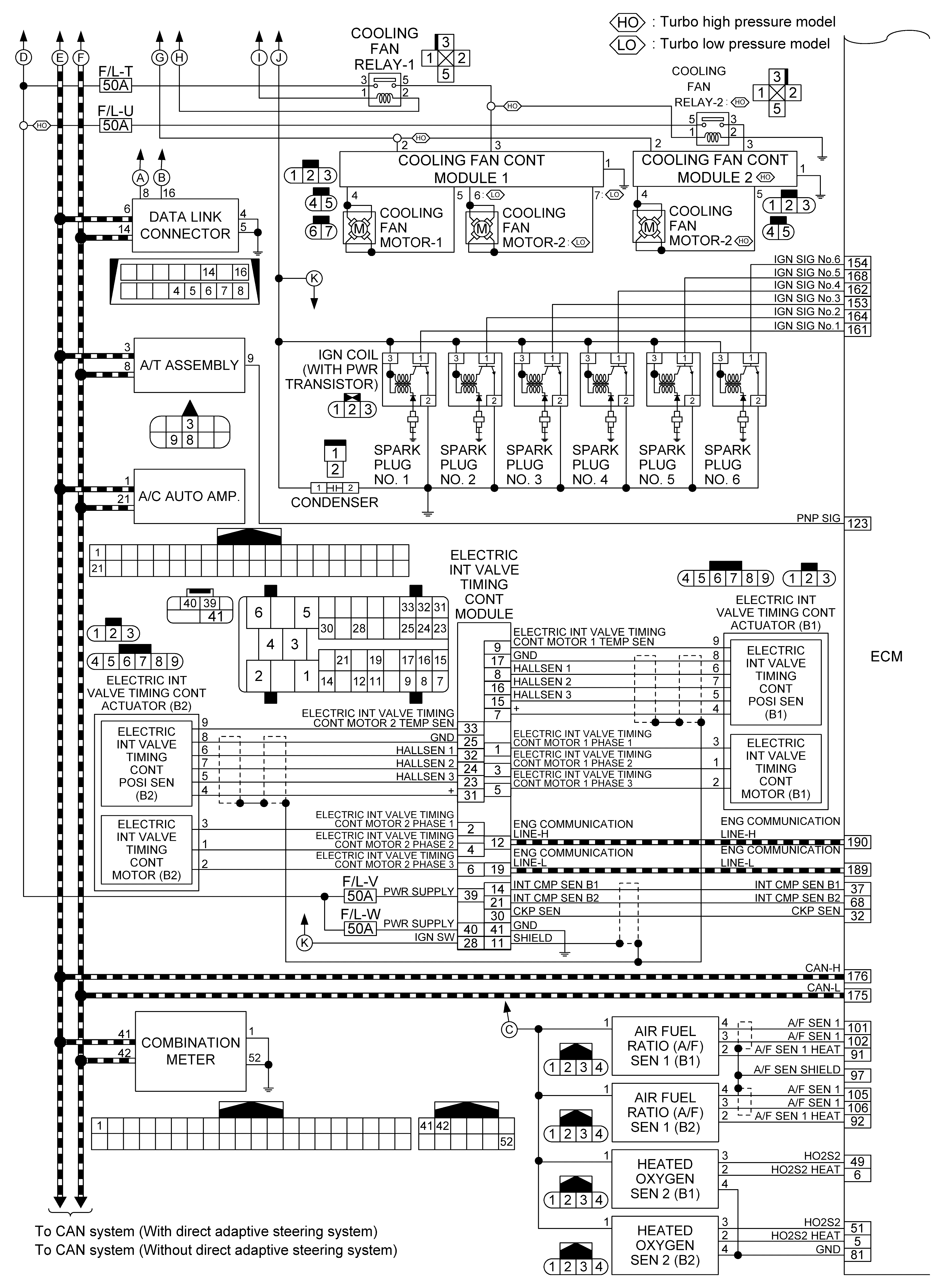

GNSILL0316691Courtesy of NISSAN NORTH AMERICA, INC.

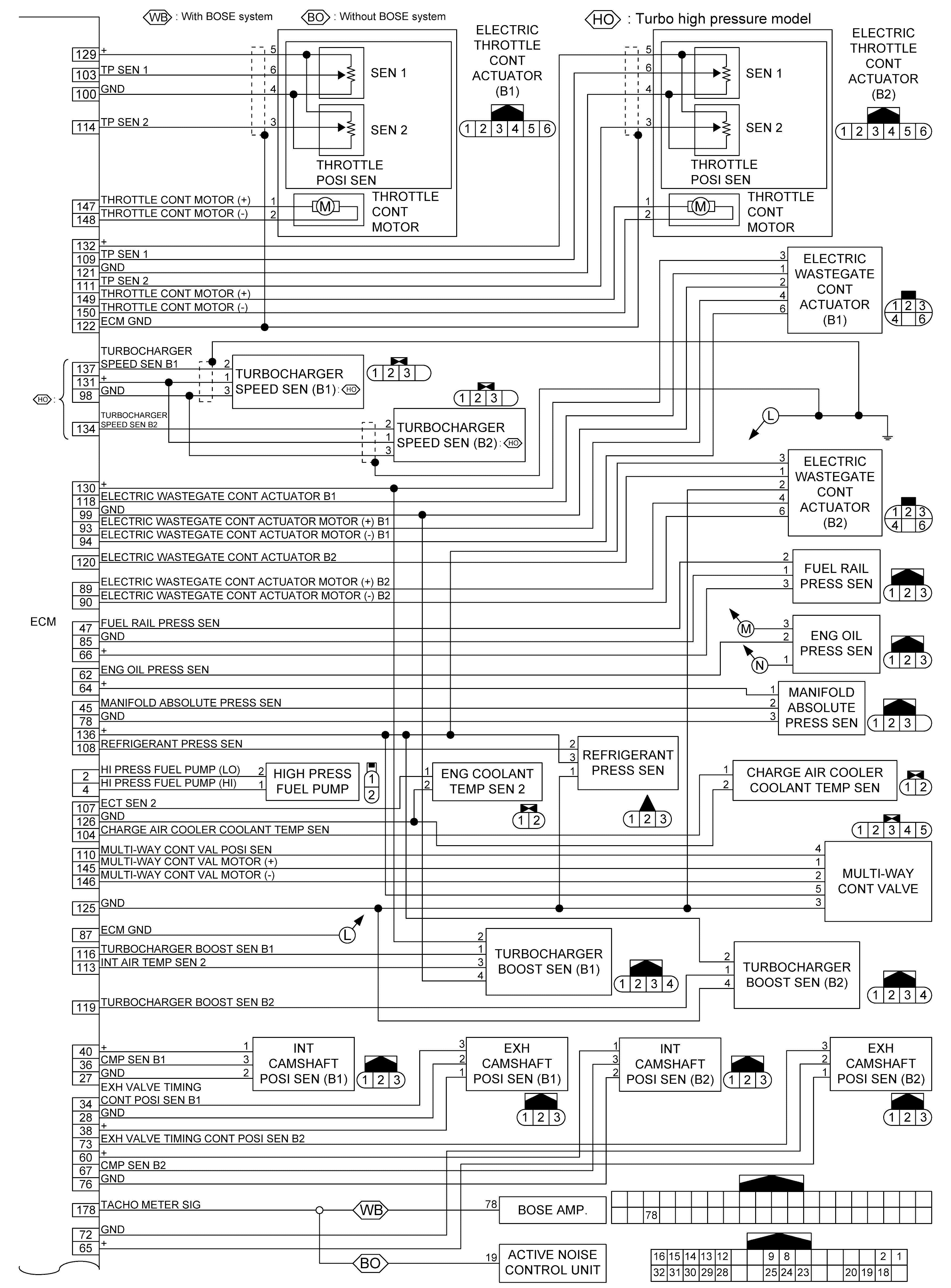

GNSILL0316692Courtesy of NISSAN NORTH AMERICA, INC.

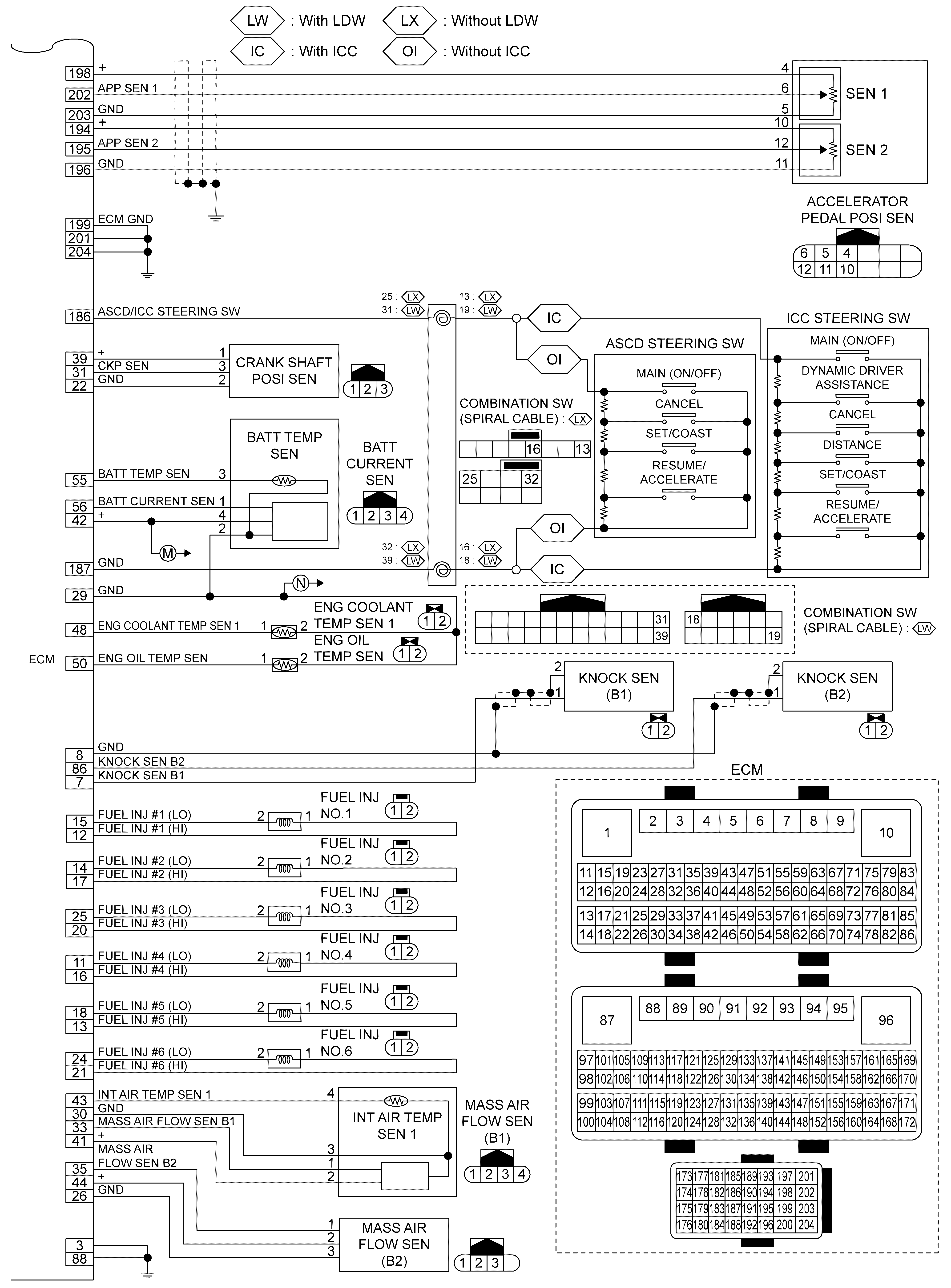

GNSILL0316693Courtesy of NISSAN NORTH AMERICA, INC.
