Turbo High Pressure Models

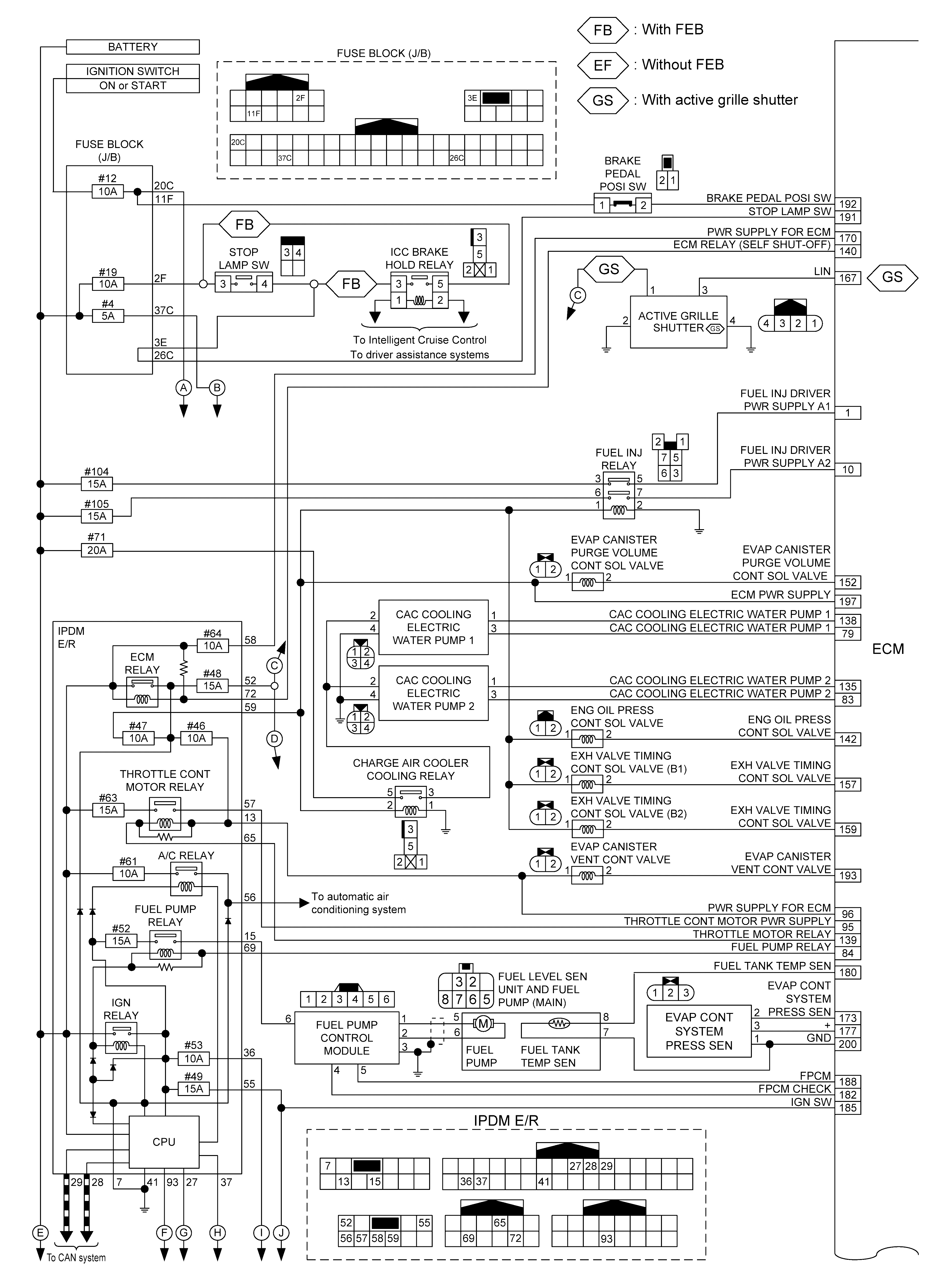

GNSILL0341031Courtesy of NISSAN NORTH AMERICA, INC.
GNSILL0319019Courtesy of NISSAN NORTH AMERICA, INC.
GNSILL0332994Courtesy of NISSAN NORTH AMERICA, INC.

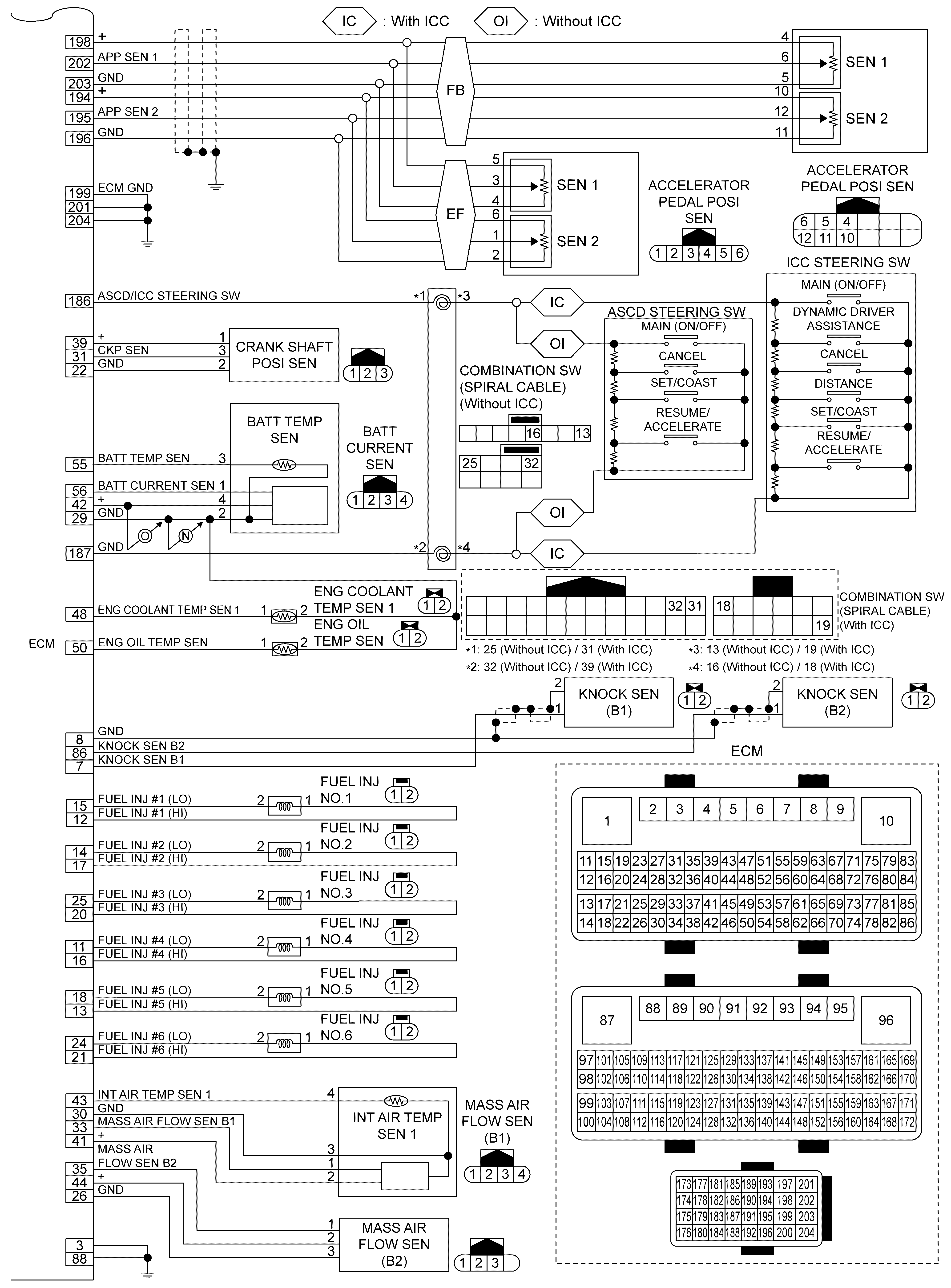

GNSILL0341029Courtesy of NISSAN NORTH AMERICA, INC.
