Turbo Low Pressure Models

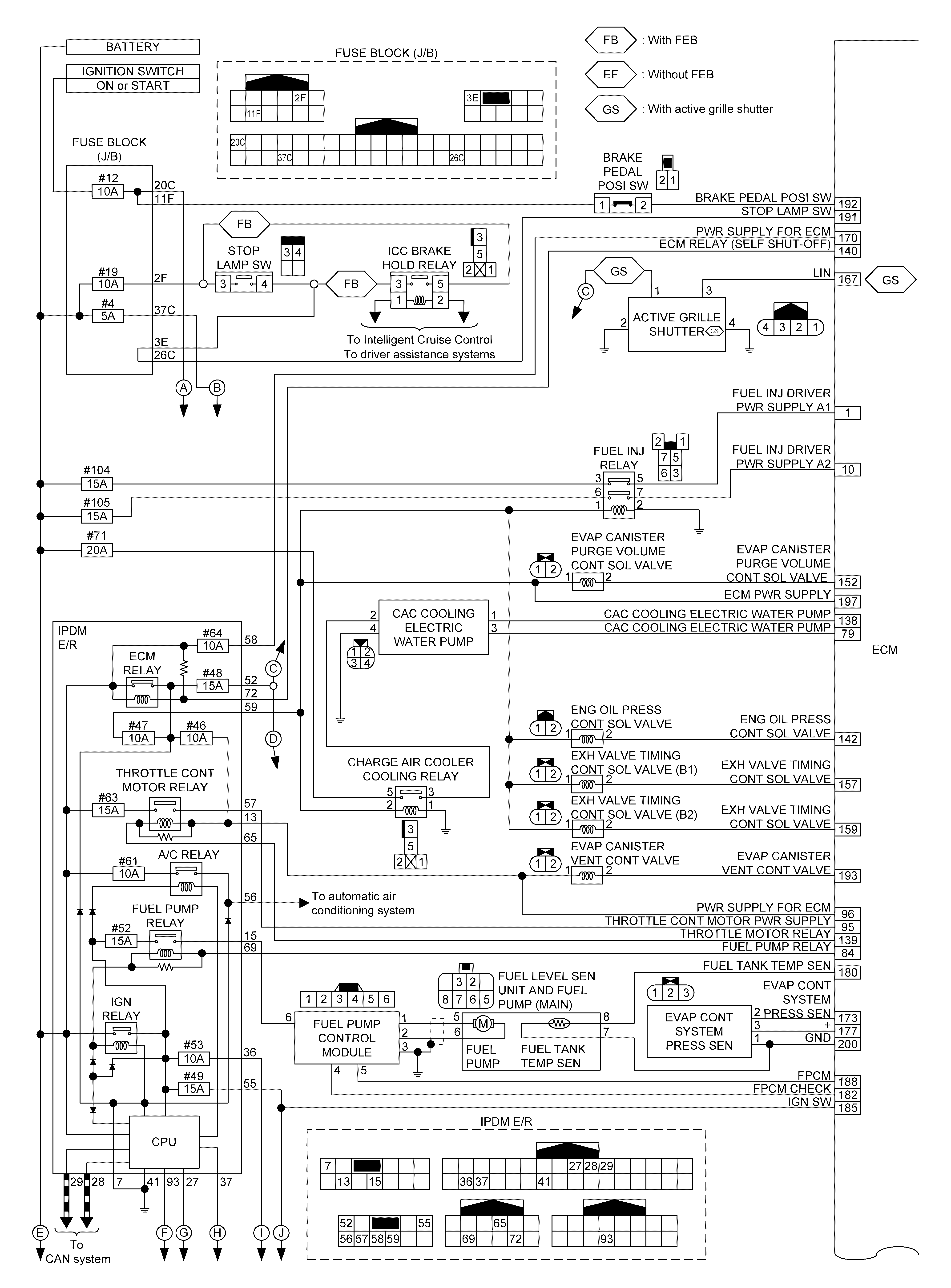

GNSILL0341032Courtesy of NISSAN NORTH AMERICA, INC.
GNSILL0319023Courtesy of NISSAN NORTH AMERICA, INC.
GNSILL0332996Courtesy of NISSAN NORTH AMERICA, INC.

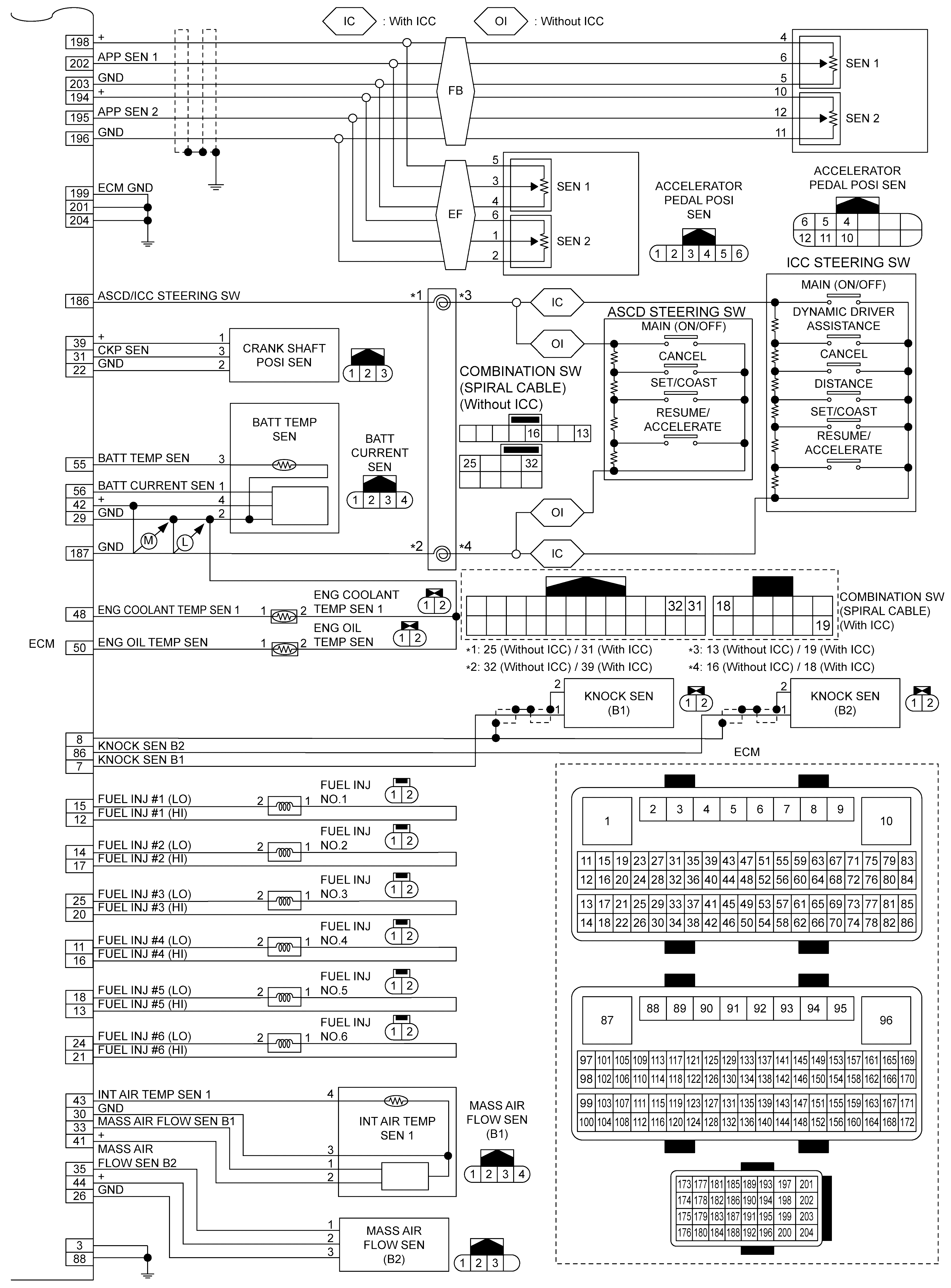

GNSILL0341030Courtesy of NISSAN NORTH AMERICA, INC.
