Engine Control System (2 Of 3)
›
Basic Inspection
›
Diagnosis And Repair Workflow
›
Work Flow
›

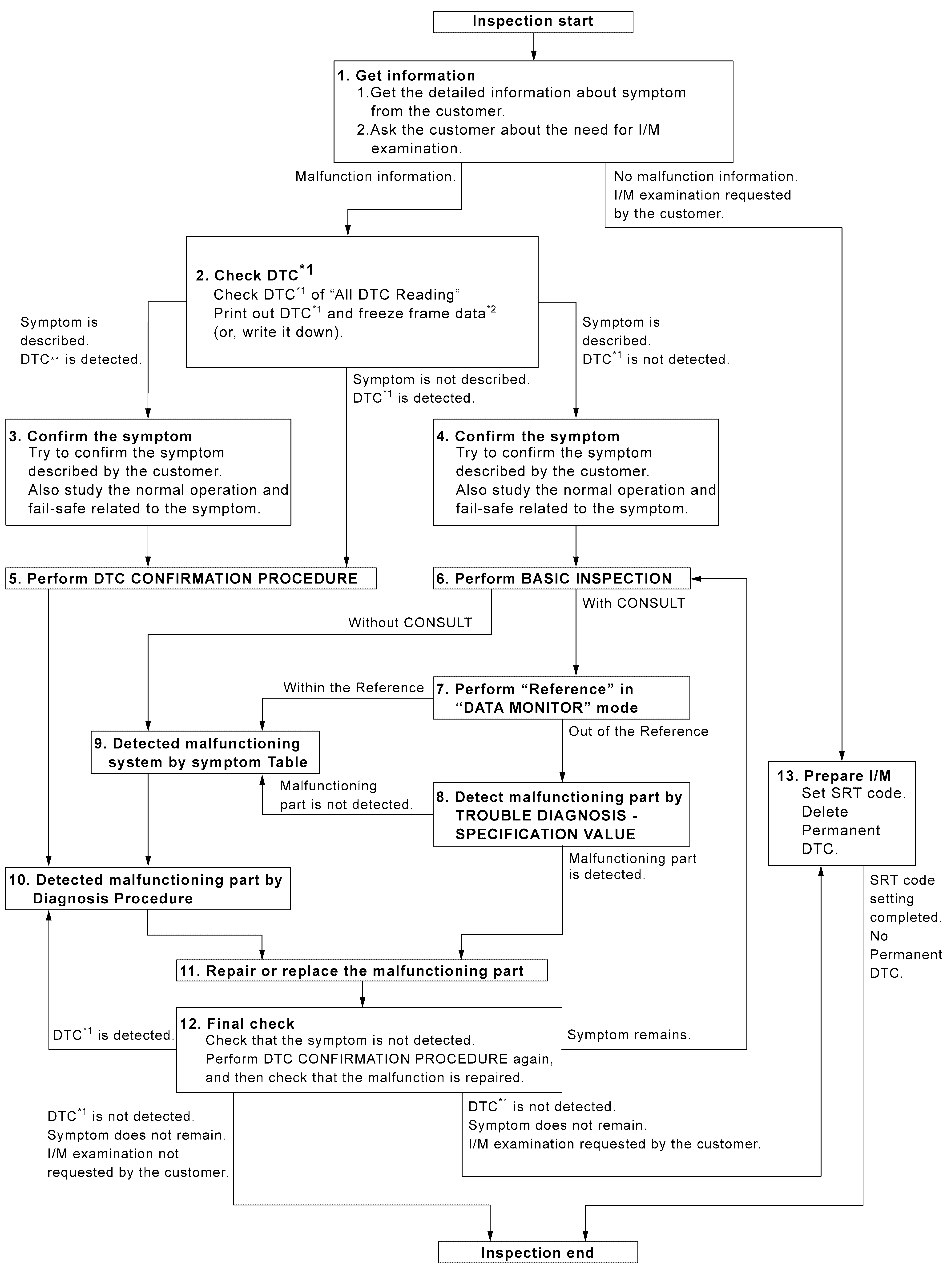

Overall Sequence
Overall Sequence
Courtesy of NISSAN NORTH AMERICA, INC.
*1: Include 1st trip DTC.
*2: Include 1st trip freeze frame data.
Courtesy of NISSAN NORTH AMERICA, INC.
