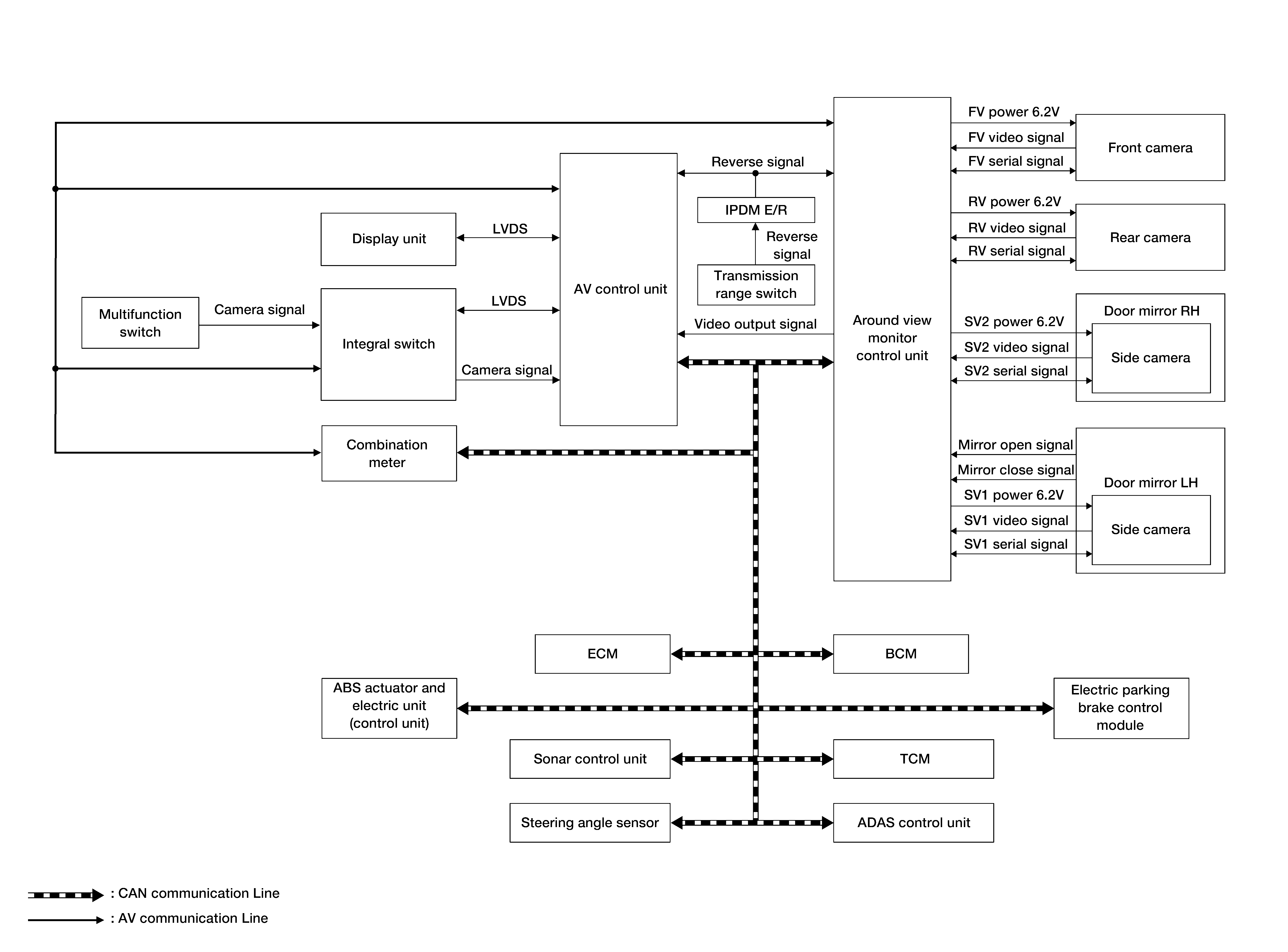

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Around View Monitor Control Unit Input Signal (CAN Communication)

Transmit unit	Signal name
ABS actuator and electric unit (control unit)	Wheel speed signal
ADAS control unit	Warning driver attention signal
AV control unit	Camera switch press signal Camera OFF request signal MOD switch press signal
BCM	Door state signals
Combination meter	Hand brake switch signal Setting change request signal
ECM	Engine status signal
Electric parking brake control module	Parking brake status display signal
Sonar control unit	Image display request signal Status display request signal Detection level state signal Detection distance request signal
Steering angle sensor	Steering angle sensor signal
TCM	Transmission range indication signal
