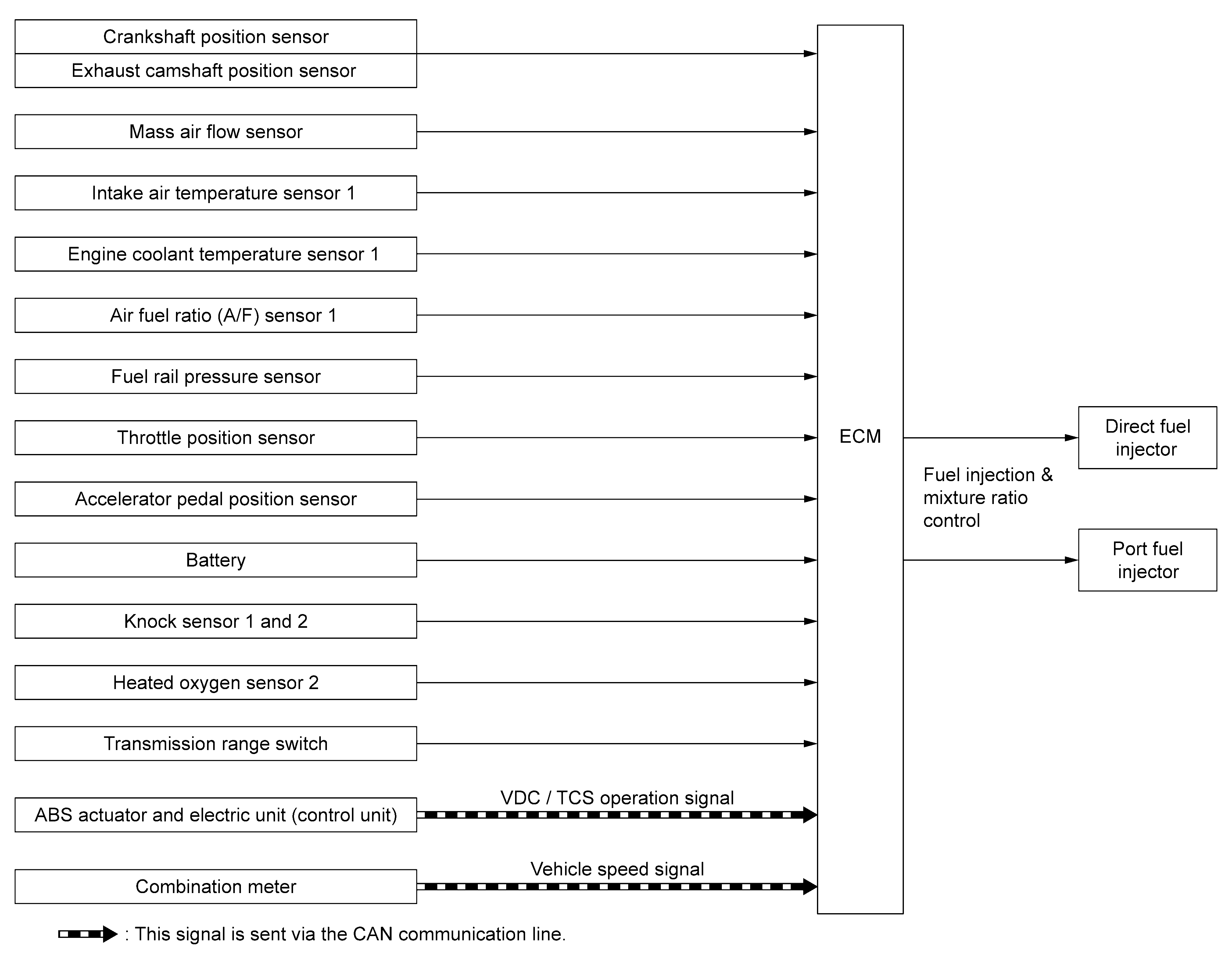

Home › Infiniti › 2022 › QX50 Essential, 4WD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (1 Of 3) › System Description › System › Direct And Port Fuel Injection System › System Description › System Diagram
