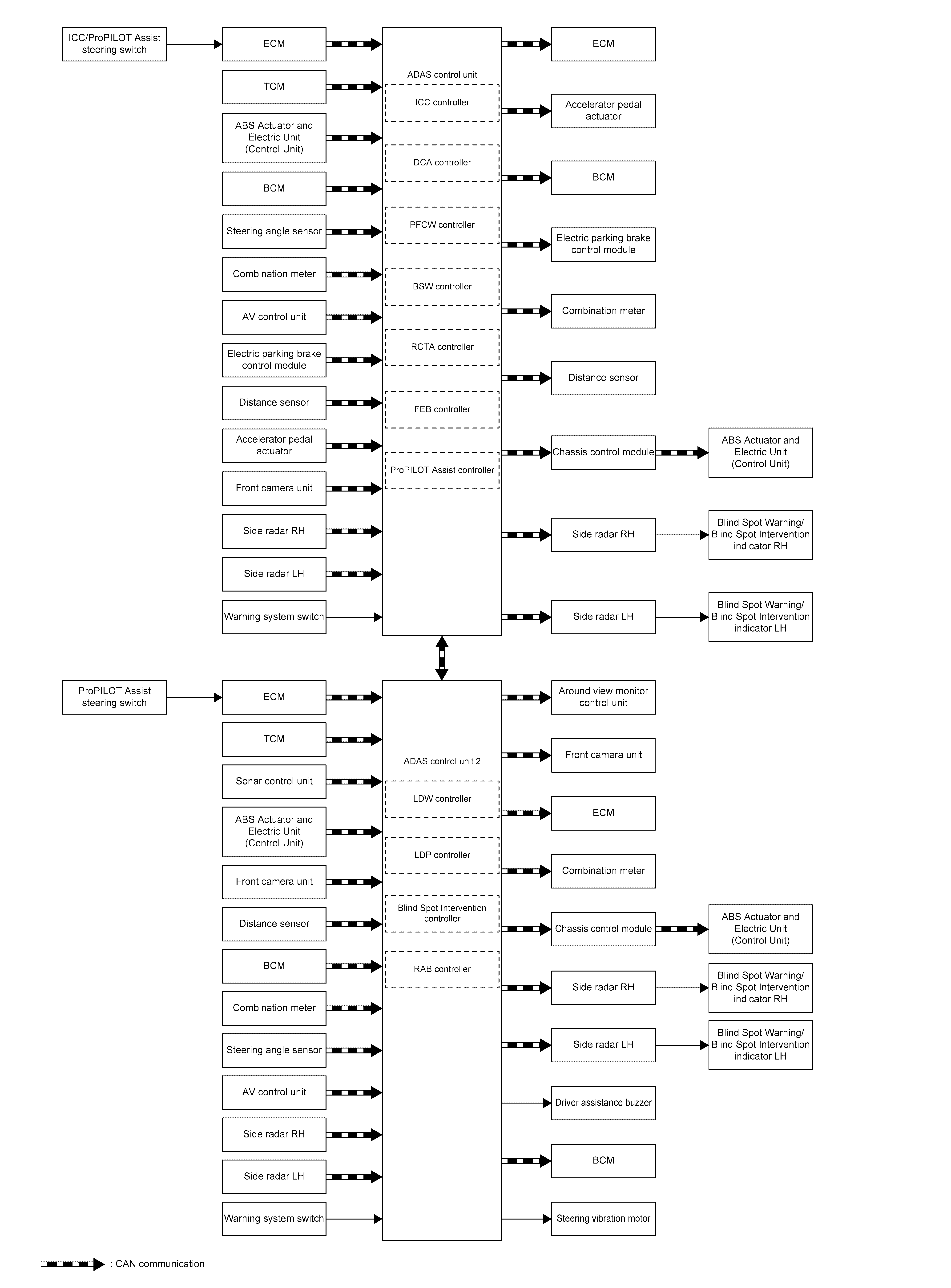

System Diagram
|
Component |
Description |
|
ADAS control unit |
|
|
ADAS control unit 2 |
|
|
ECM |
|
|
TCM |
|
|
BCM |
|
|
ABS Actuator and ElectCIR Unit (Control Unit) |
|
|
Steering angle sensor |
|
|
ElectCIR parking brake control module |
|
|
Combination meter |
|
|
AV control unit |
|
|
Chassis control module |
|
|
Distance sensor |
|
|
Side radar LH, RH |
|
|
Sonar control unit |
|
|
Around view monitor control unit |
|
|
Front camera unit |
|
|
Accelerator pedal actuator |
|
|
ICC steering switch *1 |
|
|
ProPILOT Assist steering switch *2 |
|
|
Driver assistance buzzer |
|
|
Steering vibration motor |
|
|
Blind Spot Warning/Blind Spot Intervention indicator LH, RH |
|
|
Warning system switch |
*1 : Without ProPILOT Assist
*2 : With ProPILOT Assist
