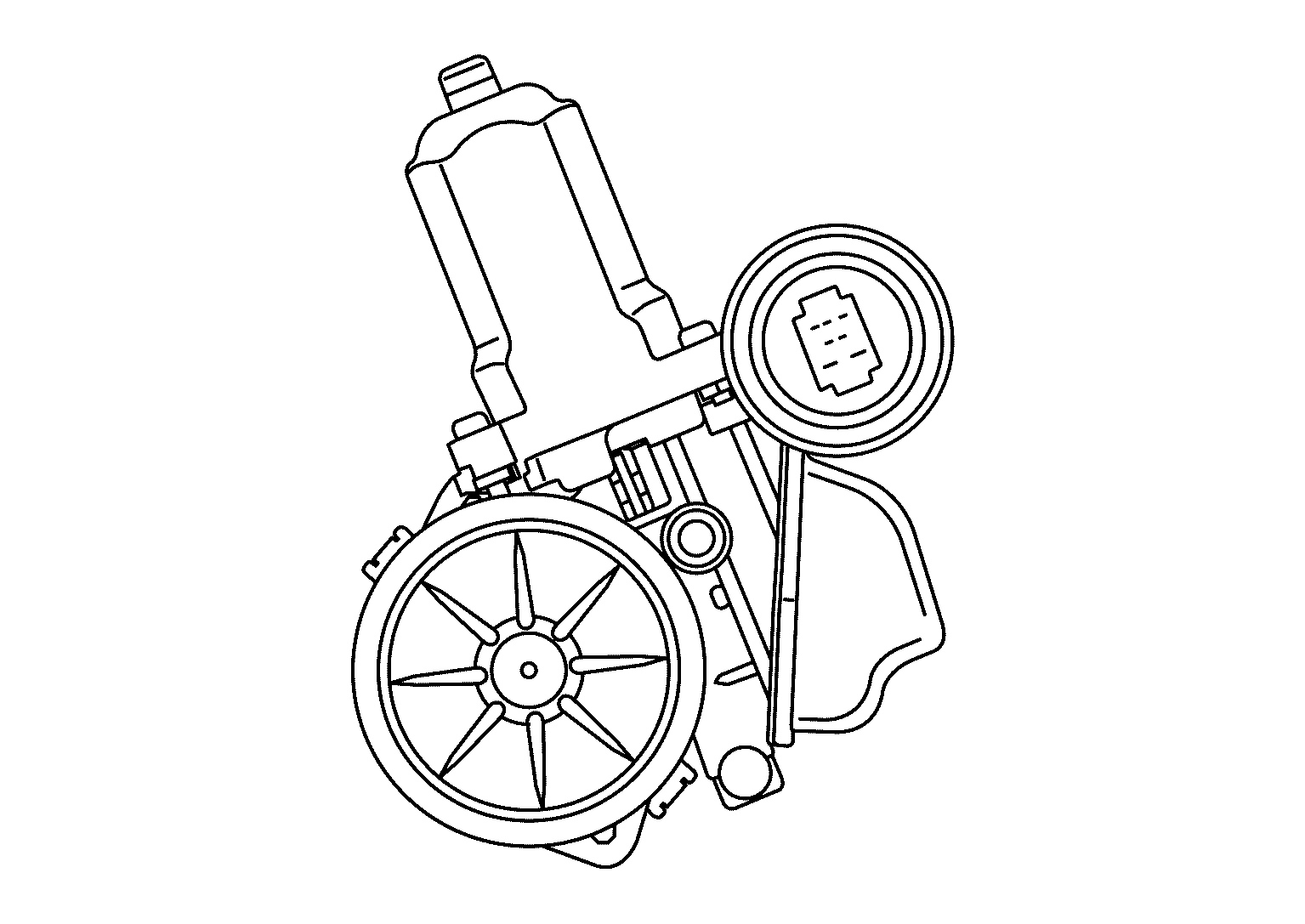

Power Window Motor

Integrates the encoder.

Courtesy of NISSAN NORTH AMERICA, INC.
Starts operation according to signals from each power window switch.
Transmits each power window motor rotation as a pulse signal to each power window switch.
Except the power window motor for driver door, starts operation according to signals from the main power window and door lock/unlock switch or each power window switch.
Door motors are located behind each door finisher.
