Removal and Installation: Removal

  1. Remove front door finisher (RH). Refer to Removal and Installation .

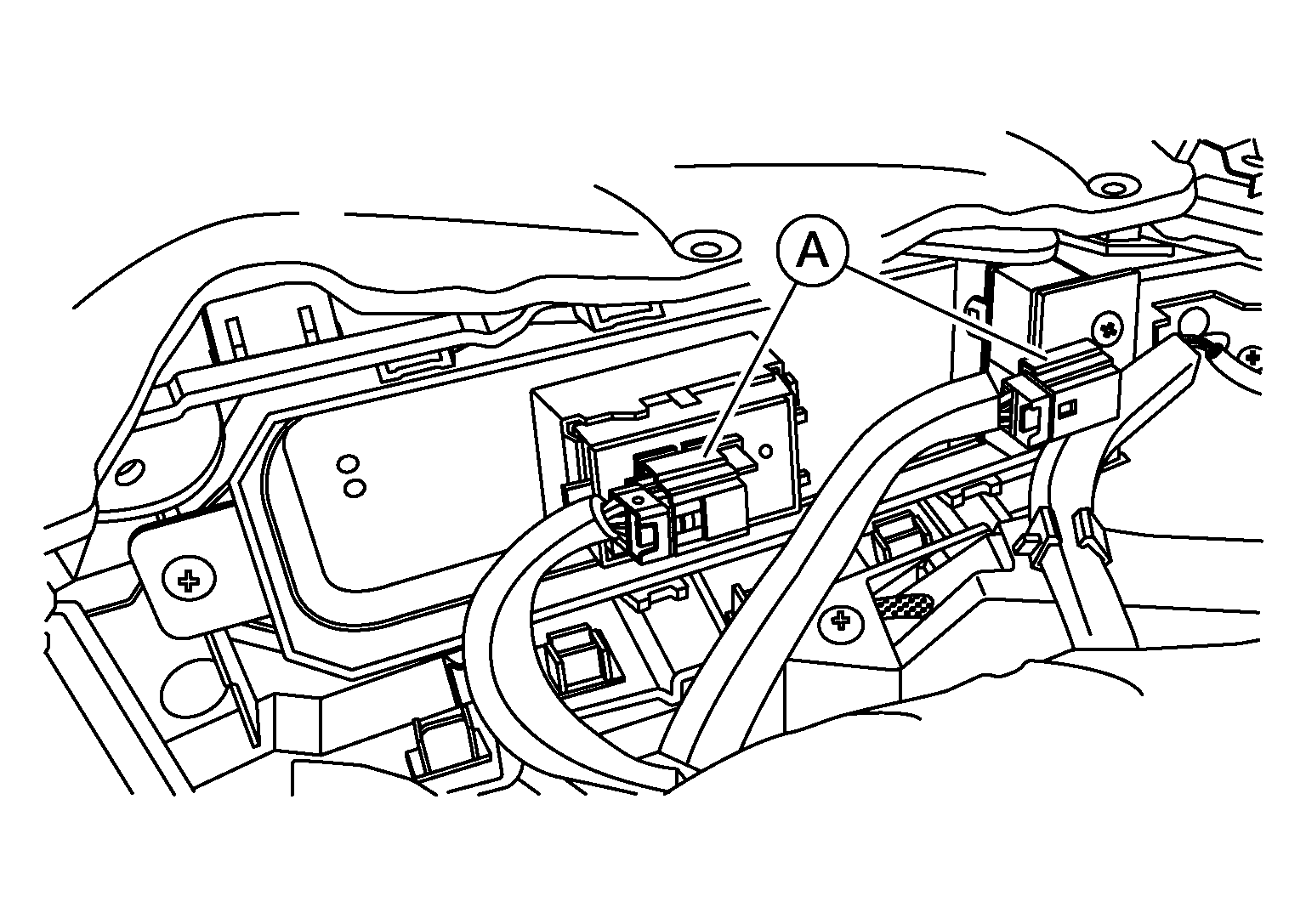

  2. Disconnect harness connectors (A) from the front power window switch RH.
    GNSDB19541Courtesy of NISSAN NORTH AMERICA, INC.

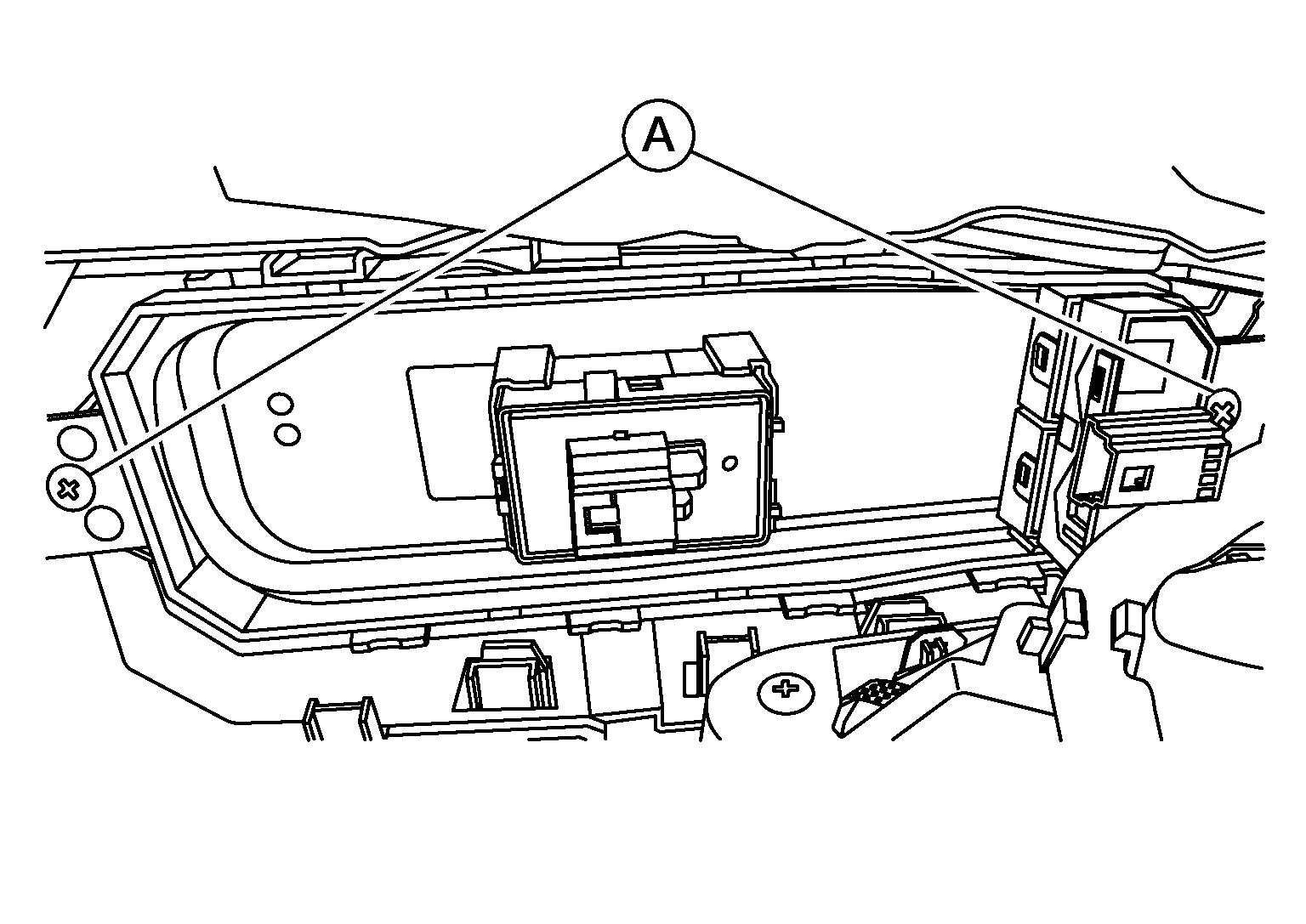

  3. Remove screws (A) and separate switch from front door finisher.
    GNSDB17698Courtesy of NISSAN NORTH AMERICA, INC.
