Front Wheel Sensor
›
Exploded View
Exploded View

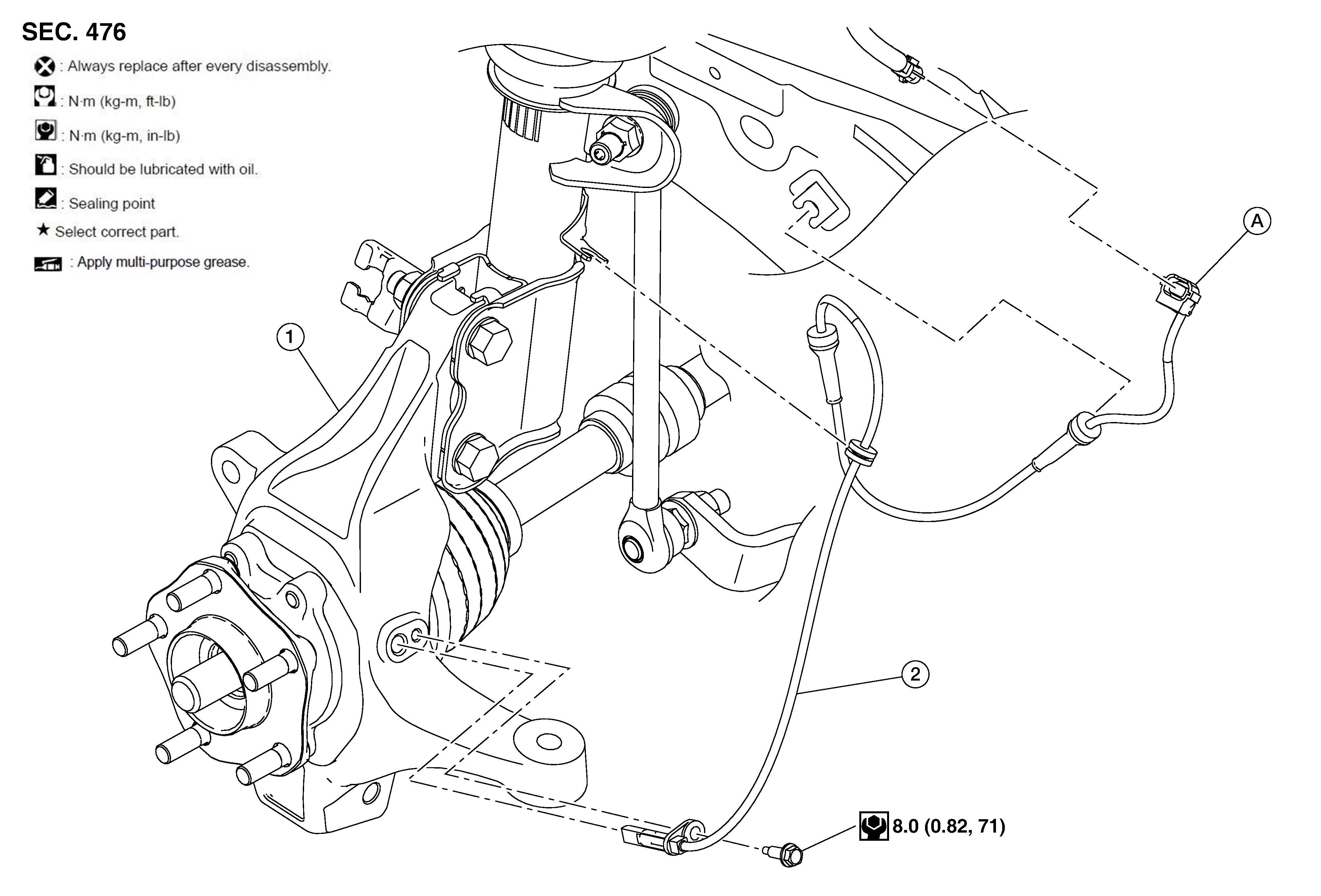

Fig 1: Front Wheel Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering knuckle
2.
Front wheel sensor
A.
Harness connector
Courtesy of NISSAN NORTH AMERICA, INC.
