Exploded View

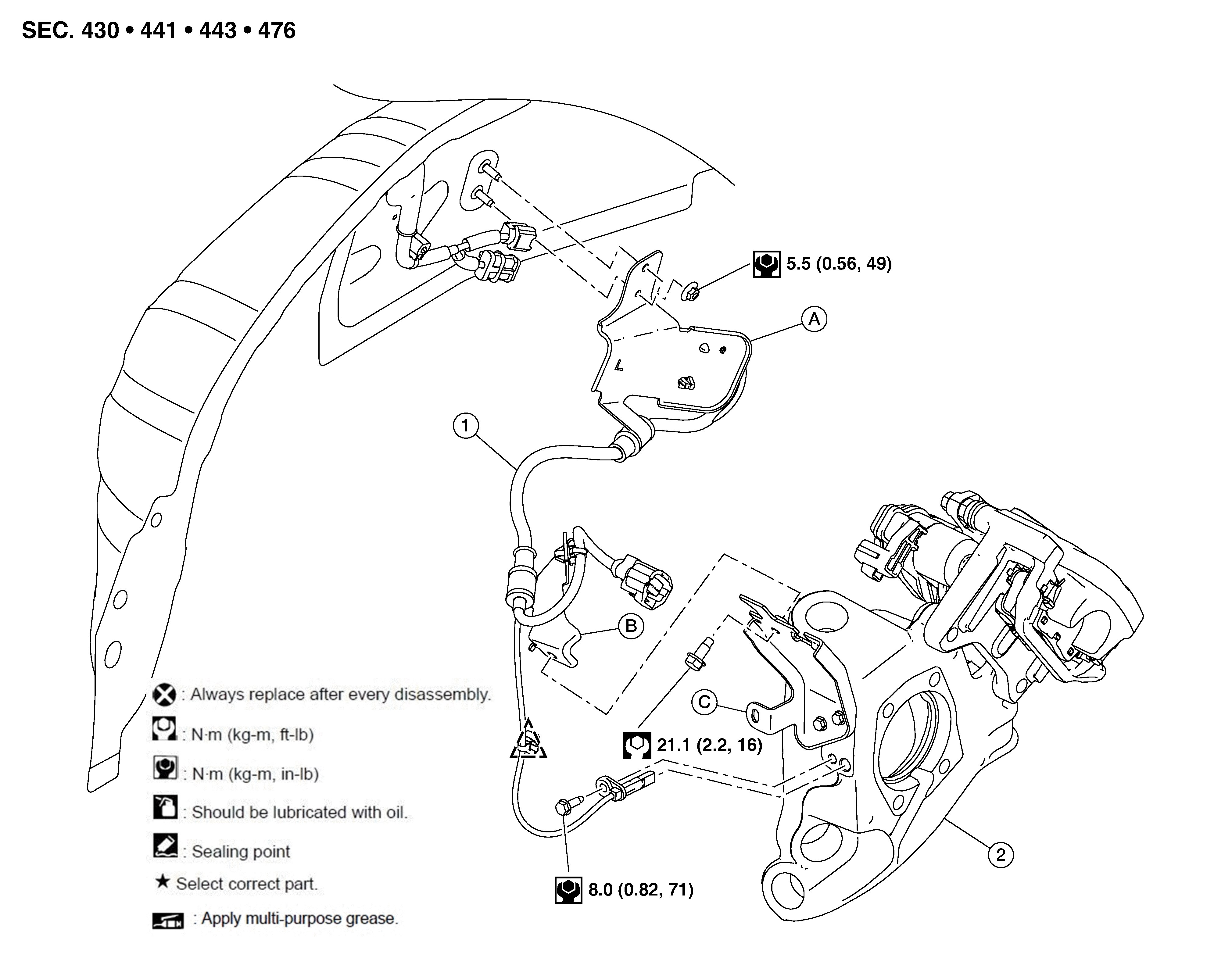

Fig 1: Rear Wheel Sensor With Torque Specifications

GNSDB19087

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear wheel sensor	2.	Rear knuckle	A.	Upper bracket
B.	Middle bracket	C.	Lower bracket		Clip
